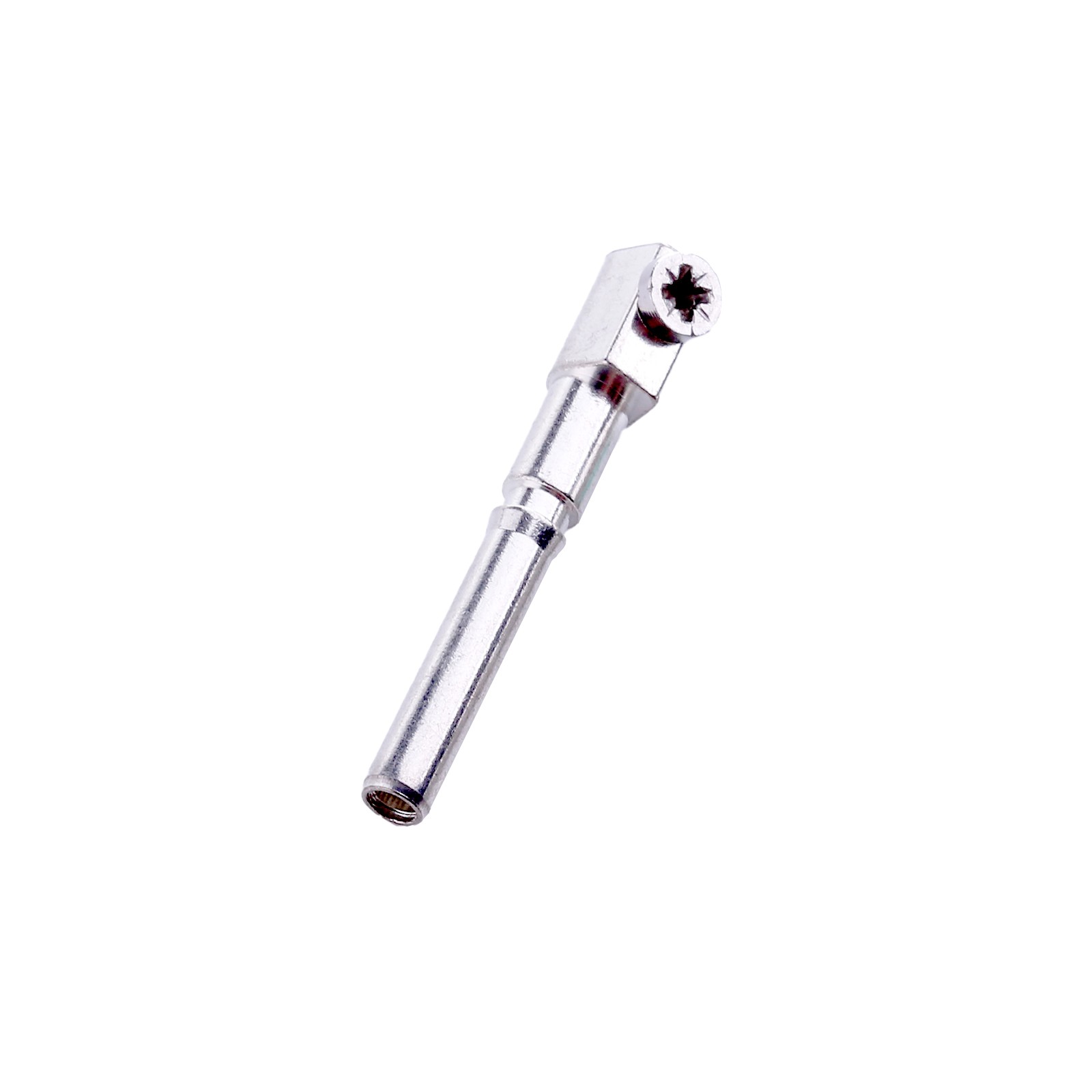

AC male connector for Hoymiles microinverters
Manufacturer: Hoymiles
INDEX: CM02
Product information "AC male connector for Hoymiles microinverters"
A male cable connector is used to connect Hoymiles Microinverters to each other to form a network.
Product’s distinguishing characteristics:
- Number of connectors 2P + PE
- Rated current 25 A (line 4,0 mm² or 12 AWG)
- Rated voltage CSA: 250/350 V AC; TUV: 250 V AC
- Contact resistance ≤1 mΩ
- Breakdown voltage 4000 V AC
- Overvoltage category III
- The degree of pollution 2 (closed state)
- Protection class IP68 (1,5 m, 24 h)
- Fire resistance assessment UL94-V0
- Insertion and extraction force 10 ～ 50 N (no lock)
- Ambient temperature -40 ℃～+ 85 ℃
Wiring parameters:
- Wire size 2,5 / 4,0 mm² lub 14 / 12 AWG
- Outer cable diameter 10 - 13 mm
- Locking system lock (the force of separation ≥ 80 N)
General features:
| Dimensions WxHxD [mm]: | 85 x 35 x 35 |
|---|---|
| Dimensions [mm]: | 35.0 x 90.0 x 35.0 |
Electrical characteristics:
| Max. voltage [V]: | 350 |
|---|---|
| Max. current [A]: | 25 |
