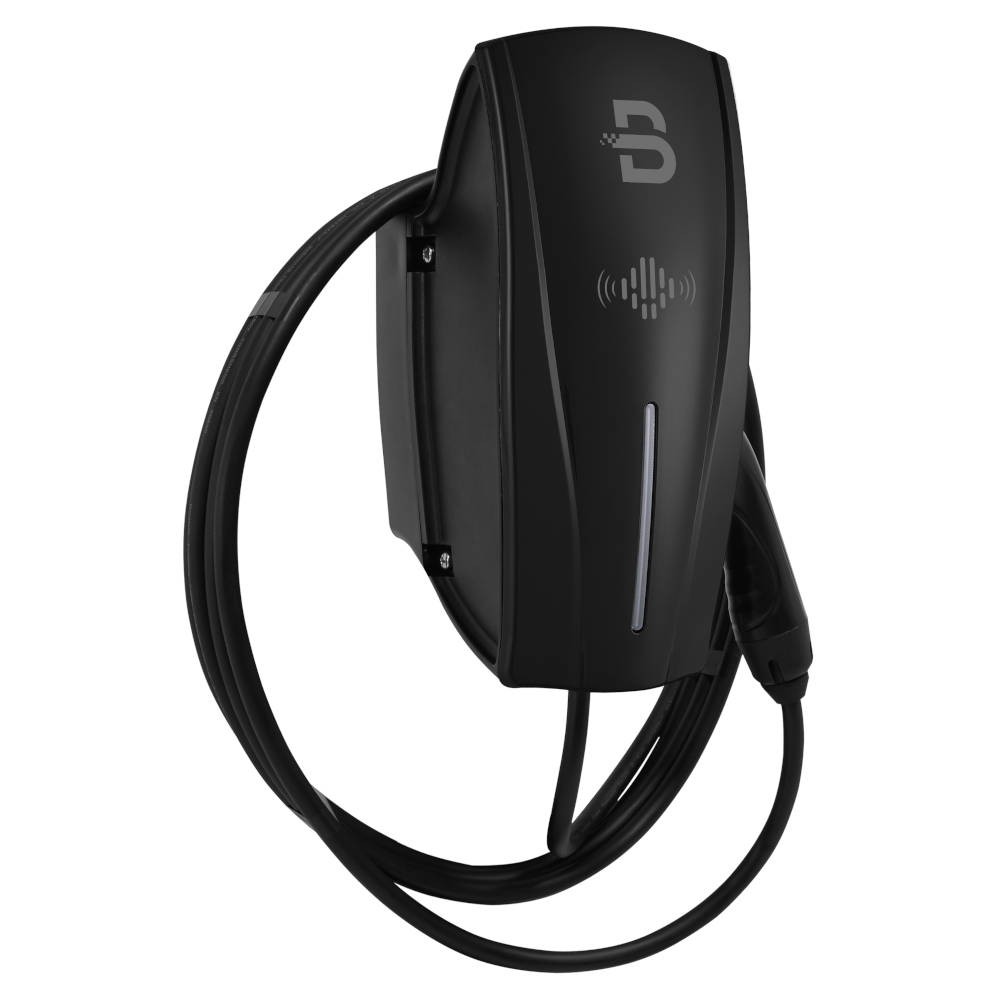

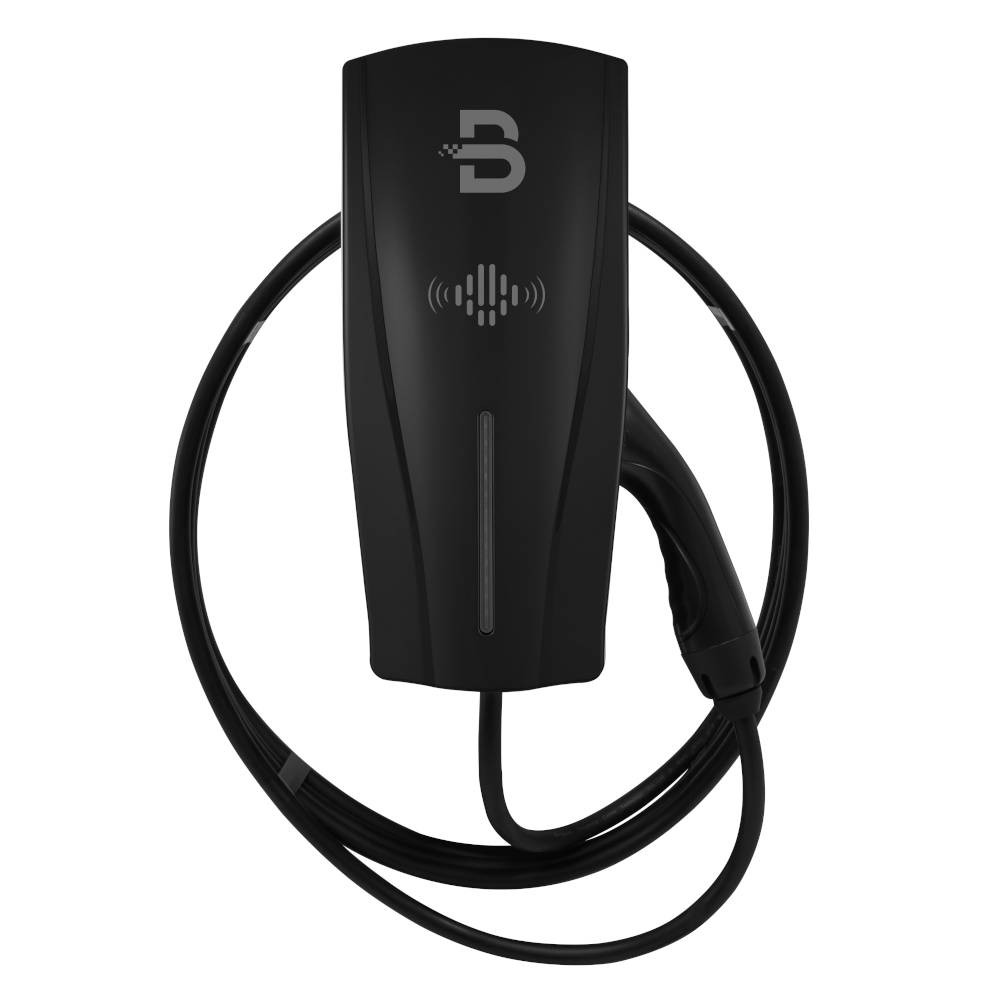

Product information "Beny EV 3F 32A IP65 three-phase charger"
The Beny BCP-AT2N-L is a three-phase charger for electric cars designed in accordance with IEC 61851-21-2, featuring IP65 protection rating, which means it can be wall-mounted inside buildings as well as outside. The charger comes equipped with a type 2 plug compliant with IEC 62196-2, which makes it compatible with all electric vehicles. Its power is adjustable from 6 do 32 A (4 kW to 22 kW) and thanks to the built-in RFID card reader, it can automatically begin charging after connecting to the vehicle.
Product features:
- OCPP1.6-J charging protocol
- Type 2 plug compliant with IEC 62196-2, compatible with all electric vehicles
- RFID system, starting charging with a contactless card
- Adjustable output power of the charger from 6 A to 32 A
- Patented lP65/IP55 housing for use indoors and outdoors
- Operating temperature range: -25℃ ~ +55℃
- Protection against excessive heat
- Built-in overcurrent protection
- App-controlled operation
Electrical characteristics:
| Maximum charging power [W]: | 22080 |
|---|---|
| Feed-in phases: | 3 |
General features:
| Plug type: | Typ 2 |
|---|---|
| Dimensions WxHxD [mm]: | 278 x 360 x 152 |
