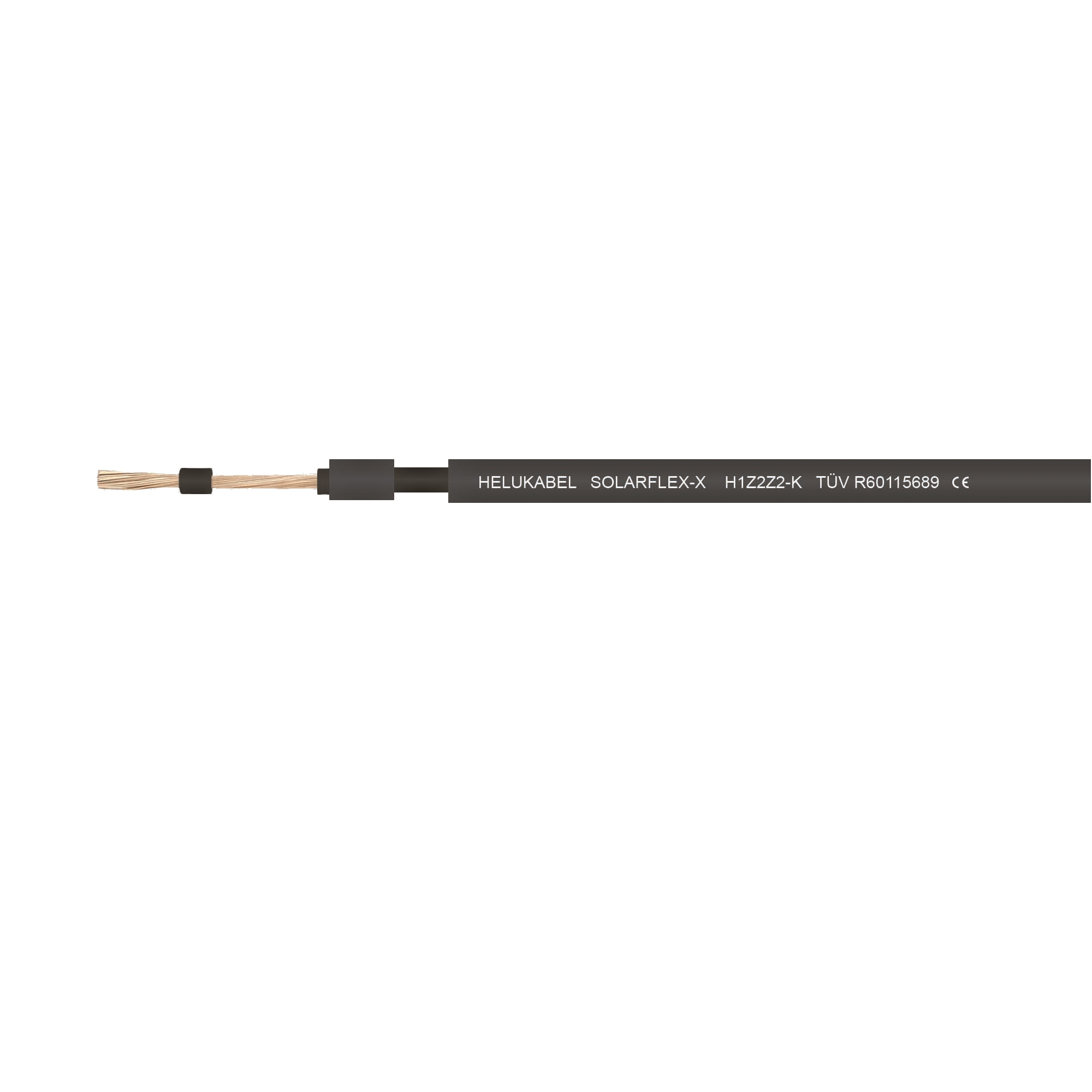

Black solar cable 6 mm2 -100 m
Manufacturer: Helukabel
INDEX: 713531.K
The 6 mm2 solar cable is used in photovoltaic installations to connect individual solar panels. Conductor cross-sectional area: 6 mm2
Temperature range:
-40°C to +90°C
Max. temperature for the conductor +120°C
Distinguishing features of the product:
UV and ozone resistant
Maximum conductor temperature during a short circuit +250°C for 5 seconds
High mechanical properties
Suitable for outdoor and indoor installations
Insulation material: XLPE
Diameter of external insulation: 6,2 mm
NOTE: The price is per 100 running meters.
CE = Product complies with the Low Voltage Directive 2014/35/EU
| Max. voltage [V]: | 1000 |
|---|---|
| Max. current [A]: | 70 |
| Cable color: | Black |
|---|---|
| Cable length [m]: | 100 |
| Cable type: | Solar |
