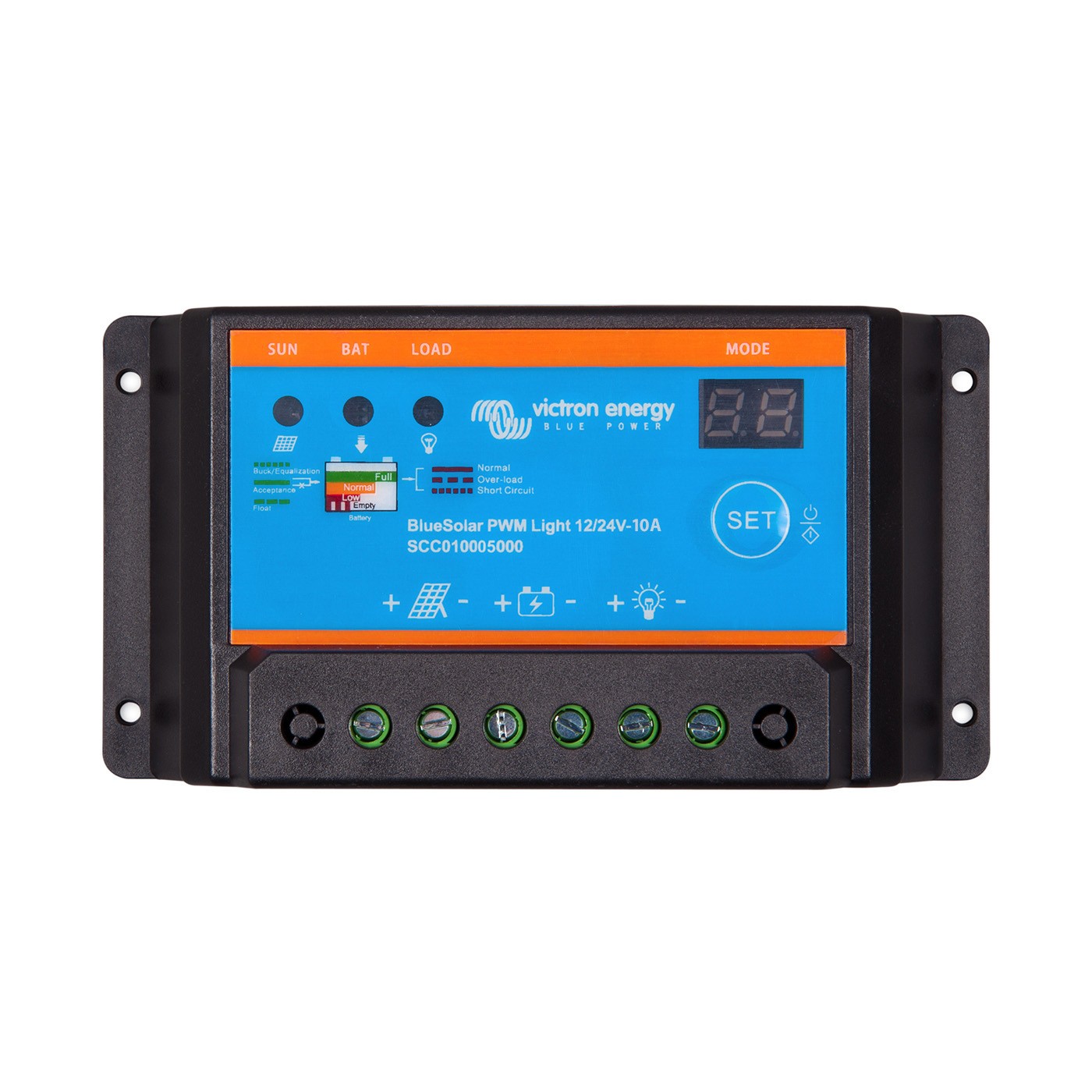

Blue Solar PWM-Light 12/24V-10A Victron Energy solar charge controller
Manufacturer: VICTRON ENERGY
INDEX: SCC040010020
BlueSolar PWM is a charging regulator for cooperation in PV systems and is used in systems with energy banks. After connecting to the system, it is immediately ready to work in the default settings.
Distinguishing features of the product:
Load output with low battery voltage disconnect function
Lighting control function, one timer only
Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting
Three stage battery charging (bulk, absorption, float), not programmable
Load output protected against over load and short circuit
Protected against reverse polarity connection of the solar array and/or battery
| Dimensions WxHxD [mm]: | 140 x 95 x 33.5 |
|---|---|
| Weight [kg]: | 0.18 |
| Dimensions [mm]: | 95.0 x 140.0 x 34.0 |
| Charge voltage, absorption [V]: | 56.8 |
|---|---|
| Charge voltage, float [V]: | 55.2 |
| Low voltage load disconnect [V]: | 44.8 |
| Low voltage load reconnect [V]: | 52.4 |
| Maximum PV voltage [V]: | 100 |
| Nominal battery voltage [V]: | 48 |
| Rated charge current [A]: | 10 |
| Self-consumption [mA]: | 10 |
