Converters

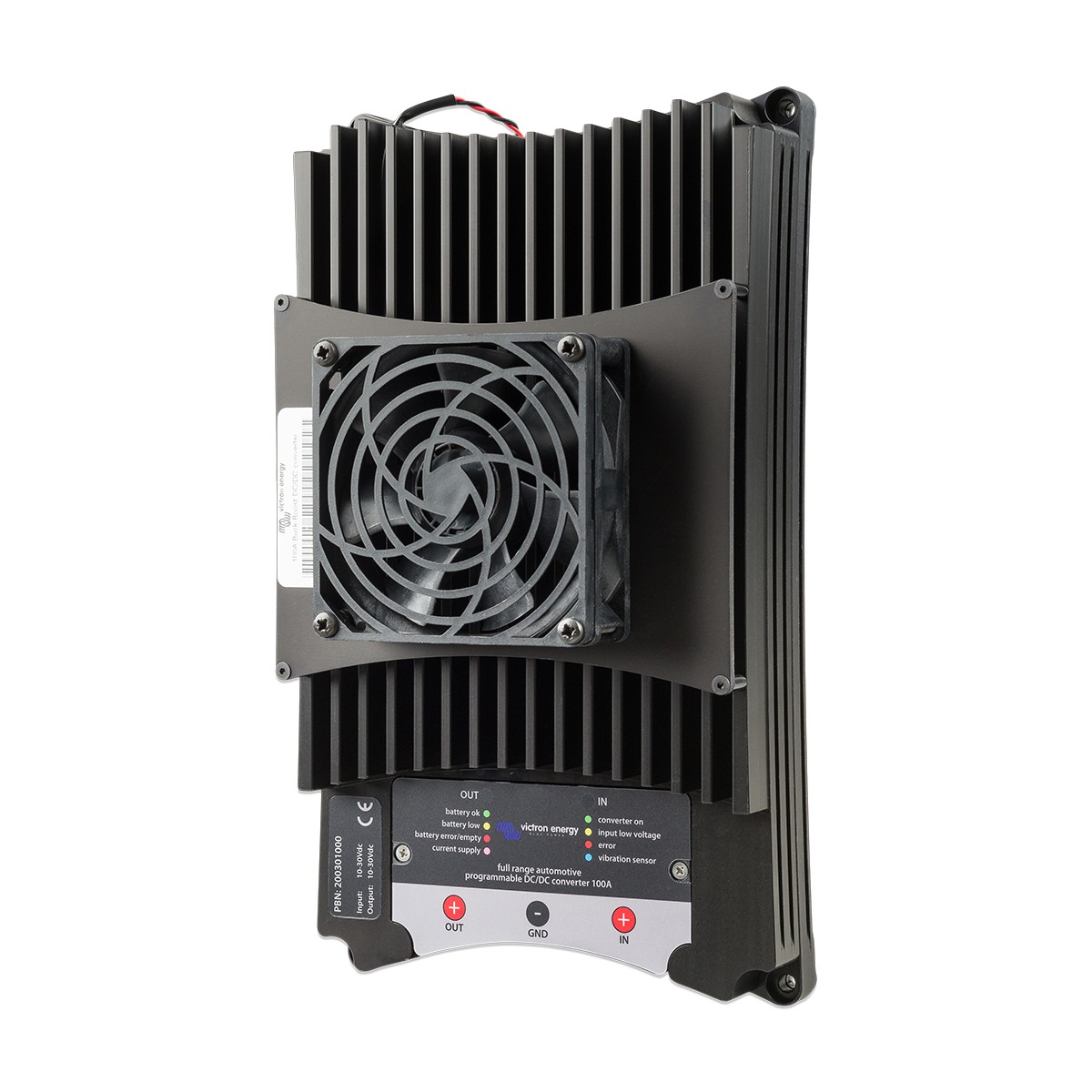

Buck-Boost converter 100 A Victron Energy
Manufacturer: VICTRON ENERGY
INDEX: ORI303100000
The Buck-Boost DC-DC Converter is a DC-DC converter for charging a 12/24 V service battery in vehicles with an intelligent dynamo. Since, when the engine is running, these dynamos (powered by the on-board electronics of Euro 5 and 6 engines) do not always emit the correct charging current, a DC-DC converter is essential for charging the service battery properly.
Engine running’ detection system
Deep discharge of the vehicle's starting battery is avoided by a built-in ‘engine running’ detection system. Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus or (+)15 connection).
Fully programmable
The converter can be fully programmed by means of a simple and user-friendly PC application.
One product for 12 V, 24 V and 12/24 V systems
The converter can be programmed to charge a 12 V or a 24 V auxiliary battery from either a 12 V or a 24 V alternator and starter battery.
| Communication type: | CAN-bus, USB |
|---|---|
| Weight [kg]: | 4.1 |
| Dimensions [mm]: | 288.0 x 162.0 x 50.0 |
| DC output voltage range [V]: | 10 - 30 |
|---|---|
| Input voltage range DC [V]: | 10 - 30 |
| Maximum charge current [A]: | 100 |
