Cable PV 4 mm2 B2ca red - 500 m reel Mgwires
Manufacturer: MGwires
INDEX: H1Z2Z2-K B2CA 4 RD.S
Single-conductor cable with soft tin-plated multi-stranded conductors as per VDE 0295 cl.5 and IEC 60228 cl.5, in insulation and sheath of cross-linked halogen-free plastic. H1Z2Z2-K cables are UV-resistant and highly resistant to various atmospheric conditions. They can be used indoors, in rooftop power plants as well as in extensive ground power plants.
Product features:
- Operating temperature: from -40°C to +90°C (+120°C/20,000 h)
- Permissible short-circuit core temperature: 200°C
- Non-flammable with "zero" emissivity and fume toxicity
- Very good UV resistance
- Low water absorption
- Very good mechanical properties
- Operating voltage: AC: U0/U=1000/1000 V
- DC: U0/U=1500/1500 V
- Voltage test: 6500 V
- Min. placement temperature: -25℃
- Min. bending radius of permanent connection: 4 x Ø
- CPR: Certificates/DoP, flammability class B2ca-s1,d0,a1
- Expected service life 25 years

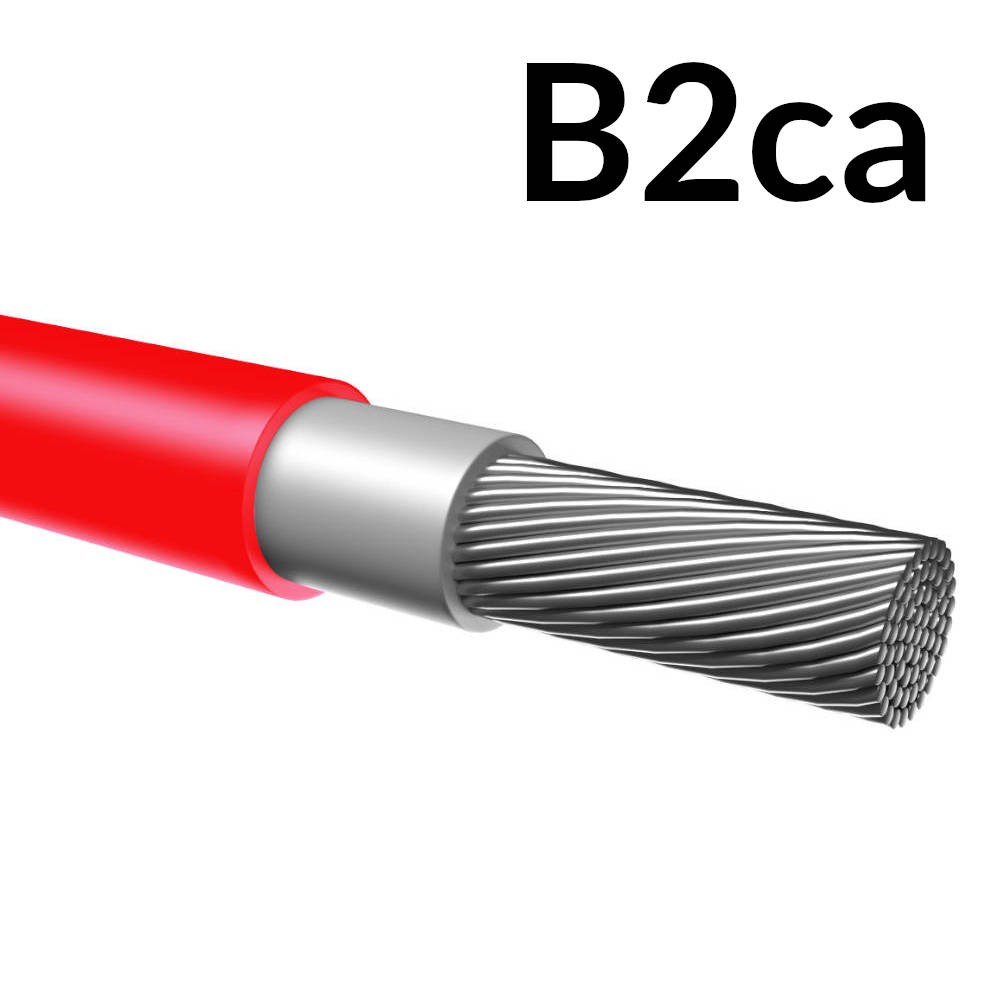

Cable structure:
- Soft tinned copper wire core; class 5 as per PN-EN 60228, DIN VDE 0295
- Insulation made of white cross-linked halogen-free plastic
- Sheathing made of red cross-linked halogen-free plastic
Cables are compliant with EN 50618:2015-03; applies to flexible single-core power cables and wires, with cross-linked insulation and sheath, characterized by low smoke emission and containing no halogens.
| Max. voltage [V]: | 1500 |
|---|---|
| Max. current [A]: | 55 |
| Cable color: | Czerwony |
|---|---|
| Cable length [m]: | 500 |
| Cable type: | Solar |
