Combo FM surge arrester type 1+2 1200 V Dehn
Manufacturer: DEHN
INDEX: 900075

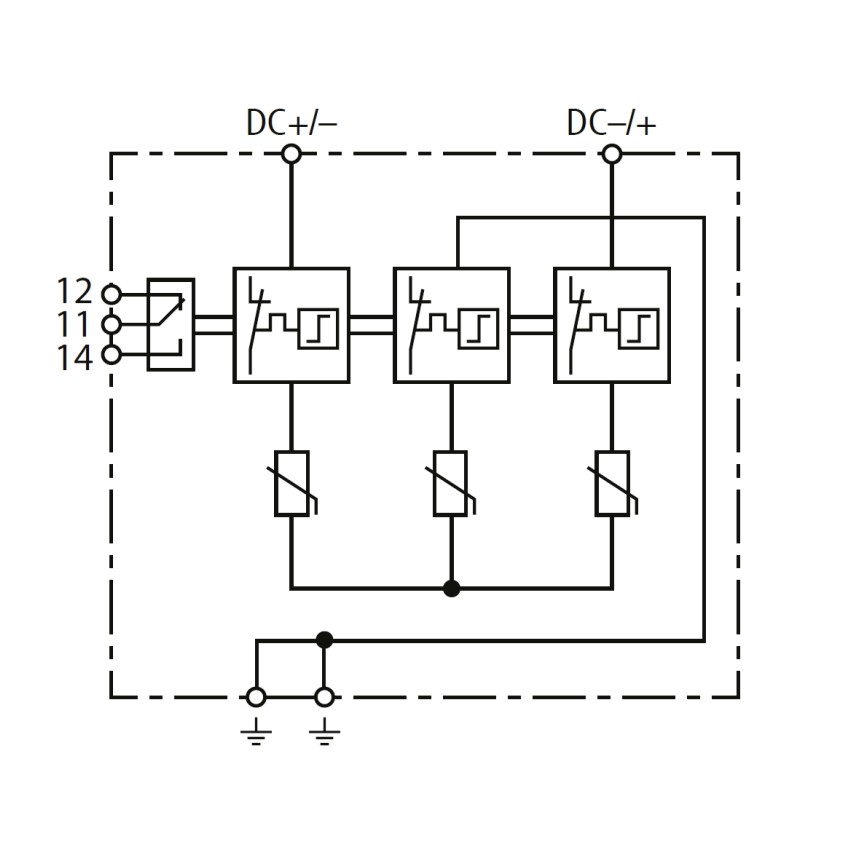

The DEHN Combo 1200 V FM type 1+2 (varistor, with remote status indication) is a two-pole combined surge arrester for universal use in earthed and non-earthed photovoltaic installations up to 1200 V DC.
Distinguishing features of the product:
Type 1 + type 2 surge arrester
Connection system Y to protect the arrester
Compact 4-module wide design
Meets the requirements of PN-EN 50539-11
Compliant with PN-HD 60364-7-712
Remote error indication
Action/damage indicator in the control window
| DC protection type: | DC Surge arrester |
|---|---|
| Max. voltage [V]: | 1200 |

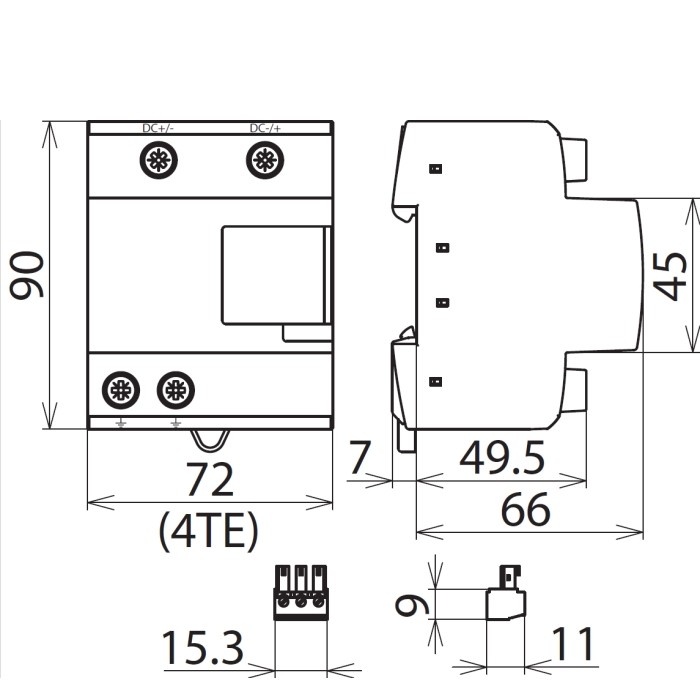

| Dimensions WxHxD [mm]: | 72 x 90 x 73 |
|---|---|
| Width - number of modules: | 4 |
