PV Mounting elements
Double thread screw without adapter m10 x 200 mm
Manufacturer: iONTEC
INDEX: WK.M10X200

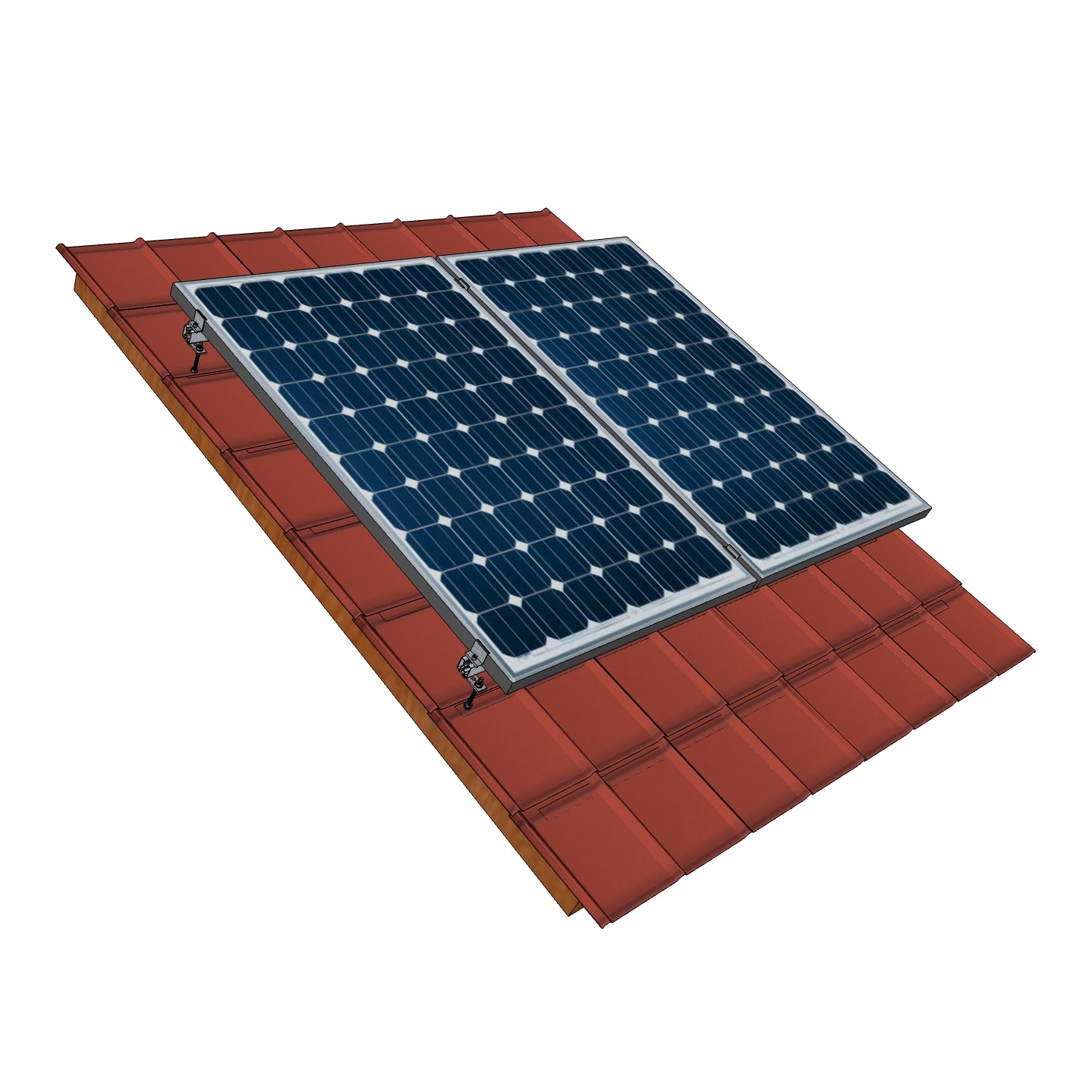

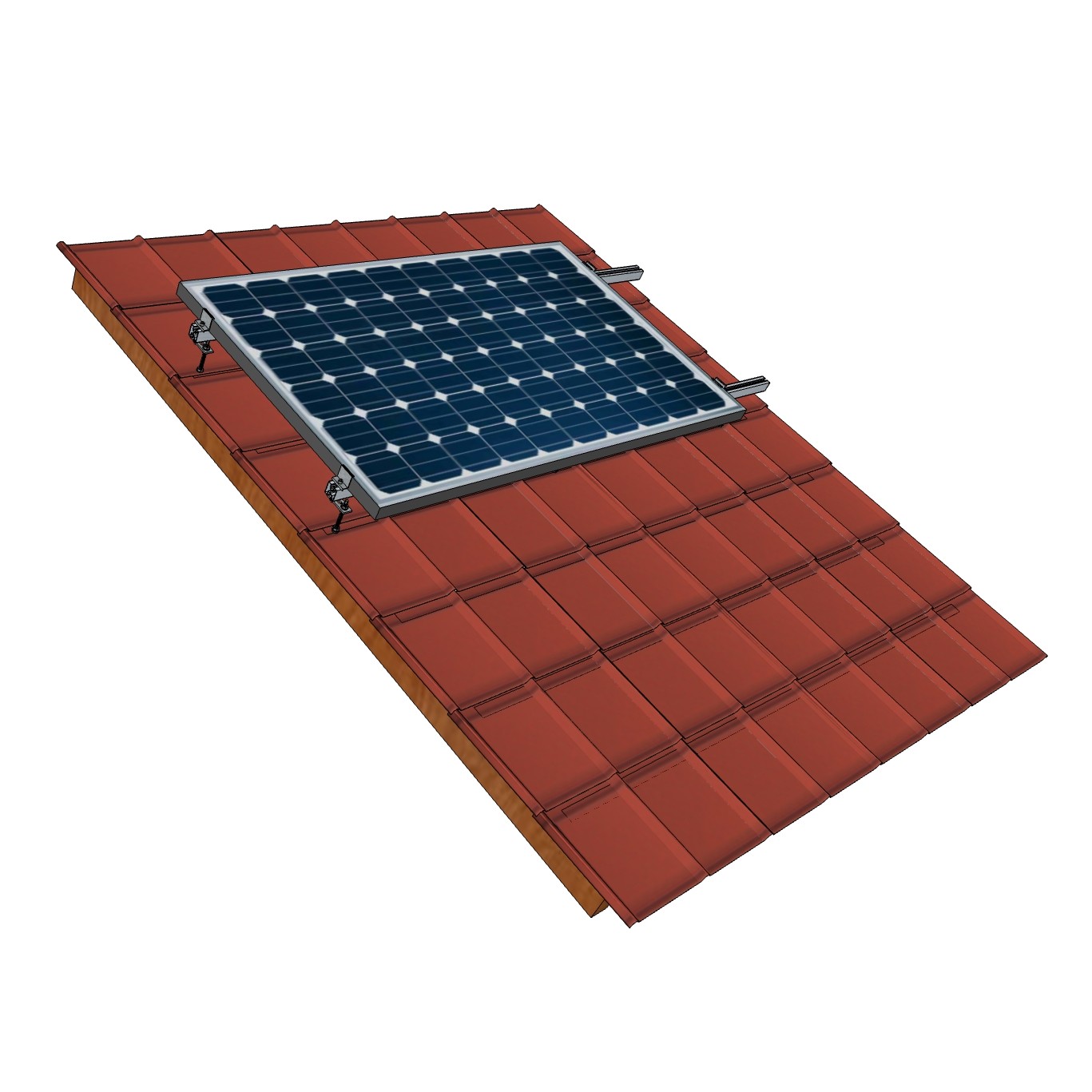

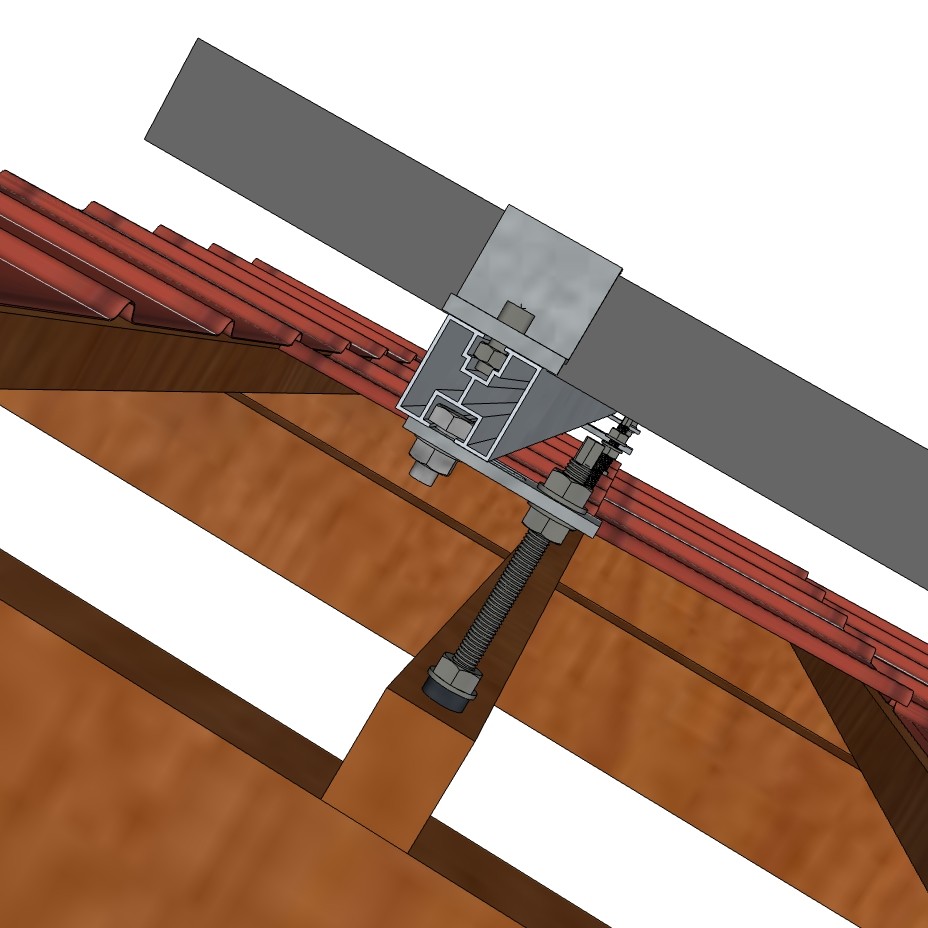

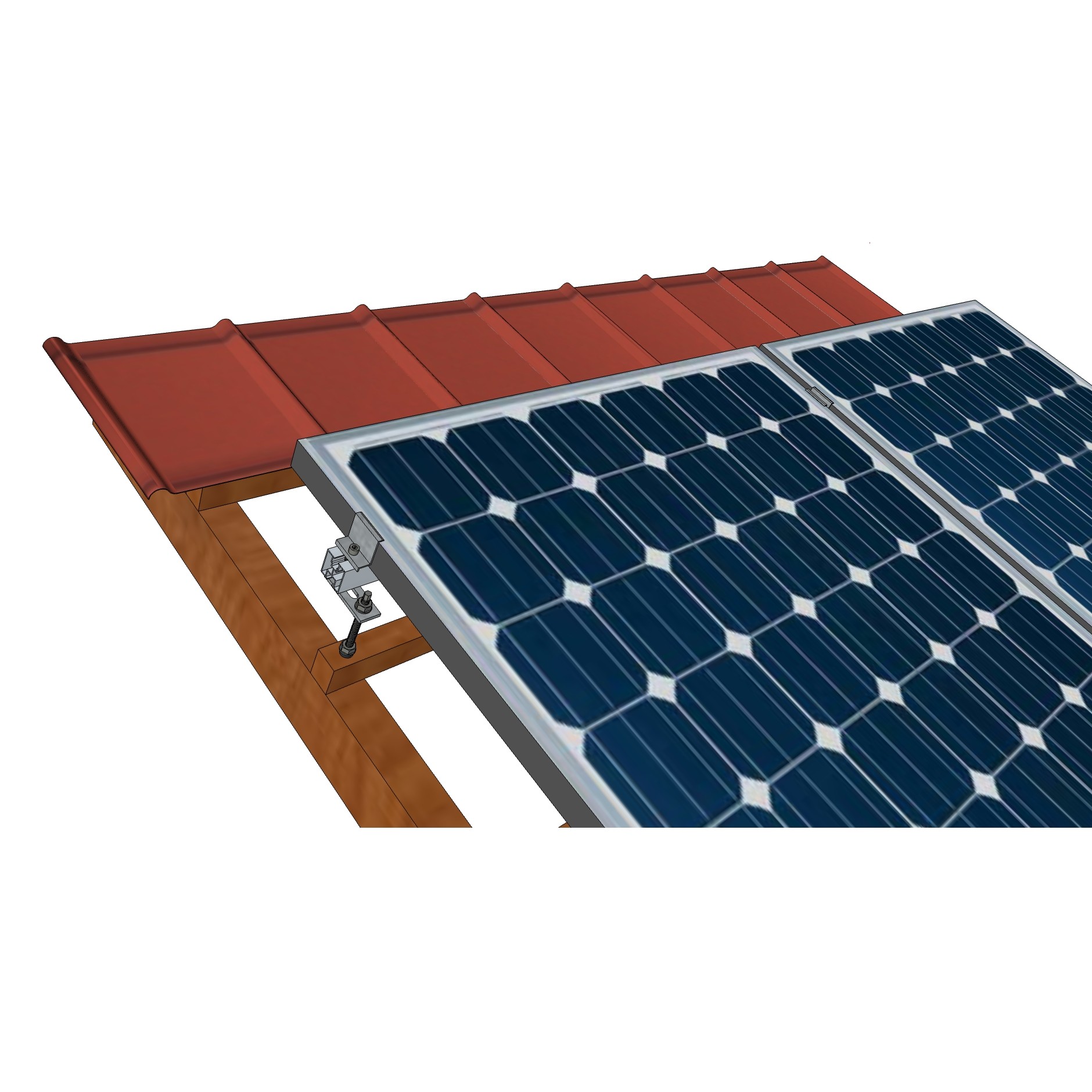

The double-threaded bolt is used for fixing aluminium mounting profiles of photovoltaic panels and solar collector installations on pitched roofs covered with steel tiles, asphalt roofing, or shingles.

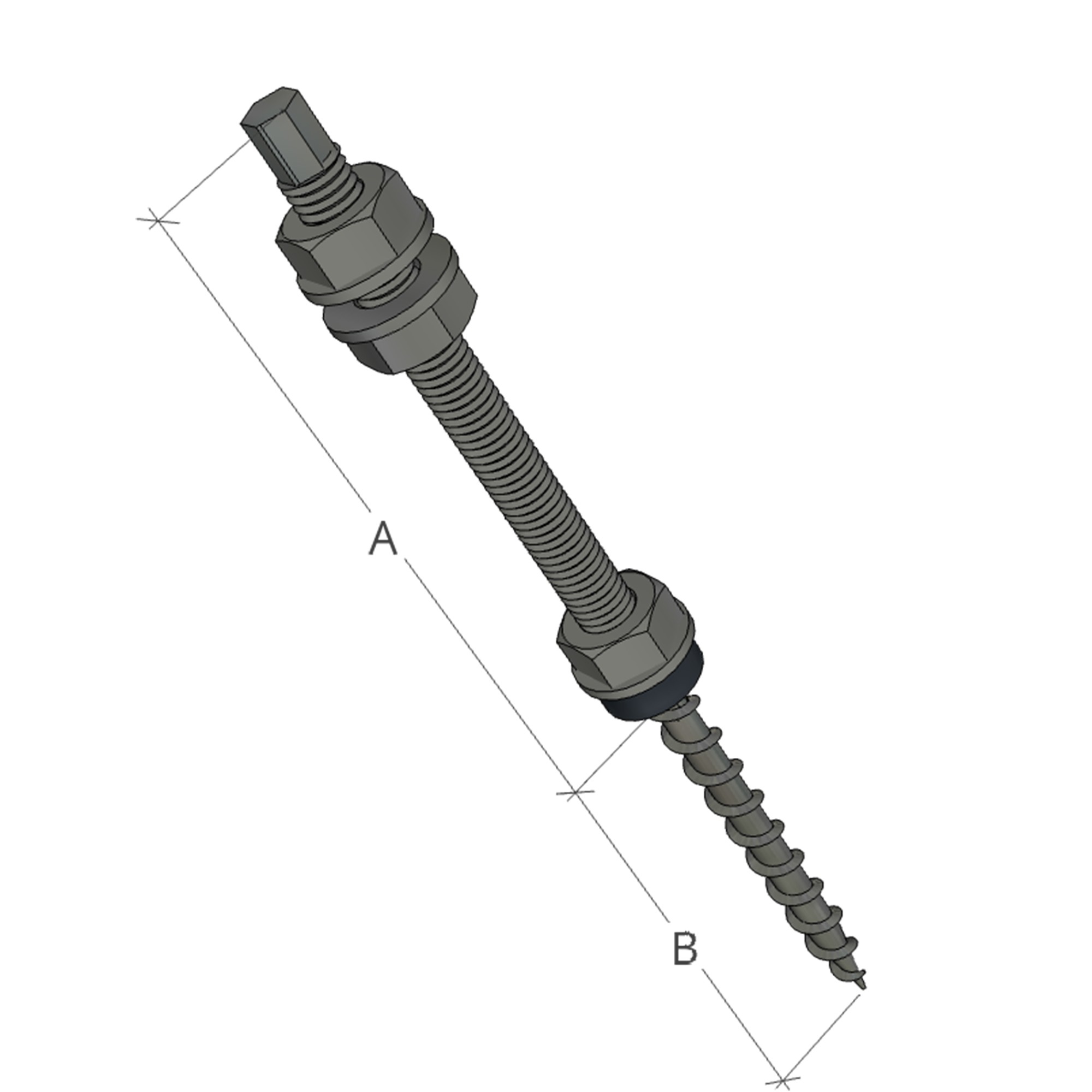

The kit includes: a 200 mm long threaded bolt (dimension “A” in the figure) and a 70 mm long screw (dimension “B” in the figure), a lock nut with gasket, and 2 lock nuts. For a complete set, a mounting adapter with a hole for M10 bolts should be purchased.
- Total thread length: 200 mm (dimension “A” in the figure)
- Bolt thread: M10
- Material: stainless steel
| Construction type: | Steel tile |
|---|---|
| Dimensions WxHxD [mm]: | 30 x 200 x 30 |
| Elements: | Hooks |
| Weight [kg]: | 0.12 |
| Dimensions [mm]: | 24.0 x 200.0 x 24.0 |
