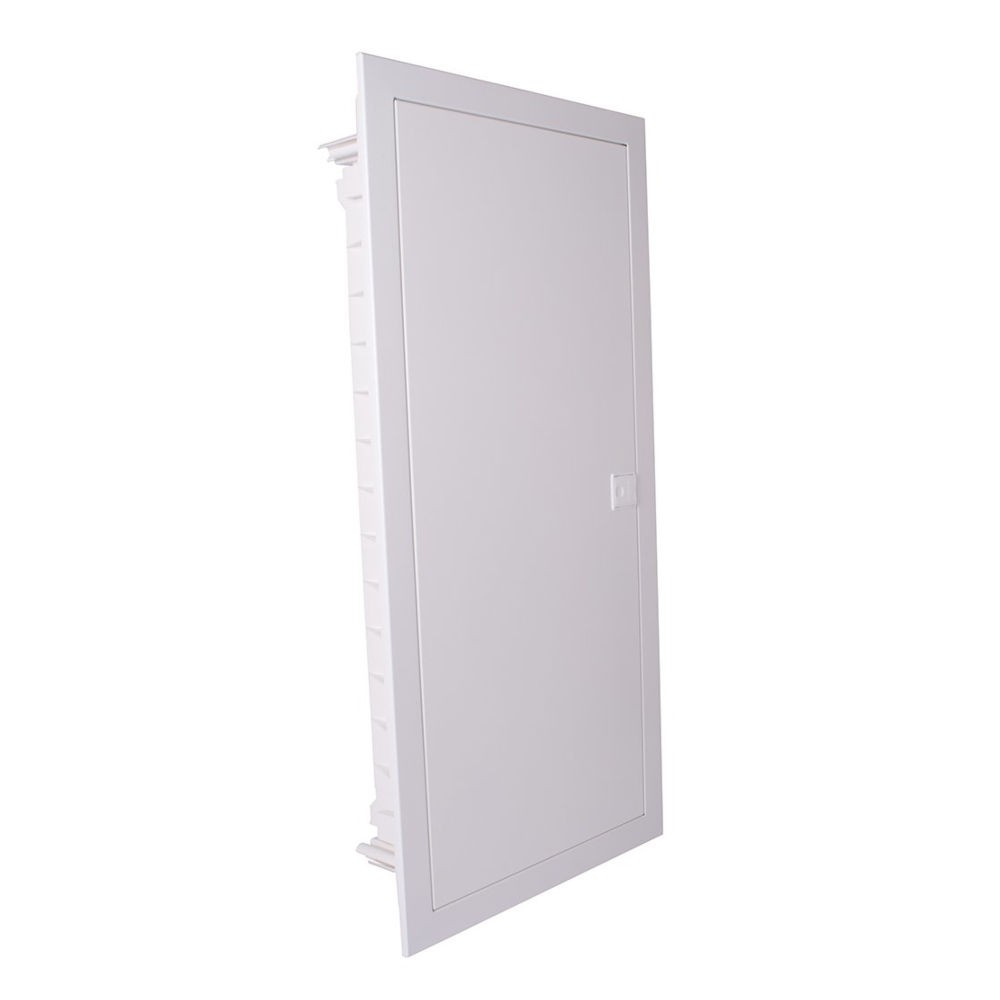

Flush-mounted Consumer Units 24-pole PMF 60 (5x12) Noark
Manufacturer: Noark Electric
INDEX: 107262
Consumer units PMF are intended mainly for domestic applications. Theirs design is suitable for fl ush mounting. Dual fi xing system allows using also for hollow walls. Tested with glow wire test at 850°C. The height-adjustable front metal frame allows to compensate wall surface imperfections.
The units are available in versions from 12 up to 60 modules with 12 (+2) modules per a row. Degree of protection is IP40, degree of protection against mechanical impact IK06.
Scope of delivery consists of enclosure, metal frame with door, mounting frame with device DIN rails, N + PE terminals, sealable front cover with device cutout, cover for empty place, mounting material and instructions.
Features that distinguish the product:
- Flush-mounted consumer units with sheet-steel door PMF
- Tested according to EN 62208
- Rated current up to 63 A
- Degree of protection IP40
- 12 modules per a row, can be extended to 14
- 1 up to 5 rows
- White (RAL 9016) colour of the door
- Easy mounting into hollow walls
- Mounting depth 87 mm only
- Wall box with a relief for mechanical fi xing of cables
| Switchgear type: | Empty |
|---|---|
| Rated current [A]: | 63 |
| Dimensions WxHxD [mm]: | 306 x 799 x 87 |
|---|---|
| Switchboards: | 60 polowa |
