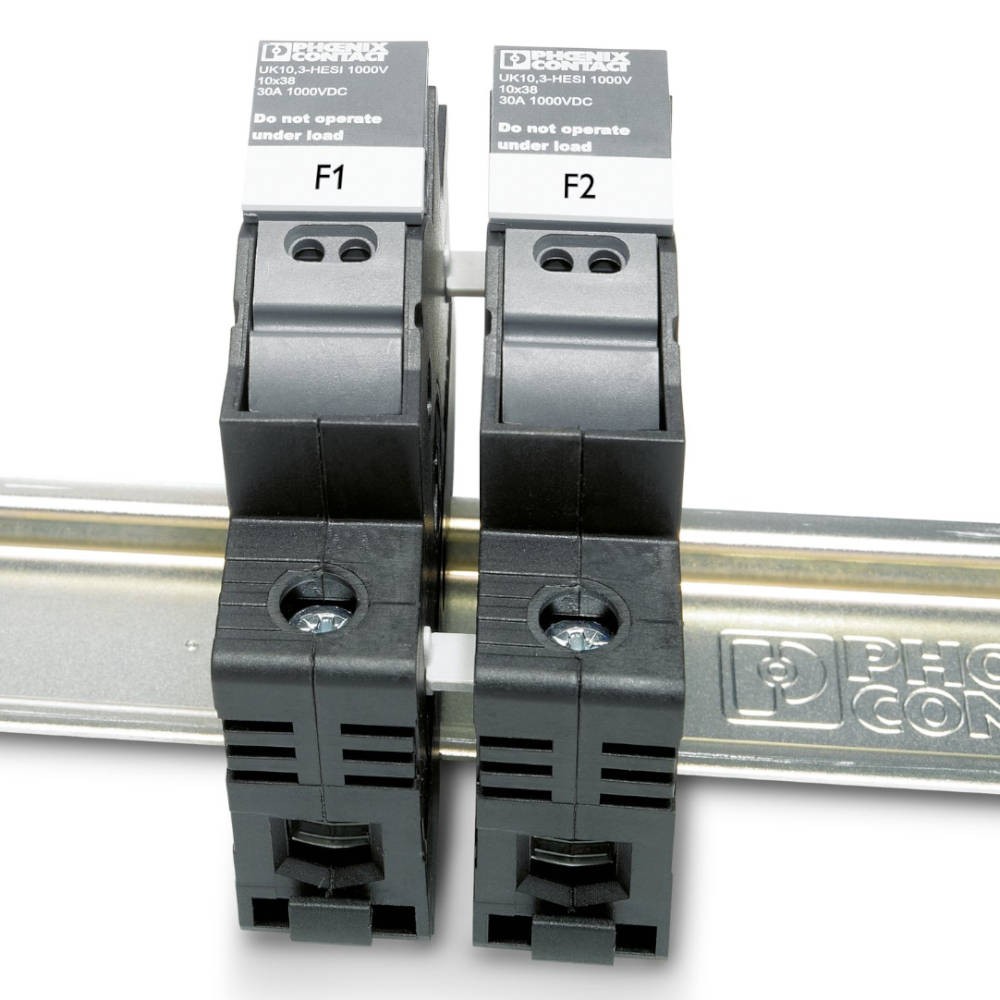

Fuse holder UK 10,3-HESI 1000 V Phoenix
Manufacturer: PHOENIX CONTACT
INDEX: 3211236
Product information "Fuse holder UK 10,3-HESI 1000 V Phoenix"
UK 10.3-HESI fuse base for protecting photovoltaic modules from overload and short-circuit. Used for a maximum voltage of 1000 V DC. The base works with cylindrical 10.3 x 38 mm fuse links.
Product distinguishing features:
- DC fuse base for PV module protection
- gPV type fuse 10.3 x 38 mm
- Rated current 30 A
- Rated voltage 1000 V DC
- Rated impulse voltage 6 kV
- Optical operation indicator
General features:
| Width - number of modules: | 1 |
|---|---|
| Weight [kg]: | 0.5 |
| Dimensions [mm]: | 1.8 x 8.1 x 6.5 |
Electrical characteristics:
| DC protection type: | Overcurrent fuse |
|---|---|
| Max. voltage [V]: | 1000 |
| Max. current [A]: | 30 |
