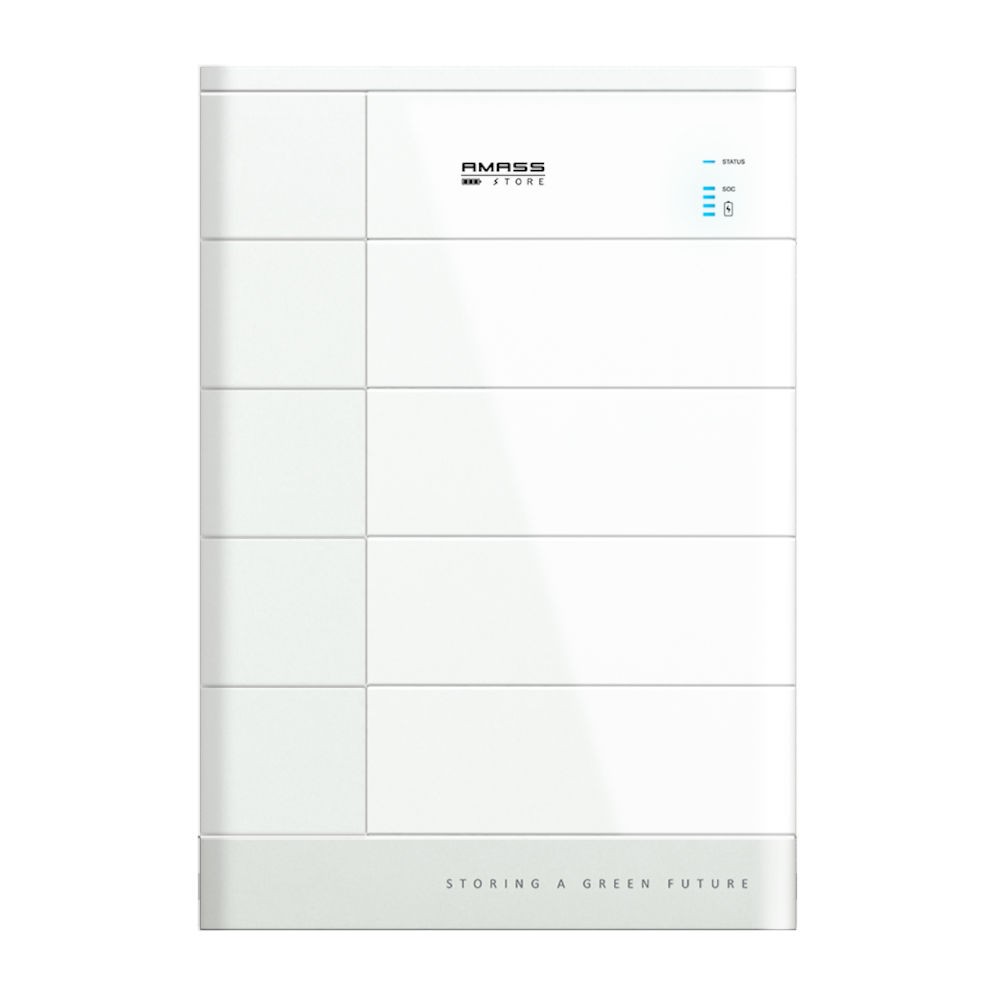

GTX 3000 Sofar battery
Product number:
930.00100000-0
Product information "GTX 3000 Sofar battery"
Battery module Amass GTX3000-H include 51.2V/50AH battery unit and slave BMS. The slave BMS collects the cell voltage and temperature of the battery unit in real time and send these massage to the master BMS through internal communication.
Slave BMS integrate cell balance circuit, which can balance cell capacity according to the control instructions of Master BMS.
| Cycle life: | 6000 |
|---|---|
| Design life: | 10 years |
| Nominal battery voltage [V]: | 48 |
| Usable battery capacity [kWh]: | 2.25 |
| Battery scalability: | up to 10 units |
| Battery technology: | Lithium Ion |
| Dimensions [mm]: | 515 x 478.8 x 125 |
| Weight [kg]: | 30 |
| Communication type: | RS485/CAN |
| Product Warranty: | 10 years |
