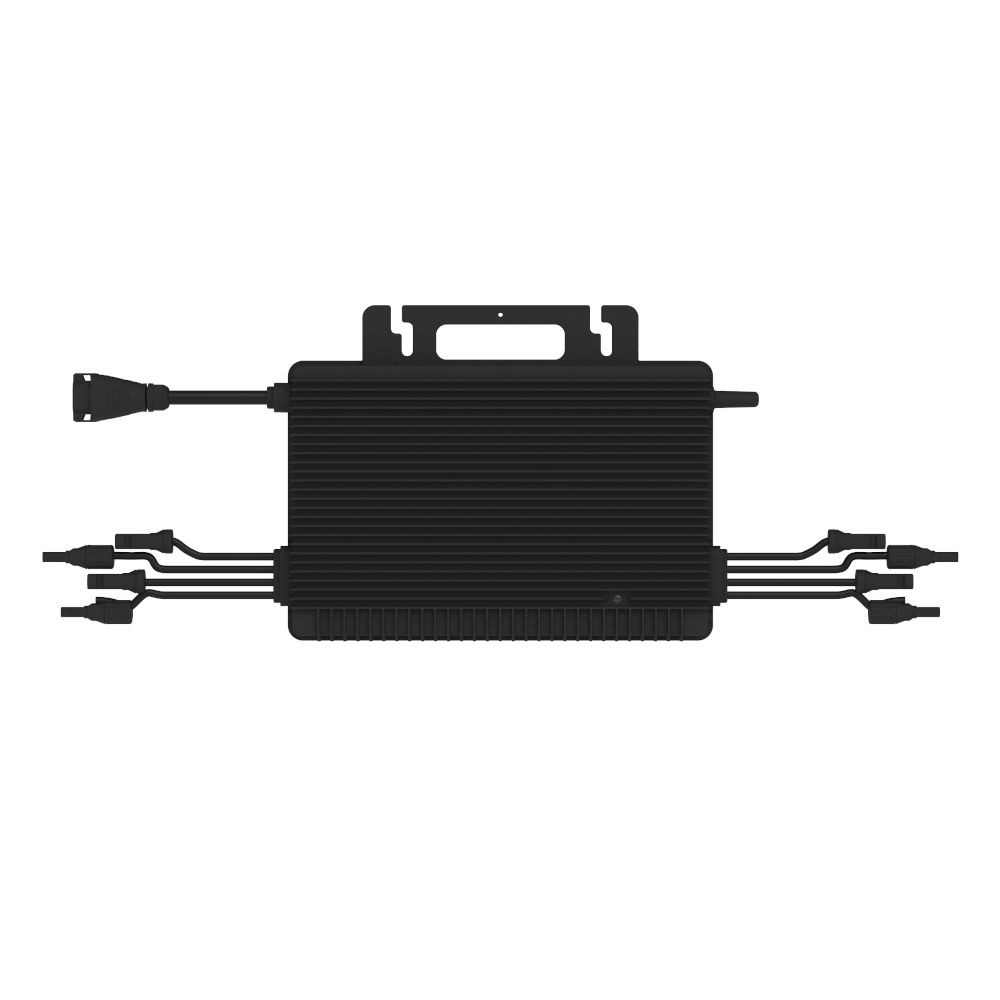

Hoymiles HMS-2000-4T microinverter
Manufacturer: Hoymiles
INDEX: HOY HMS-2000-4T
With up to 2000 VA output power, the new Hoymiles HMS-2000-4T microinverter ranks high and strong among the best inverters operating 4:1 with photovoltaic modules. Each 4T microinverter has four MPPT input with the ability of connecting one module for each, which directly affects its efficient operation, maintaining maximum performance in all weather conditions. The microinverters and thus the photovoltaic modules are monitored independently by the Hoymiles monitoring system via Sub-1G transmission.
IMPORTANT! A Hoymiles monitoring module must be selected for each installation consisting of Hoymiles microinverters.
Product’s distinguishing characteristics:
- Highest-powered microinverter with output power up to 2000 VA
- Independent MPPT and monitoring makes greater energy harvest and easier maintenance
- With Reactive Power Control, meets the requirements of EN50549-1:2019, VDE-AR-N 4105:2018, UL1741, ABNT NBR 16150, etc.
- Each microinverter supports up to 4 modules, faster installation and lower cost
- Safer for rooftop solar stations with rapid shutdown compliant and isolated transformer
- Sub-1G wireless solution enables the stable communication when installed for commercial and industrial stations
WARNING! The microinverter works only with panels whose maximum voltage (Voc) does not exceed 60 V.
| Dimensions WxHxD [mm]: | 331 x 218 x 36.6 |
|---|---|
| Type: | Microinwerter |
| Communication type: | Sub-1G |
| Weight [kg]: | 5.56 |
| Dimensions [mm]: | 331.0 x 218.0 x 40.6 |
| Maximum short-circuit current per MPPT [A]: | 25 |
|---|---|
| Maximum PV power [W]: | 670 |
| Max. voltage [V]: | 60 |
| Min. MPPT voltage [V]: | 16 |
| Max. MPPT voltage [V]: | 60 |
| Initial feed-in voltage [V]: | 22 |
| Number of MPPT inputs: | 4 |
| Supported number of PV modules: | 4 |
| Power [W]: | 2000 |
|---|---|
| Feed-in phases: | 1 |
| Max. output current [A]: | 9.09 |
| Max. efficiency [%]: | 99.8 |
|---|
