Microinverters

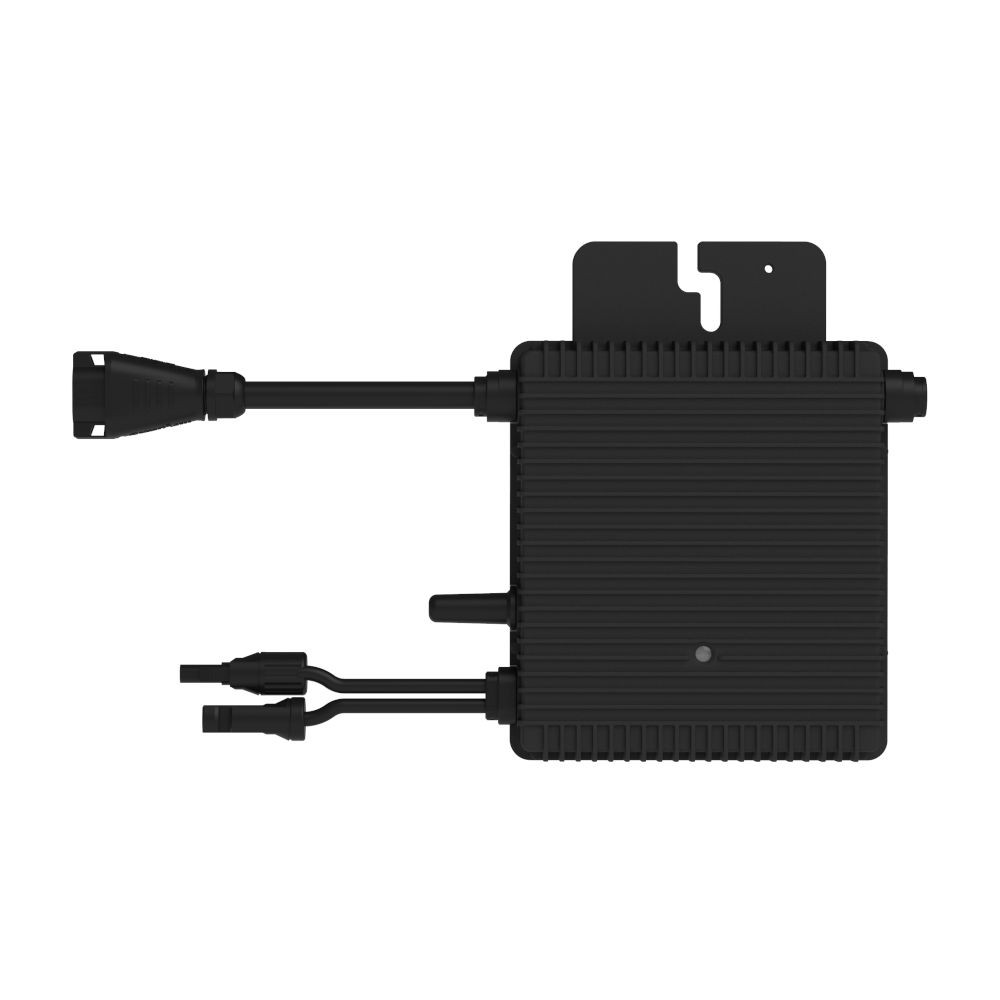

Hoymiles HMS-450-1T Photovoltaic microinverter
Manufacturer: Hoymiles
INDEX: HOY HMS-450-1T
With up to 450 VA output power, the new Hoymiles HMS-450-1T microinverter ranks high and strong among the best inverters operating 1:1 with photovoltaic modules. Each 1T microinverter has one MPPT input with the ability to connect 1 module, which directly affects its efficient operation, maintaining maximum performance in all weather conditions. The microinverters and thus the photovoltaic modules are monitored independently by the Hoymiles monitoring system via Sub-1G transmission.
IMPORTANT! A Hoymiles monitoring module must be selected for each installation consisting of Hoymiles microinverters.
Product’s distinguishing characteristics:
- Highest-powered microinverter for 1 in 1 with output power up to 450 VA
- With Reactive Power Control, meets the requirements of EN50549-1:2019, VDE-AR-N 4105:2018, UL1741, etc.
- Safer for rooftop solar stations with rapid shutdown compliant and isolated transformer
- Excellent flexibility, faster installation and good adaptability to all kinds of module arrangement
- Sub-1G wireless solution enables the stable communication when installed for commercial and industrial stations
WARNING! The microinverter works only with panels whose maximum voltage (Voc) does not exceed 60 V.
Connection to the network
| Dimensions WxHxD [mm]: | 164 x 182 x 30 |
|---|---|
| Type: | Microinwerter |
| Communication type: | Sub-1G |
| Weight [kg]: | 1.75 |
| Dimensions [mm]: | 182.0 x 164.0 x 30.0 |
| Maximum PV power [W]: | 600 |
|---|---|
| Max. voltage [V]: | 65 |
| Min. MPPT voltage [V]: | 16 |
| Max. MPPT voltage [V]: | 60 |
| Initial feed-in voltage [V]: | 22 |
| Number of MPPT inputs: | 1 |
| Supported number of PV modules: | 1 |
| Power [W]: | 450 |
|---|---|
| Feed-in phases: | 1 |
| Max. output current [A]: | 1.96 |
| Max. efficiency [%]: | 99.8 |
|---|
