Inverters with chargers

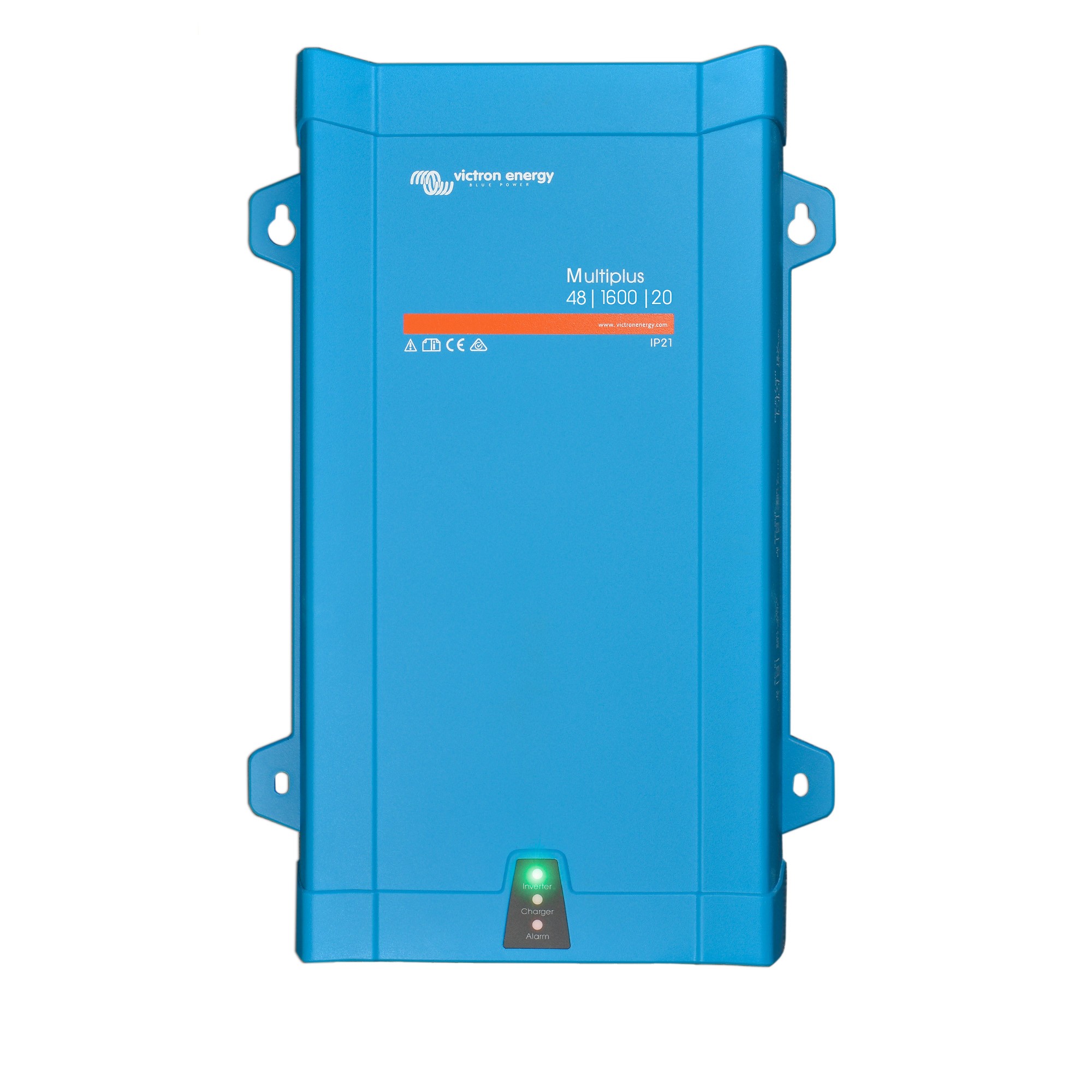

Inverter/charger MultiPlus 48/1600/20-16 230 V VE.Bus Victron Energy
Manufacturer: Victron Energy
INDEX: PMP482160000
Multifunctional
The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more.
| Max. efficiency [%]: | 95 |
|---|---|
| Communication type: | Ethernet |
| Weight [kg]: | 10 |
| Dimensions [mm]: | 465.0 x 270.0 x 120.0 |
| Input frequency [Hz]: | 45 - 65 |
|---|---|
| Input voltage DC [V] : | 48 |
| Input voltage range AC [V]: | 187 - 265 |
| Input voltage range DC [V]: | 38 - 66 |
| Peak power [W]: | 2800 |
| Power [W]: | 1300 |
| Feed-in phases: | 1 |
