iStoragE B5-S1 Kehua Battery Module
Manufacturer: Kehua
INDEX: ISTORAGE B5-S1

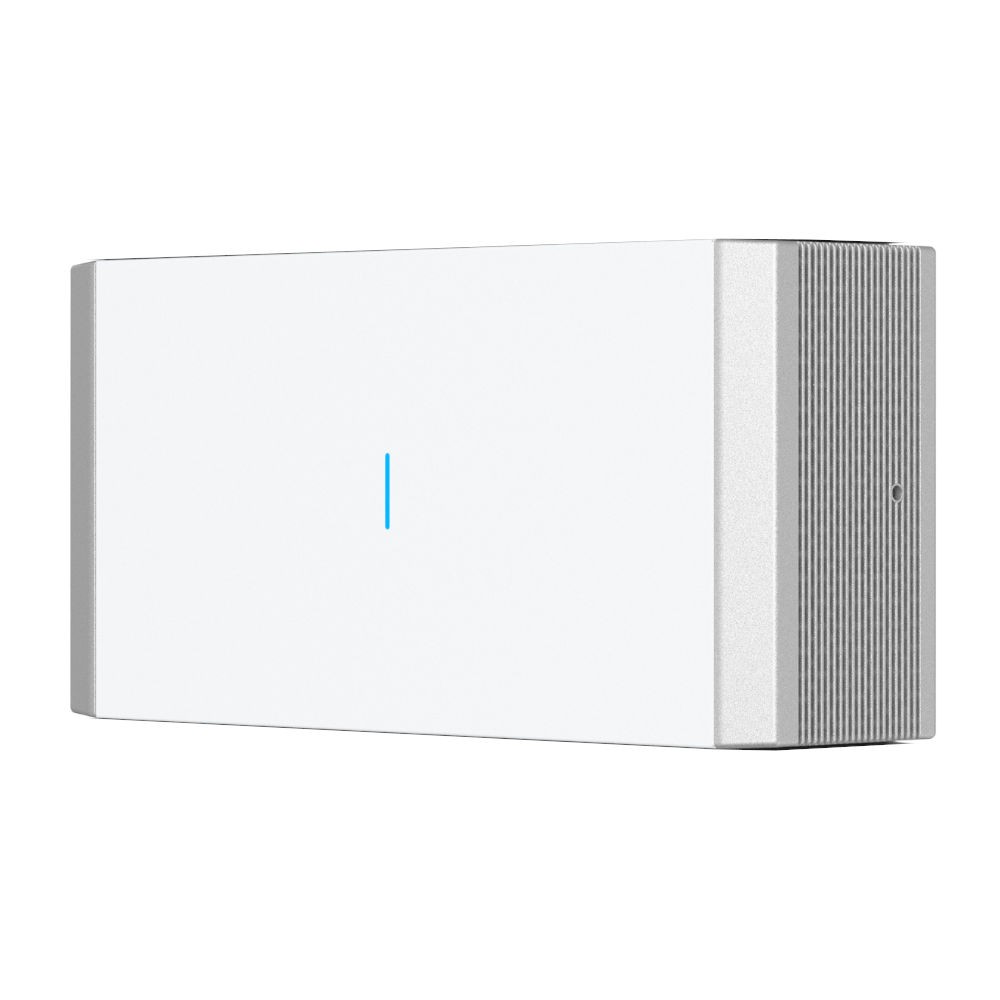

The iStoragE B5-S1 battery module is used to build the iStoragE1 and iStoragE3 energy bank. The module is made in the LiFePO4 technology with a utility capacity of 5 kWh. It works with a dedicated iStoragE1 hybrid inverter in the 3.6 - 6 kW power range and iStoragE3 hybrid inverter in the 5 - 12 kW power range.
The iStoragE1 energy storage can hold and release electricity depending on the requirements of the management system. The entire set constitutes an integrated element with the possibility of being extended up to 8 battery modules and a utility capacity of 40 kWh.
The product's distinctive features:
- Easy assembly into the iStoragE1 and the iStoragE3 storage system
- Quick launch, full automation
- LiFePO4 battery technology
- Energy consumption automation at the level of the module
- Scalable to 40 kWh
| Dimensions WxHxD [mm]: | 800 x 380 x 238 |
|---|---|
| Battery Scalability: | do 8 jednostek |
| Battery technology: | Litowo-jonowy |
| Weight [kg]: | 55 |
| Dimensions [mm]: | 380.0 x 800.0 x 200.0 |
| Usable capacity [kWh]: | 5 |
|---|
