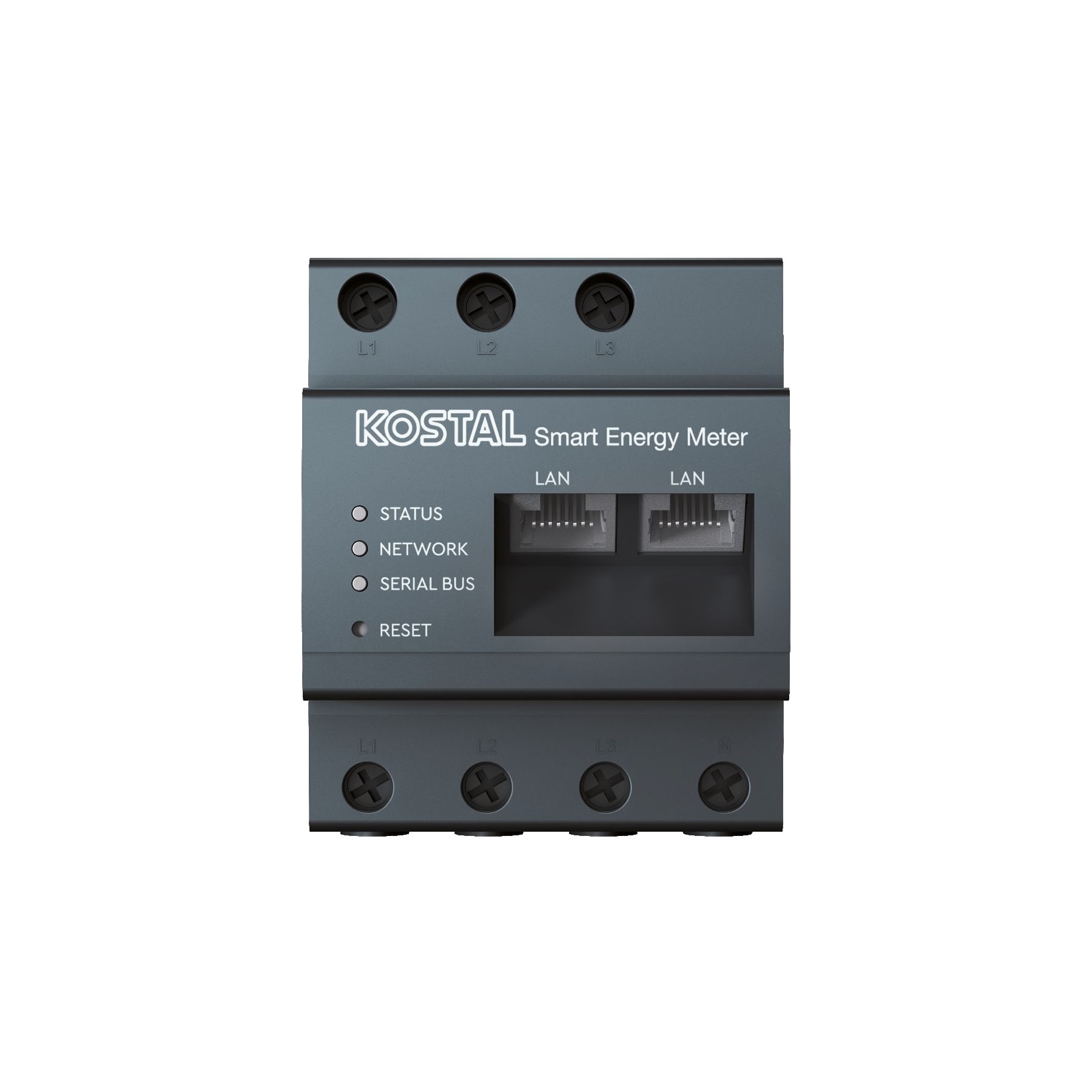

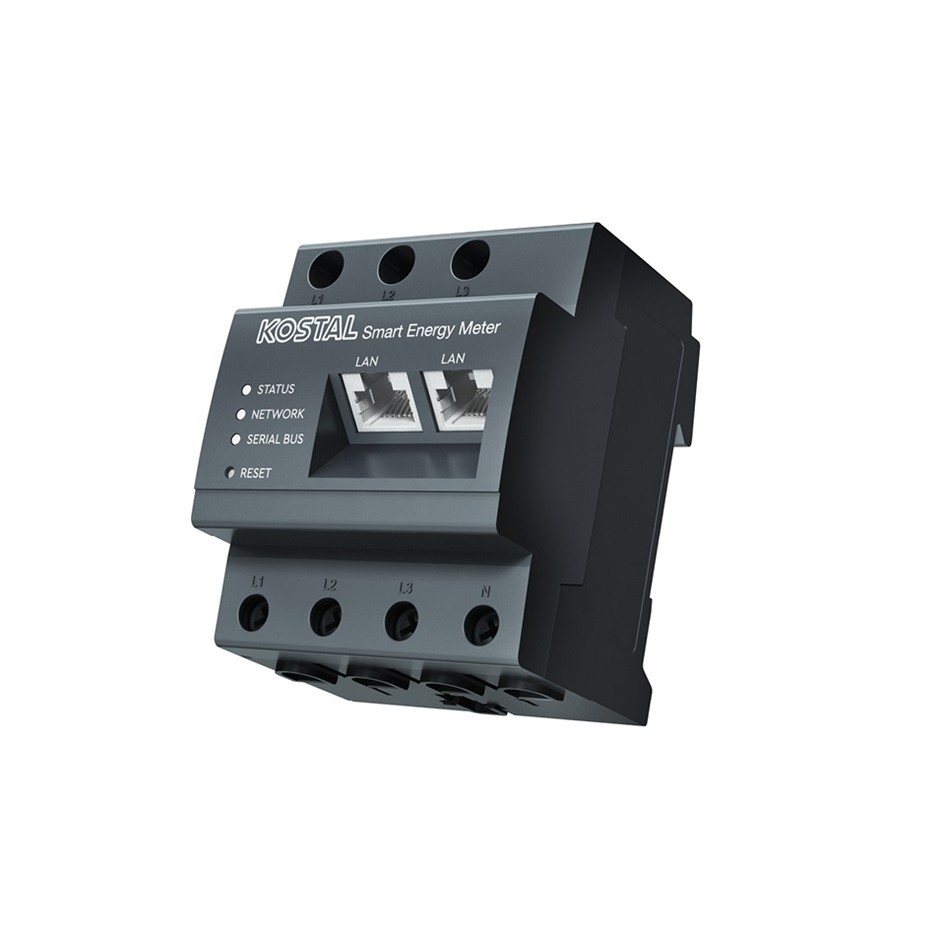

Kostal smart energy meter
Manufacturer: Kostal
INDEX: 10537876
The KOSTAL Smart Energy Meter is a metering device that measures electrical parameters and provides them to the inverter via LAN or RS485. The device is not an active electricity meter within the meaning of EU Directive 2004/22/EC (MID) and may be used indoors only.
The data collected by the KOSTAL Smart Energy Meter regarding an installation’s electricity production may differ from that of the main energy meter.
The KOSTAL Smart Energy Meter belongs to overvoltage category III and is therefore only allowed to be connected in the switching substation or switchgear on the consumer side after the power distribution company’s energy meter (PDC) and is only suitable for indoor use.
Distinguishing features of the product:
Integrated 3-phase energy measurement up to 63 A
Using a transformer, higher currents can be measured
2 LAN and 2 RS485 interfaces (Modbus RTU)
High measurement accuracy
Current sensor and energy management module to connect AC batteries
Smart control for swarm inverter connections
Ease of installation in a DIN rail control cabinet
Simple configuration of the device using a browser with default values set
Software update using a browser
Works with PLENTICORE plus, PIKO 4.2-20, PIKO EPC, PIKO MP plus, PIKO IQ
| Weight [kg]: | 0.3 |
|---|---|
| Dimensions [mm]: | 88.0 x 70.0 x 65.0 |
| Max. current [A]: | 63 |
|---|---|
| Feed-in phases: | 3 |
