PV Mounting elements
Mounting triangle 20 degrees horizontal
Manufacturer: iONTEC
INDEX: EKIERKA20POZIOMA-kpl
Product information "Mounting triangle 20 degrees horizontal"

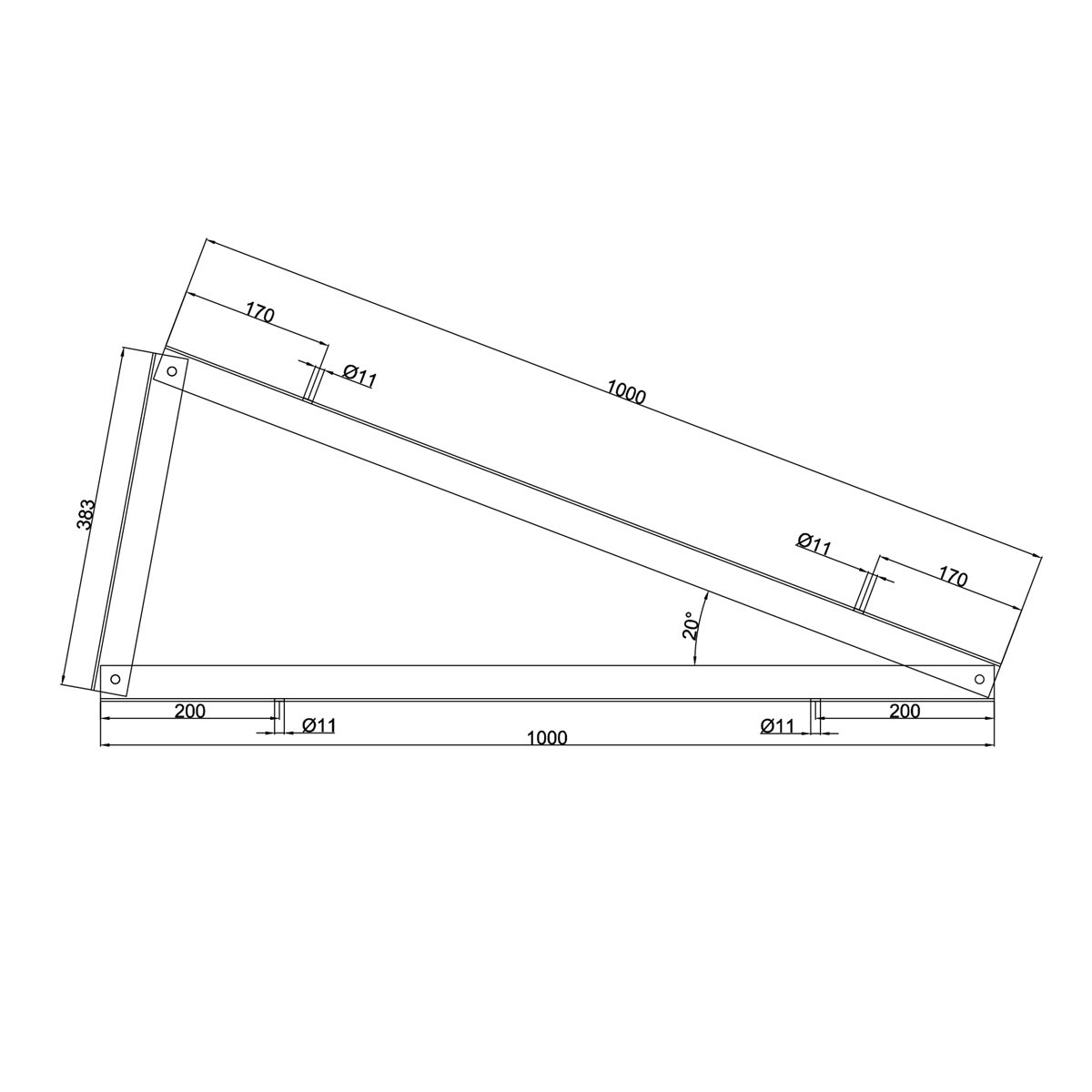

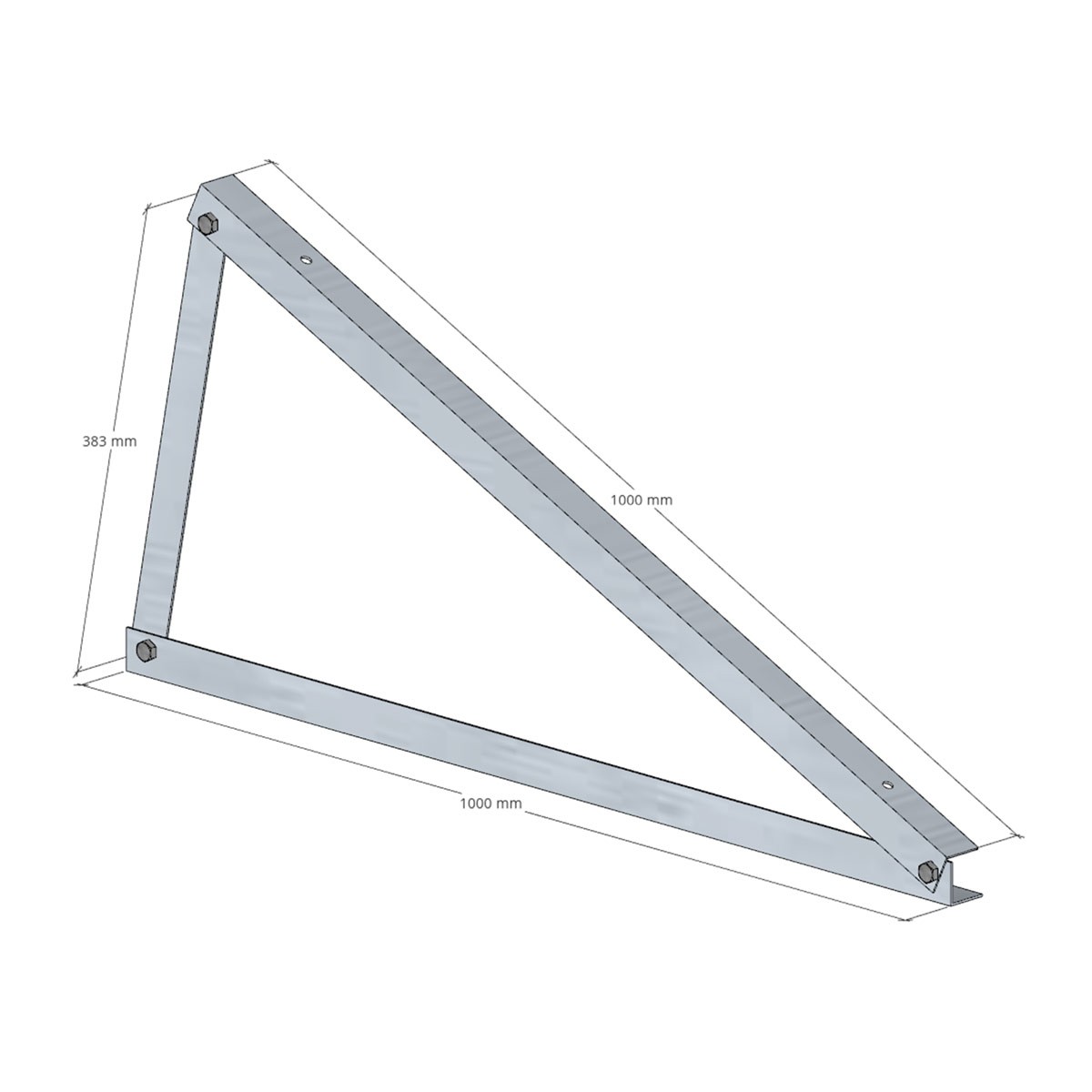

A load-bearing structure with an inclination of 20 degrees to flat surface made of 40x40x3 aluminium angle bar.

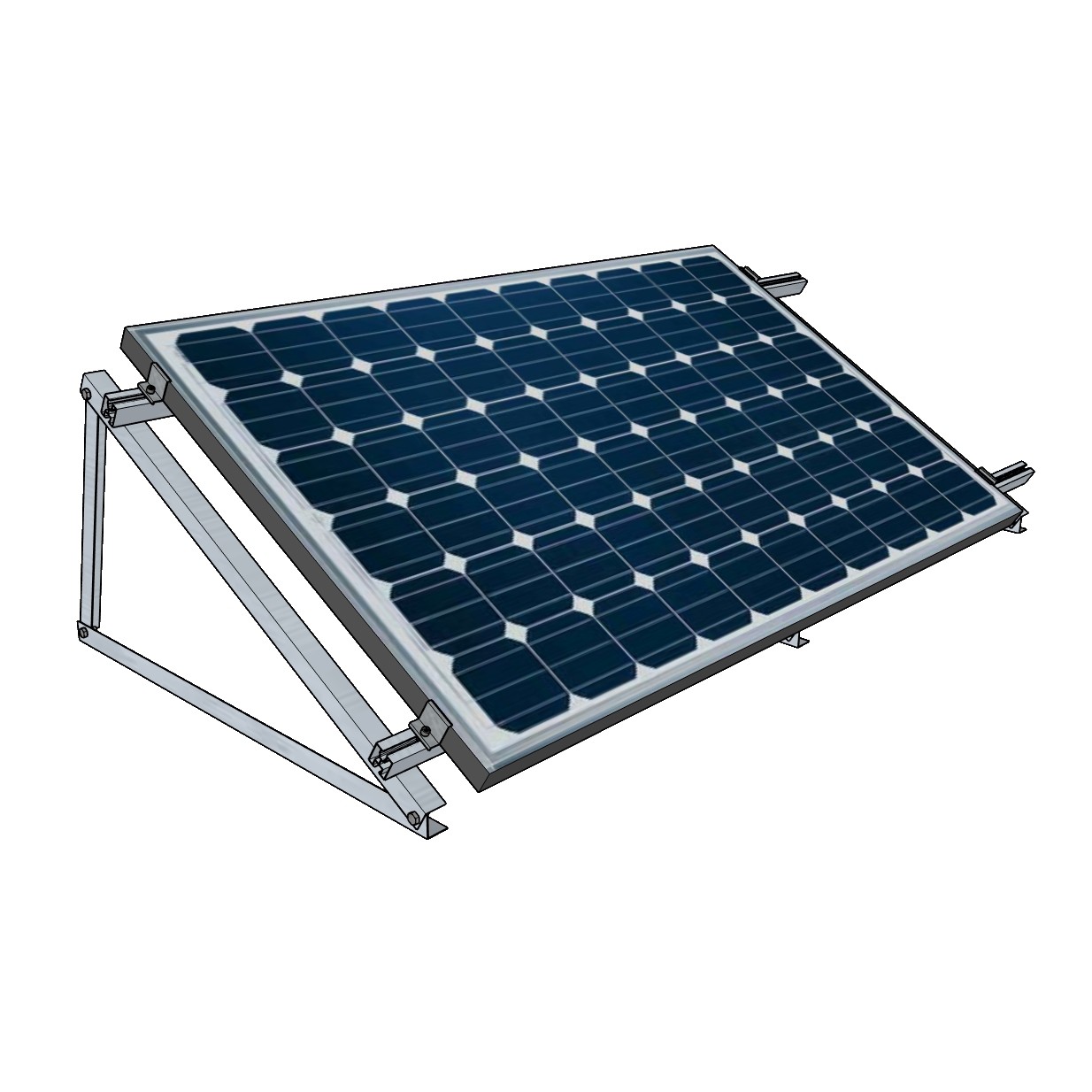

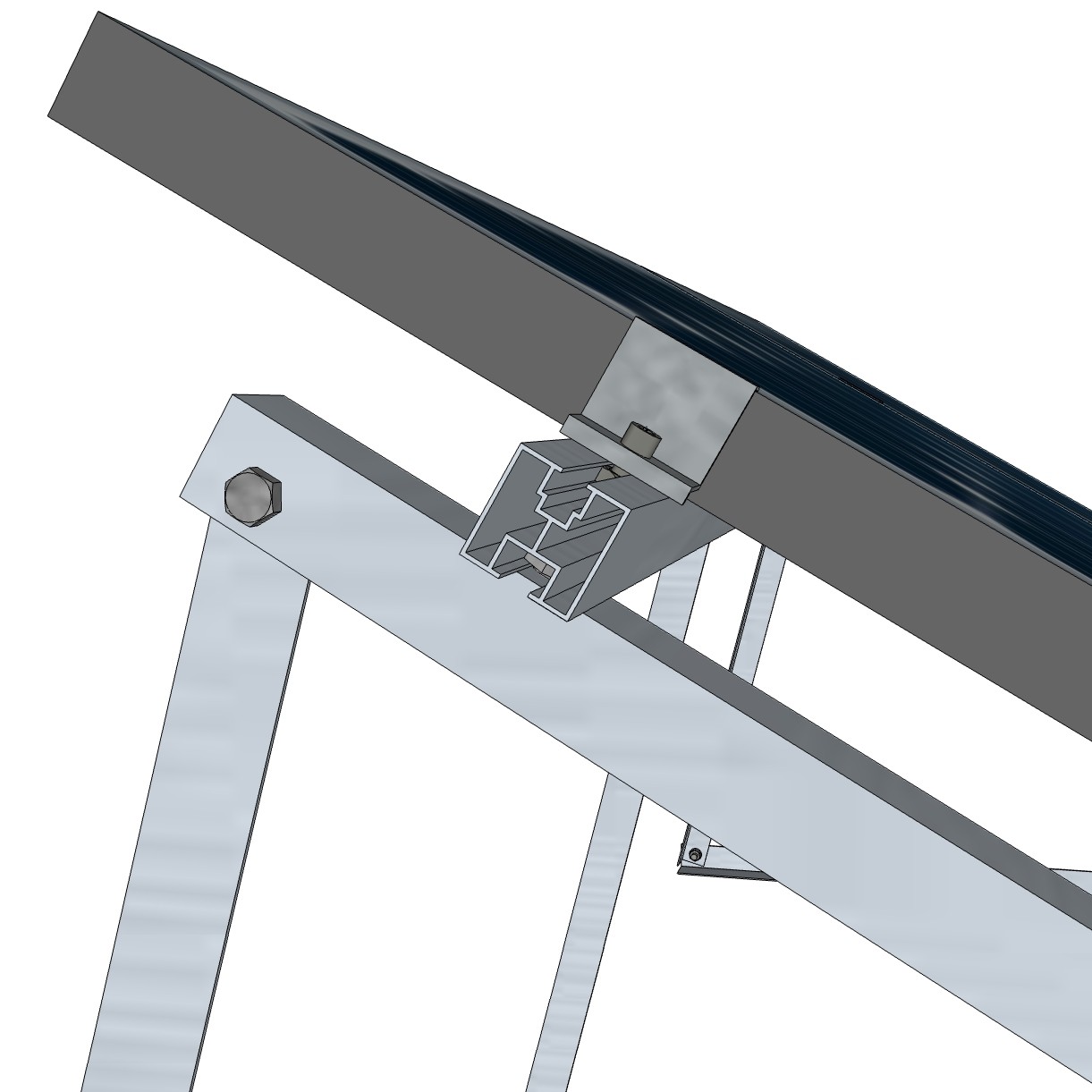

Aluminium structure allows photovoltaic modules to be mounted on a flat roof.
It is possible to create a load-bearing structure with a different angle of inclination from the level and with different lengths of the sides.
General features:
| Assembling a set square: | Horizontal |
|---|---|
| Elements: | Triangles |
| Inclination angle [degrees]: | 20 |
| Weight [kg]: | 1.56 |
| Dimensions [mm]: | 46.0 x 1000.0 x 46.0 |
