PV Mounting elements
Mounting triangle 30 degrees vertical
Manufacturer: iONTEC
INDEX: EKIERKA30PION-A-kpl
Product information "Mounting triangle 30 degrees vertical"

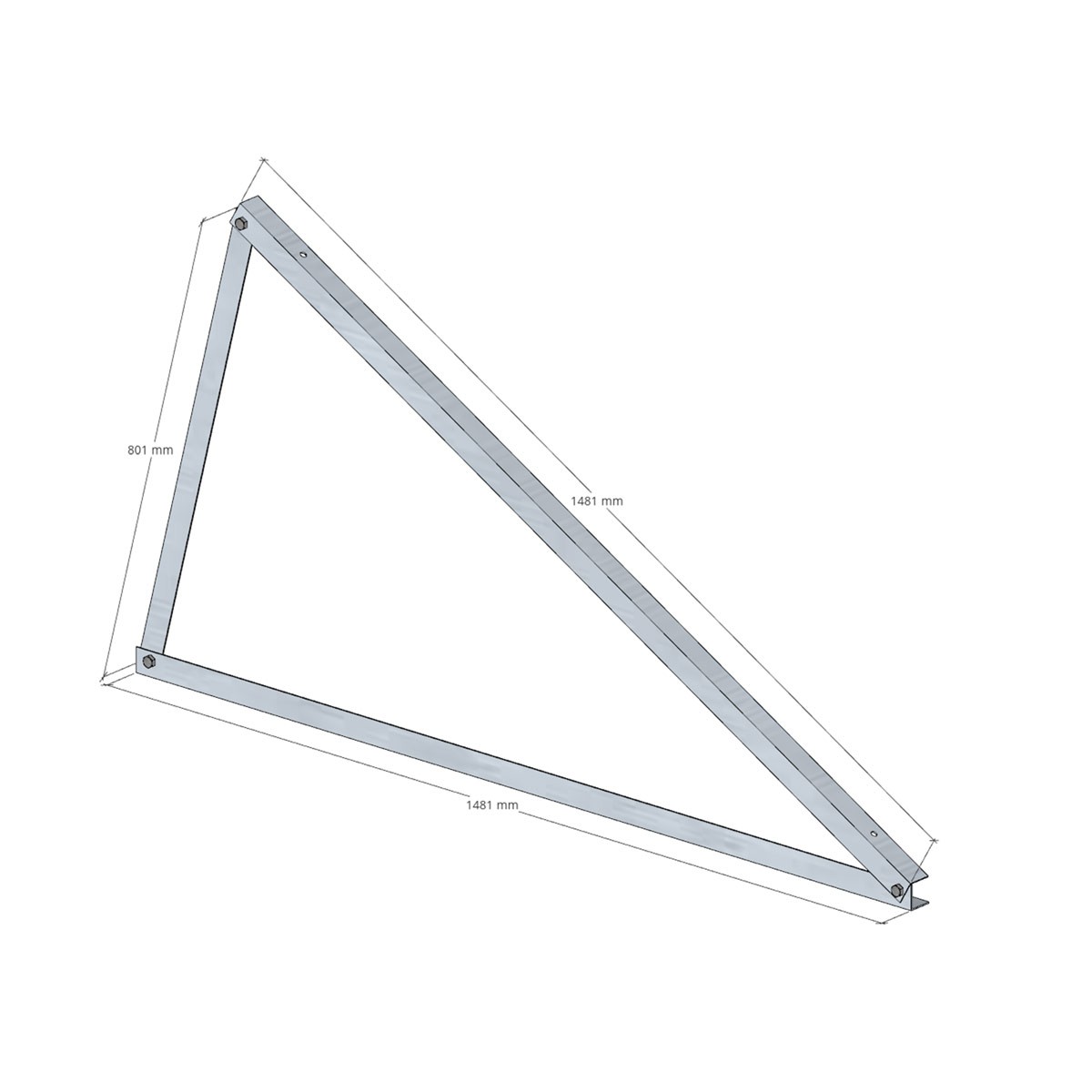

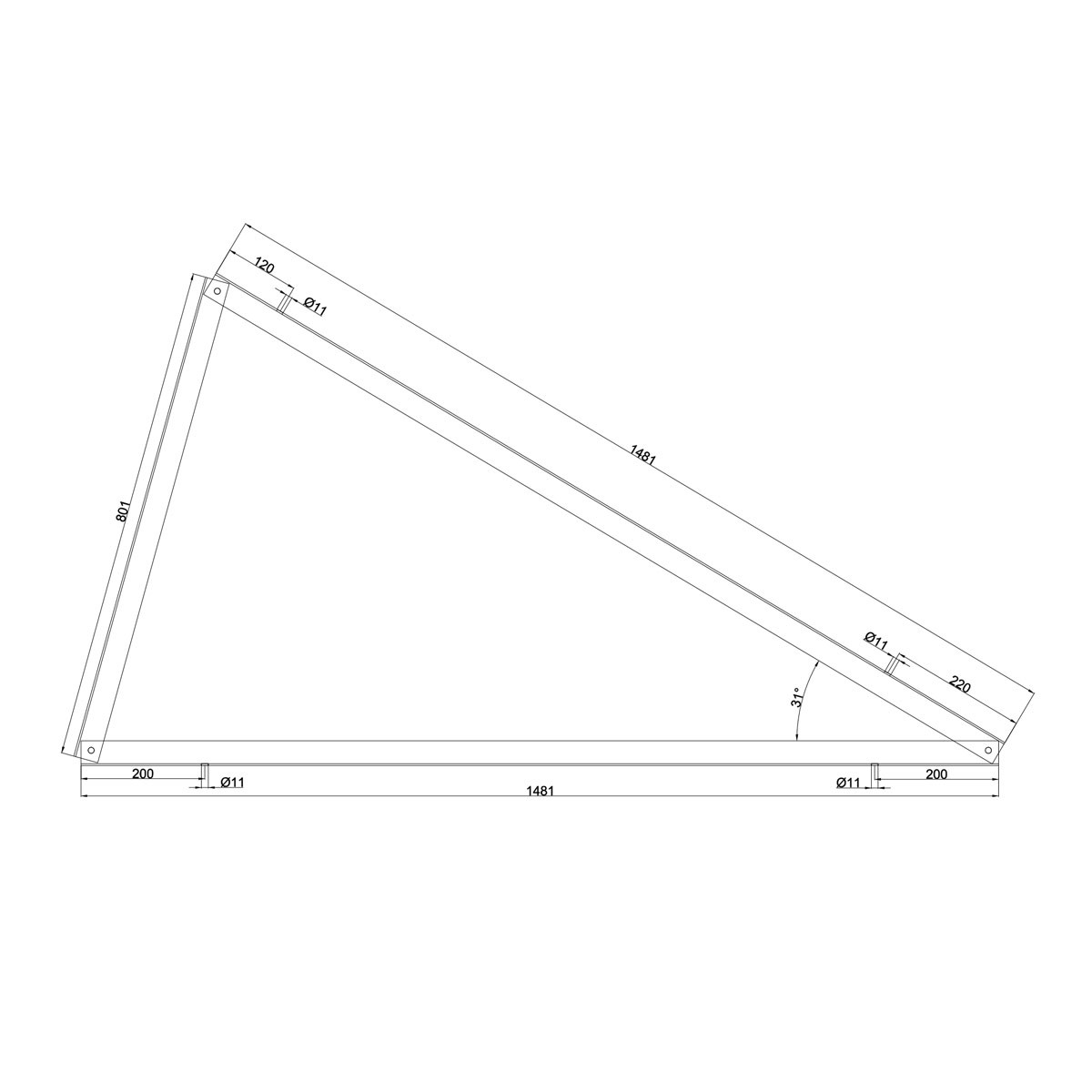

A load-bearing structure with an inclination of 30 degrees to flat surface made of 40x40x3 aluminium angle bar.

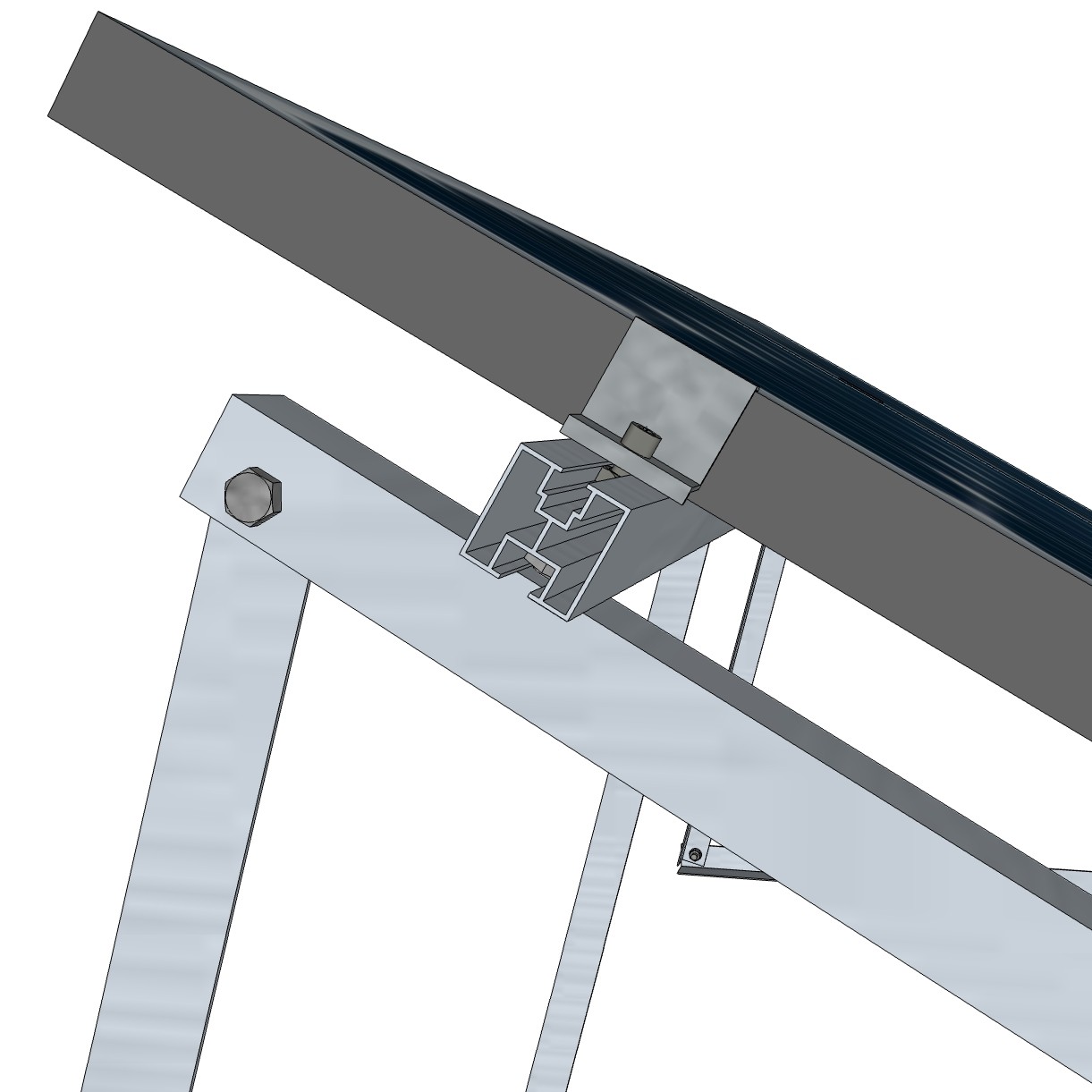

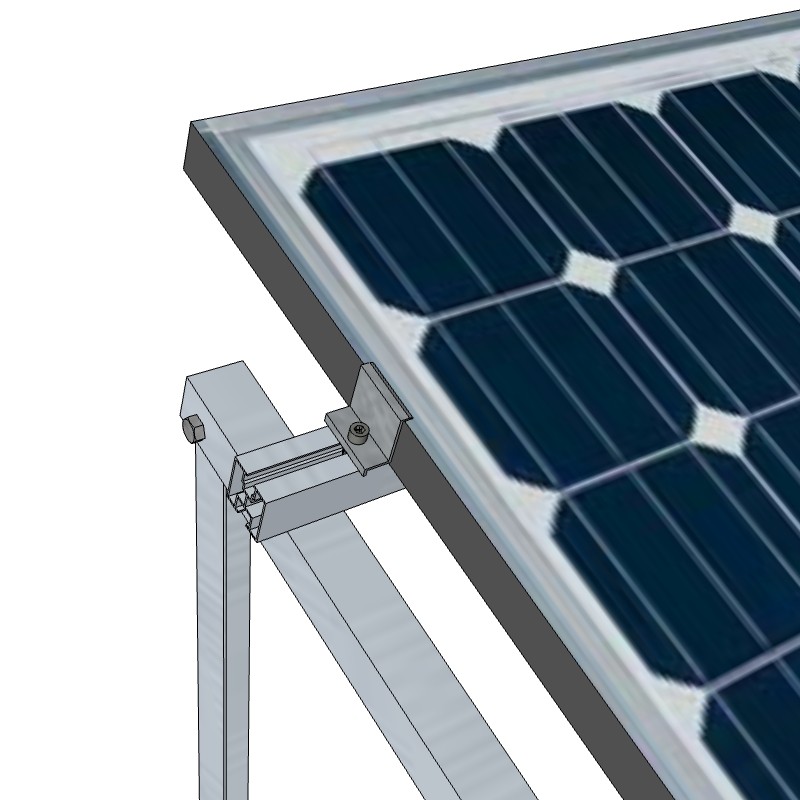

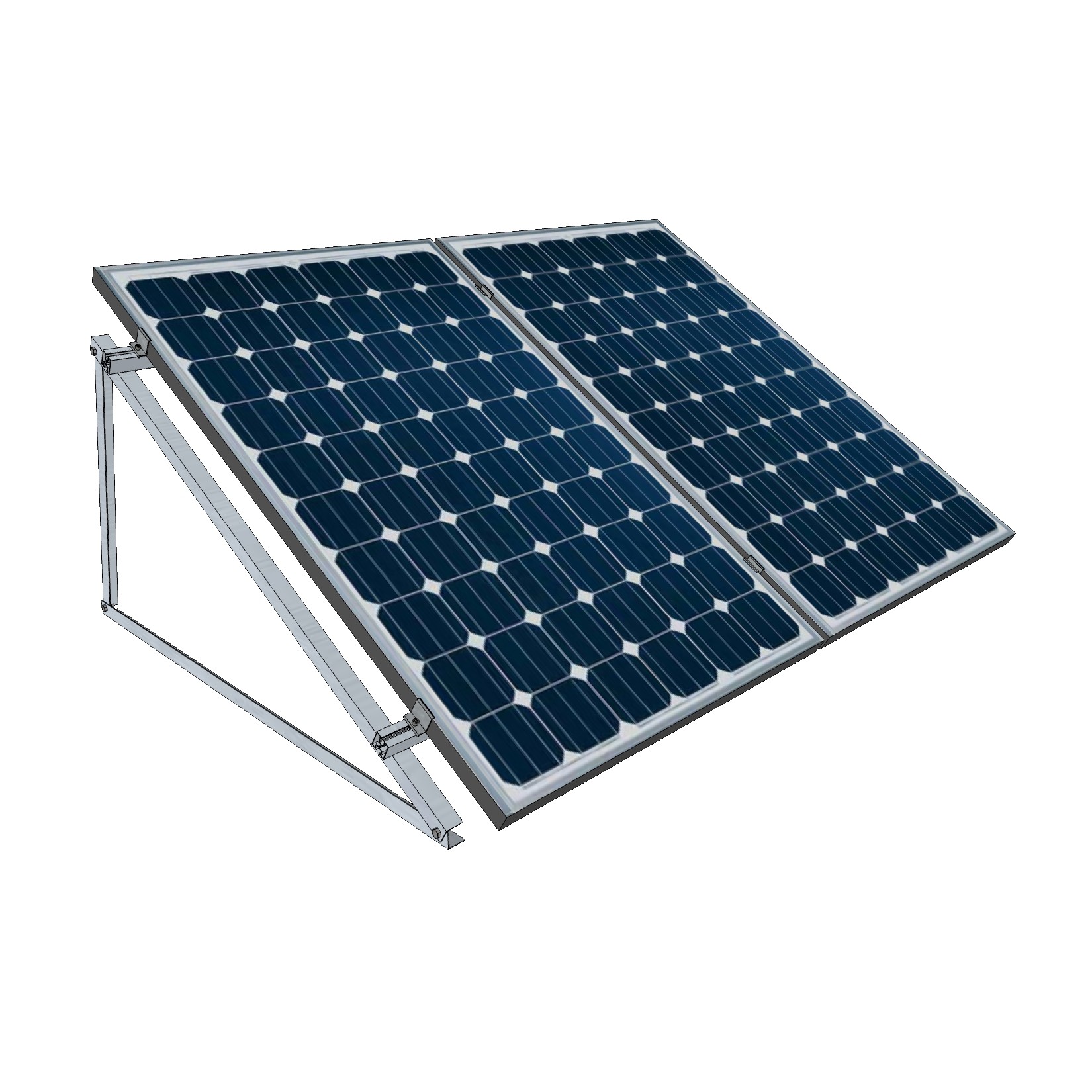

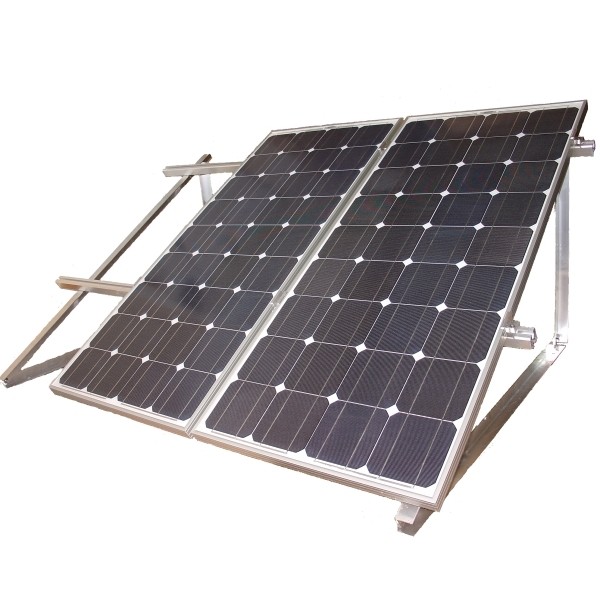

Aluminium structure allows photovoltaic modules to be mounted on a flat roof.
It is possible to create a load-bearing structure with a different angle of inclination from the level and with different lengths of the sides.
General features:
| Assembling a set square: | Vertical |
|---|---|
| Elements: | Triangles |
| Inclination angle [degrees]: | 30 |
| Weight [kg]: | 2.4 |
| Dimensions [mm]: | 46.0 x 1480.0 x 46.0 |
