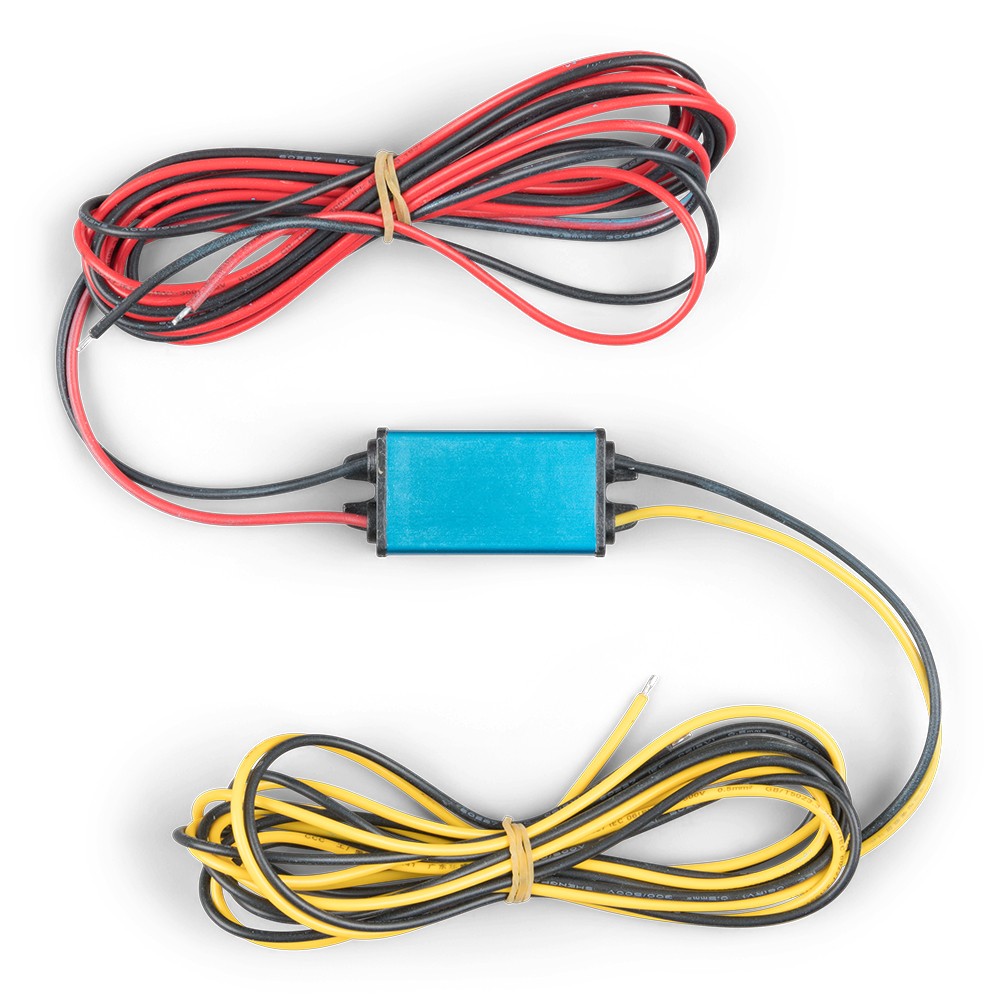

Orion IP67 DC-DC Converter 24/12-5 A Victron Energy
Manufacturer:
INDEX: ORI241205260

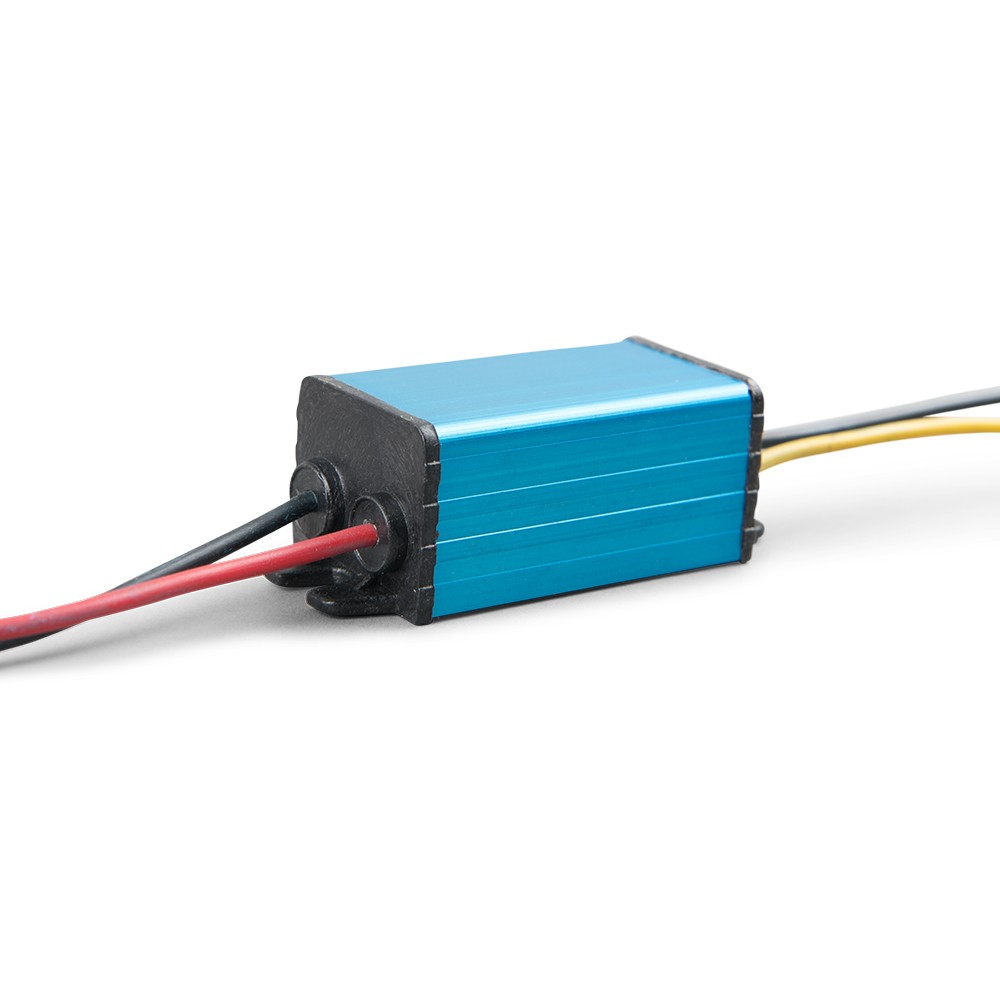

Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
Wide input voltage range
With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.
Protected against overheating
It can be used in a hot environment such as a machine room.
| Input voltage range DC [V]: | 15 - 40 |
|---|---|
| Initial feed-in voltage [V]: | 14 |
| Approximate cut-off voltage [V]: | 13 |
| Continuous output current [A]: | 5 |
| DC output voltage [V]: | 12 |
| Max. efficiency [%]: | 93 |
|---|---|
| Dimensions WxHxD [mm]: | 43 x 25 x 20 |
