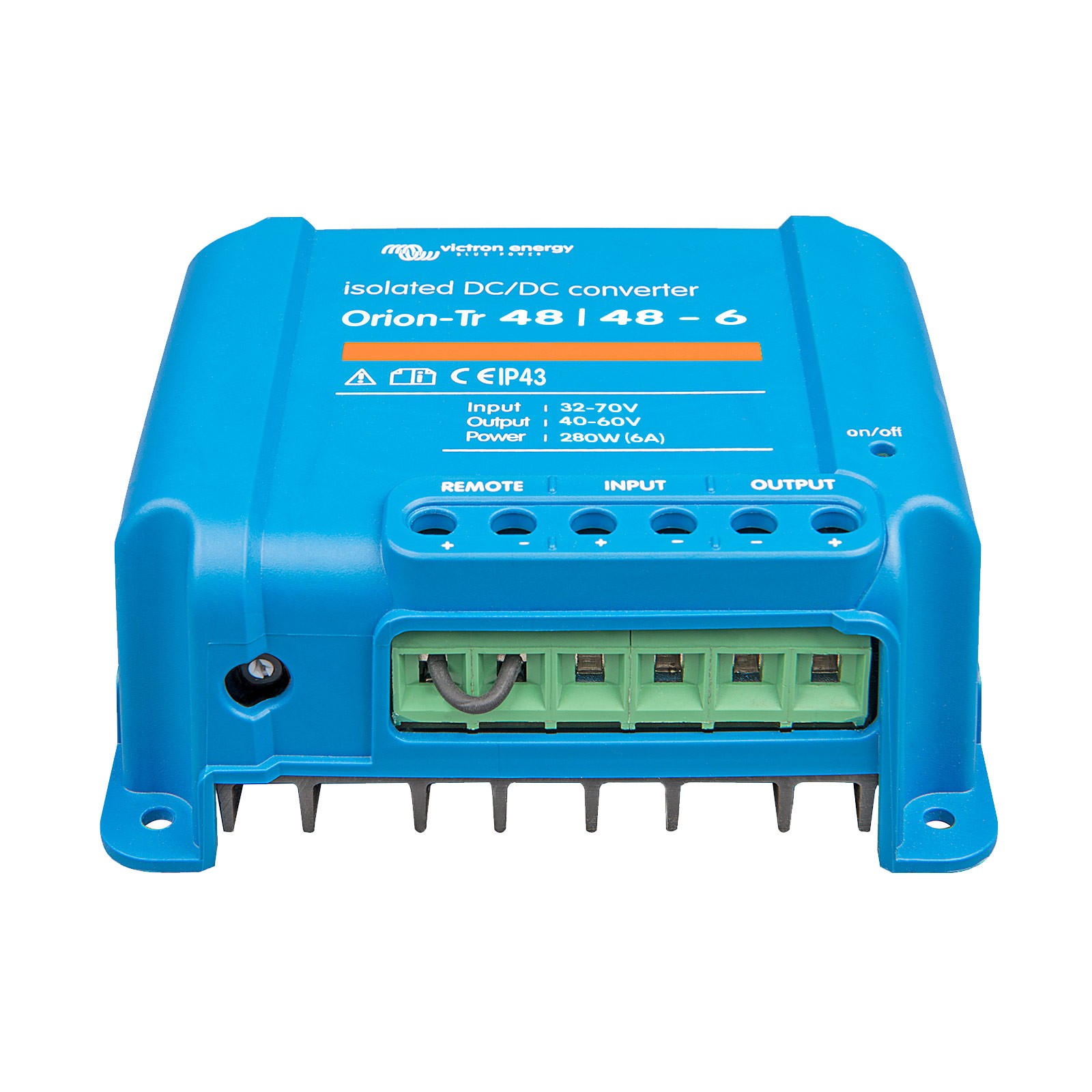

Orion-Tr 48/48-6 A Victron Energy isolated converter
Manufacturer:
INDEX: ORI484828110
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24 V system. All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
| Power [W]: | 280 |
|---|---|
| Input voltage range DC [V]: | 32 - 70 |
| Initial feed-in voltage [V]: | 30 |
| Approximate cut-off voltage [V]: | 28 |
| Short-circuit current [A]: | 25 |
| Continuous output current [A]: | 6 |
| DC output voltage [V]: | 48.2 |
| DC output voltage range [V]: | 40 - 60 |
| Max. efficiency [%]: | 89 |
|---|---|
| Dimensions WxHxD [mm]: | 186 x 130 x 70 |
