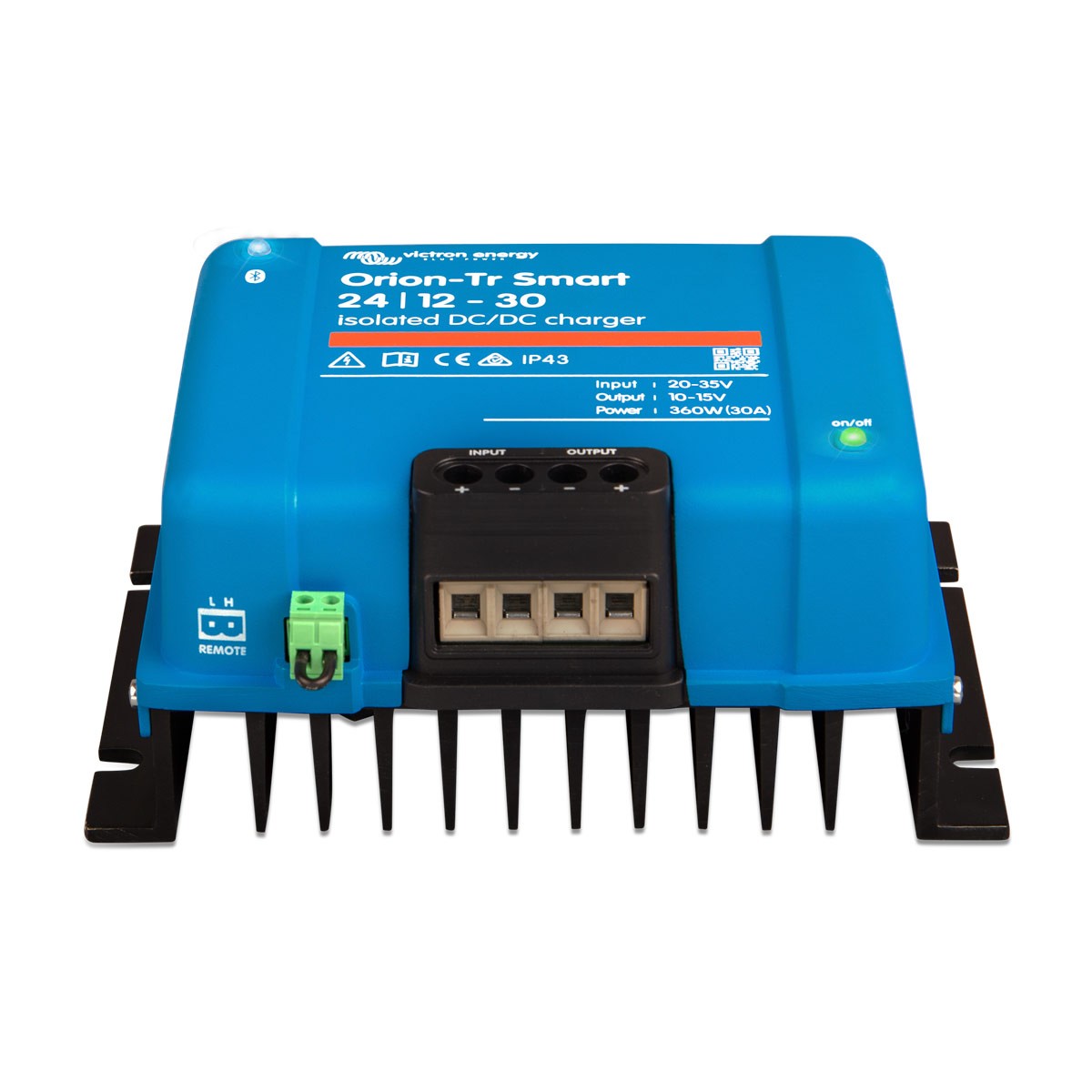

Orion-Tr Smart 24/12-30 A Victron Energy insulated charger
Manufacturer: VICTRON ENERGY
INDEX: ORI241236120
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.
For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.
The Orion Tr-Smart charger can be used in 12 V or 24 V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400 W and unlimited multiple units can be connected in parallel to increase output power.
Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
| Dimensions WxHxD [mm]: | 186 x 130 x 80 |
|---|---|
| Max. efficiency [%]: | 88 |
| Communication type: | Bluetooth |
| Weight [kg]: | 1.8 |
| Dimensions [mm]: | 130.0 x 186.0 x 80.0 |
| Approximate cut-off voltage [V]: | 14 |
|---|---|
| Continuous output current [A]: | 30 |
| DC output voltage [V]: | 12.2 |
| DC output voltage range [V]: | 10 - 15 |
| Input voltage range DC [V]: | 20 - 35 |
| Power [W]: | 360 |
| Initial feed-in voltage [V]: | 15 |
| Short-circuit current [A]: | 60 |
