Inverters

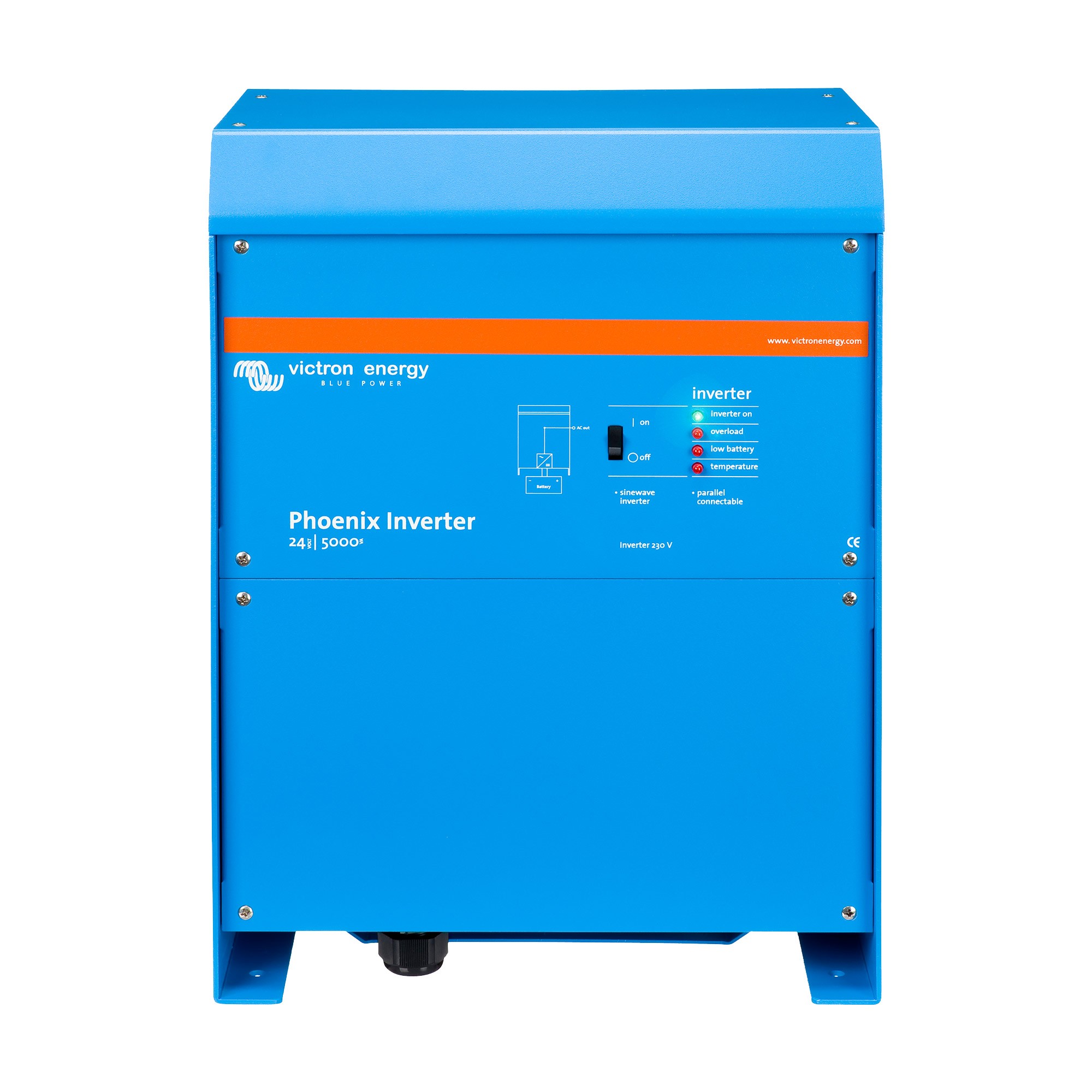

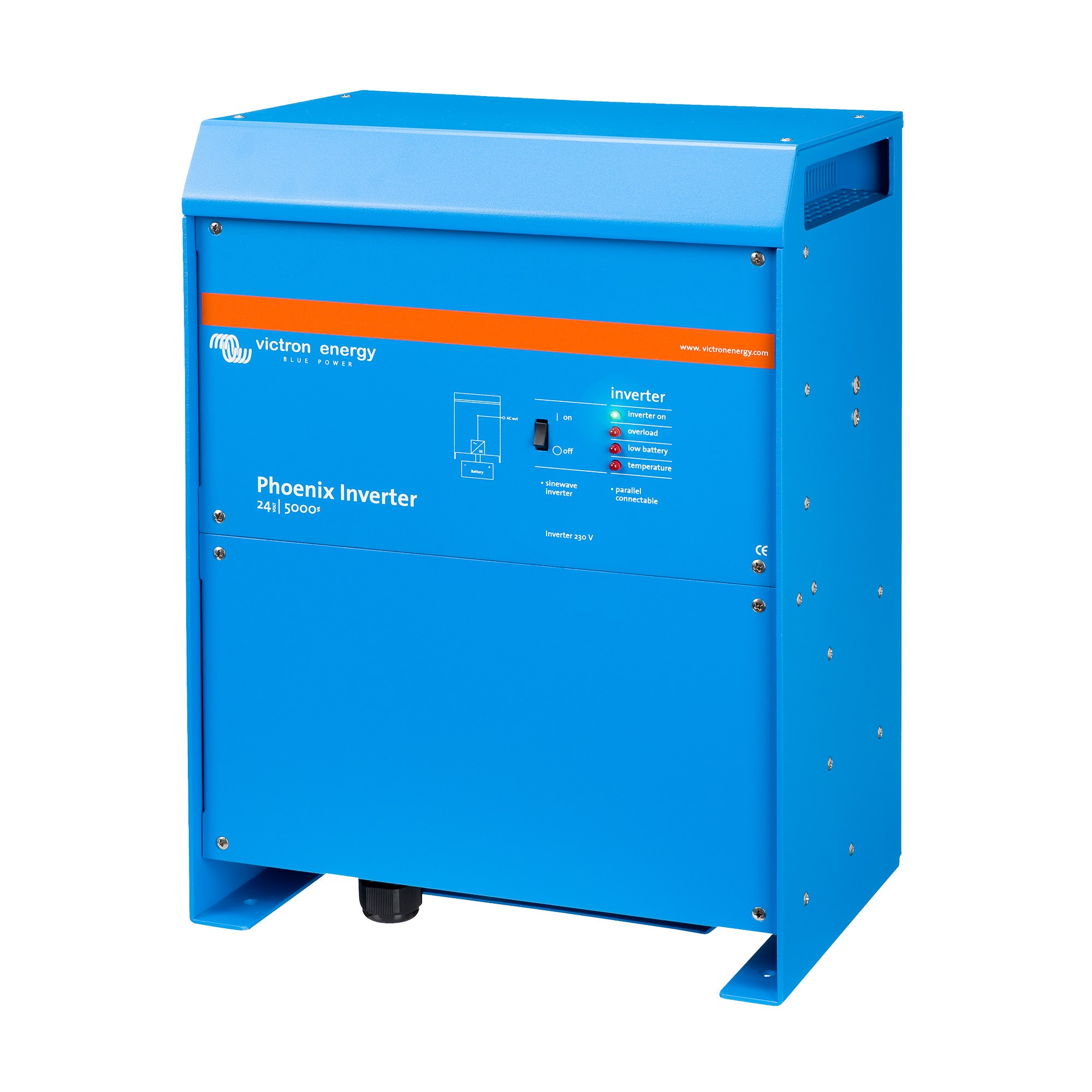

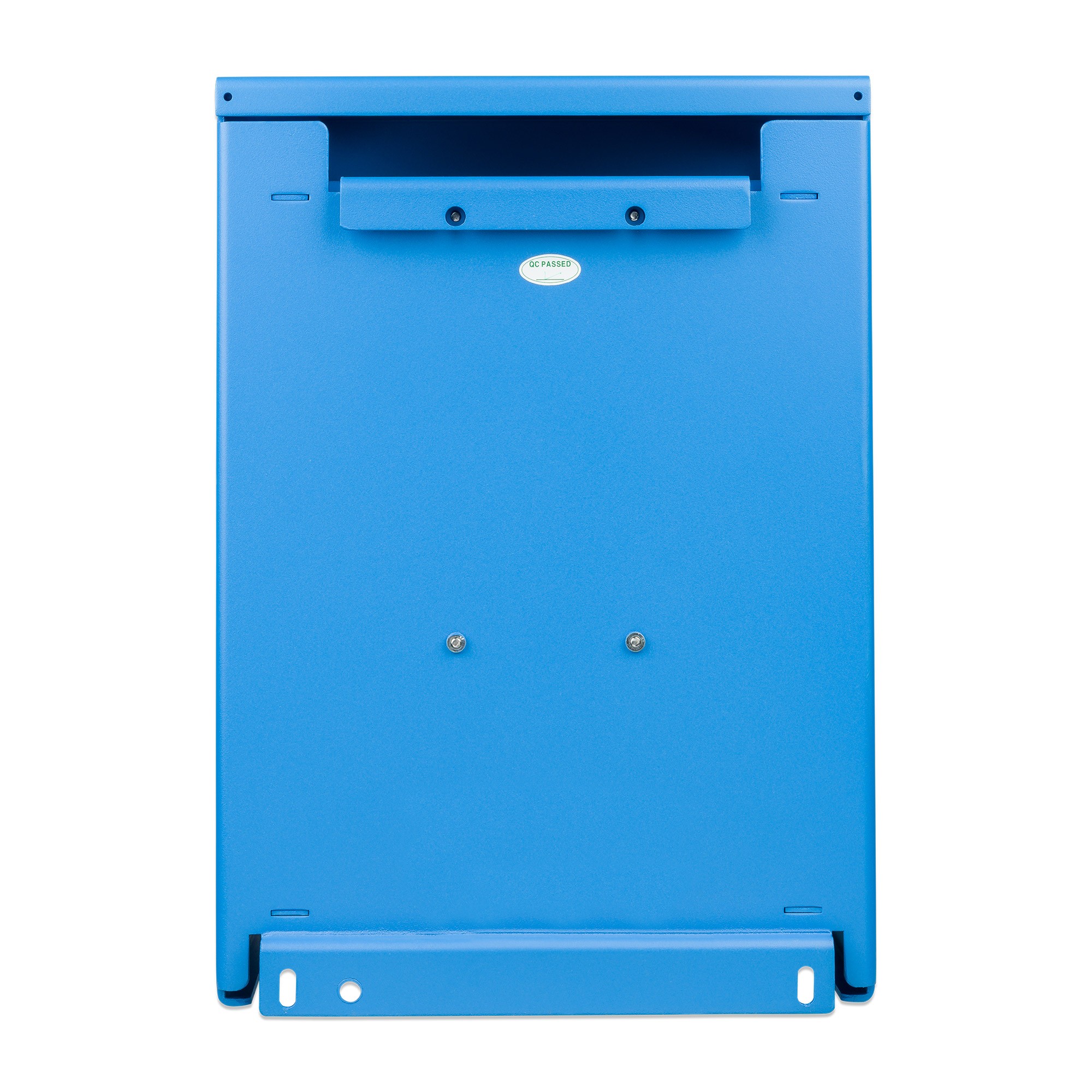

Phoenix 24/5000 230V Ve.Bus inverter Victron Energy
Manufacturer: VICTRON ENERGY
INDEX: PIN245020000
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
Parallel and 3-phase operation capability
Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24 V 5000 VA units, for example, will provide 24 kW / 30 kVA output power. Operation in 3-phase configuration is also possible.
Models: 3000VA - 5000VA
| Dimensions WxHxD [mm]: | 328 x 444 x 240 |
|---|---|
| Max. efficiency [%]: | 94 |
| Communication type: | VE.Bus, VE.Net |
| Weight [kg]: | 28 |
| Dimensions [mm]: | 444.0 x 328.0 x 240.0 |
| Input voltage DC [V] : | 24 |
|---|---|
| Input voltage range DC [V]: | 19 - 33 |
| Peak power [W]: | 10000 |
| Power [W]: | 4000 |
| Feed-in phases: | 1 |
