Inverters

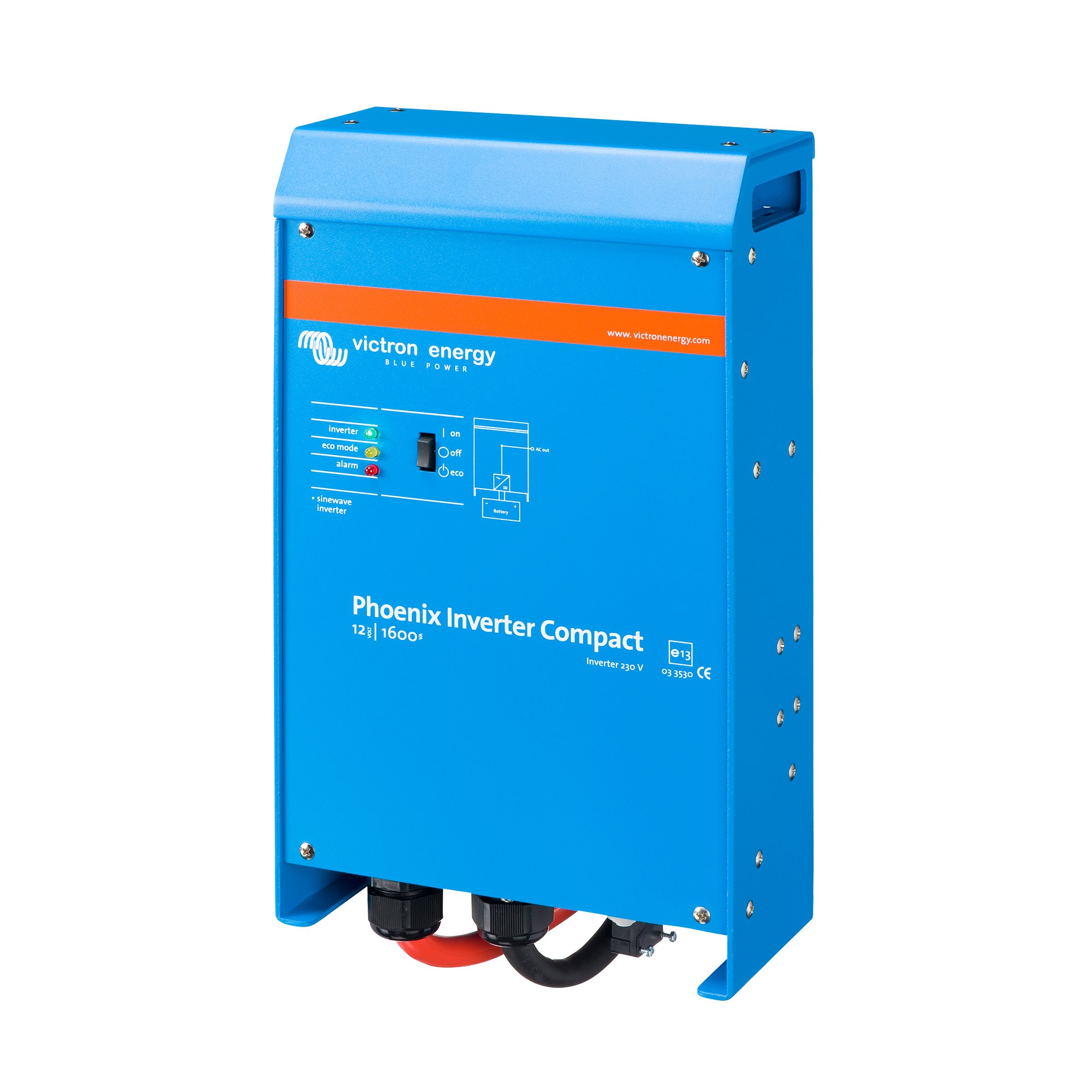

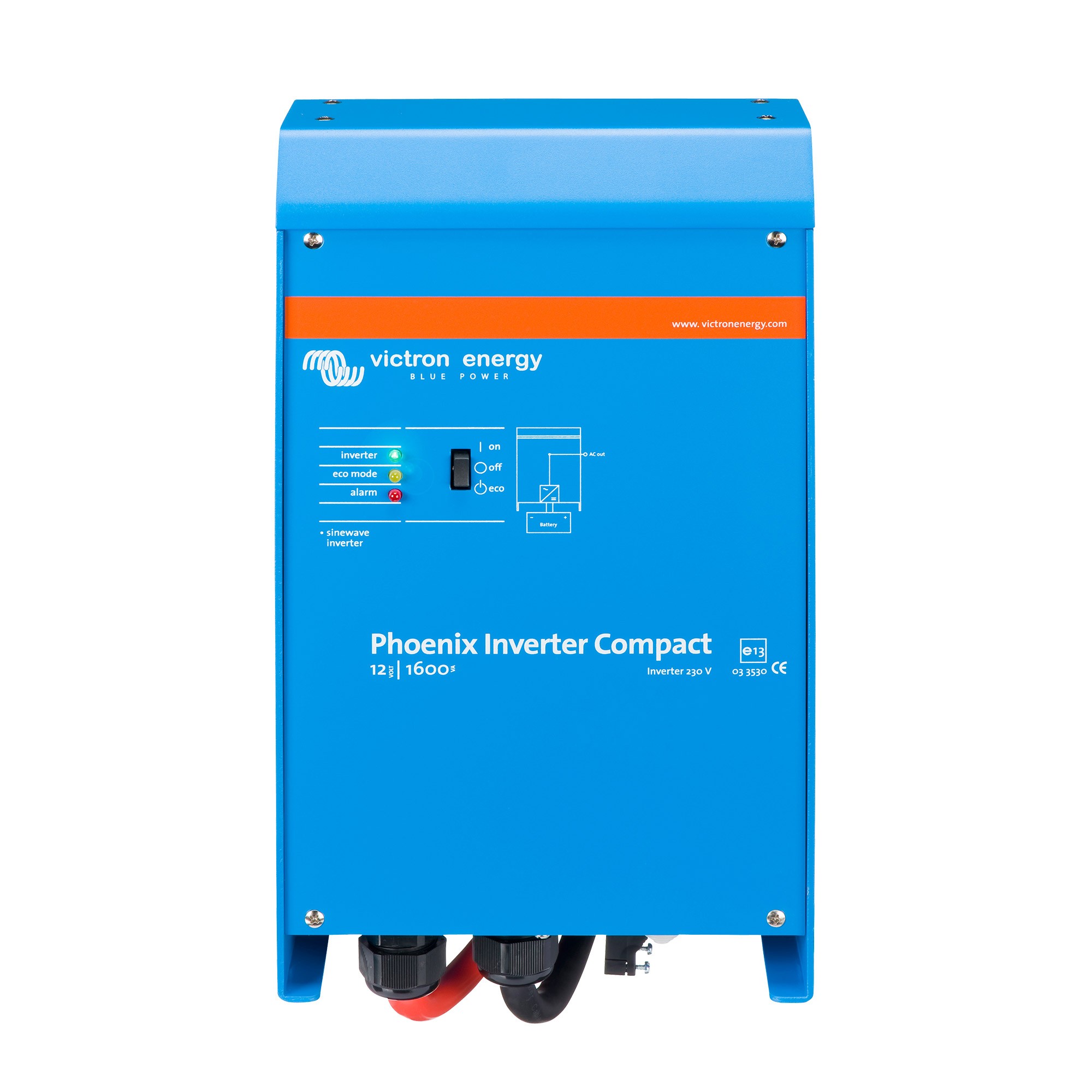

Phoenix Compact Inverter 12/1600 230 V Ve.Bus Victron Energy
Manufacturer:
INDEX: CIN121620000
The Phoenix Inverter Compact is a pure sine wave inverter with a high efficiency. It is developed for professional duty and suitable for the wide range of applications. The Phoenix Inverters Compact is available from 1200VA up to 2000VA in 12V or 24V.
Models: 12 / 24 Volt
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel and 3-phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
| Peak power [W]: | 3000 |
|---|---|
| Input voltage range DC [V]: | 9.5 - 17 |
| Input voltage DC [V] : | 12 |
| Feed-in phases: | 1 |
| Power [W]: | 1300 |
| Communication type: | VE.Bus, VE.Net |
|---|---|
| Max. efficiency [%]: | 92 |
| Dimensions WxHxD [mm]: | 214 x 375 x 110 |
