Inverters

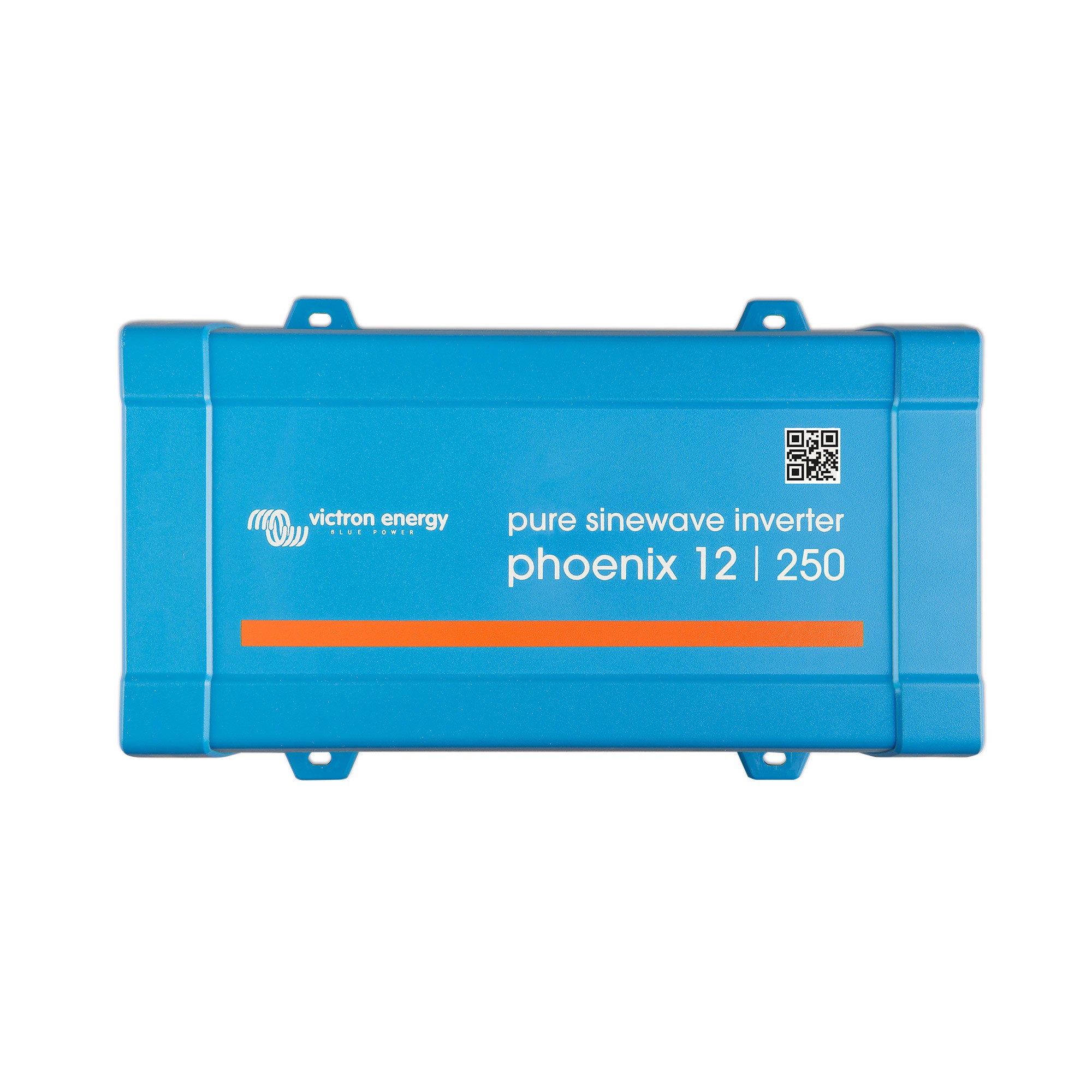

Phoenix SCHUKO Inverter 12/250 230 V VE.Direct Victron Energy
Manufacturer: VICTRON ENERGY
INDEX: PIN121251200
Inverters allow you to power domestic equipment - requiring 230 V/120 V AC - using "leisure"or "automotive" batteries rated at 12 V, 24 V or 48 V DC.
Models: 250 VA, 375 VA, 500 VA, 800 VA, 1200 VA
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15 W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
| Dimensions WxHxD [mm]: | 260 x 165 x 86 |
|---|---|
| Max. efficiency [%]: | 87 |
| Communication type: | VE.Direct |
| Weight [kg]: | 2.6 |
| Dimensions [mm]: | 260.0 x 165.0 x 86.0 |
| Input voltage DC [V] : | 12 |
|---|---|
| Input voltage range DC [V]: | 9.2 - 17 |
| Low voltage load disconnect [V]: | 9.3 |
| Low voltage load reconnect [V]: | 10.9 |
| Peak power [W]: | 400 |
| Power [W]: | 200 |
| Feed-in phases: | 1 |
