Phoenix SCHUKO Inverter 12/800 230 V VE.Direct Victron Energy
Manufacturer: VICTRON ENERGY
INDEX: PIN121801200

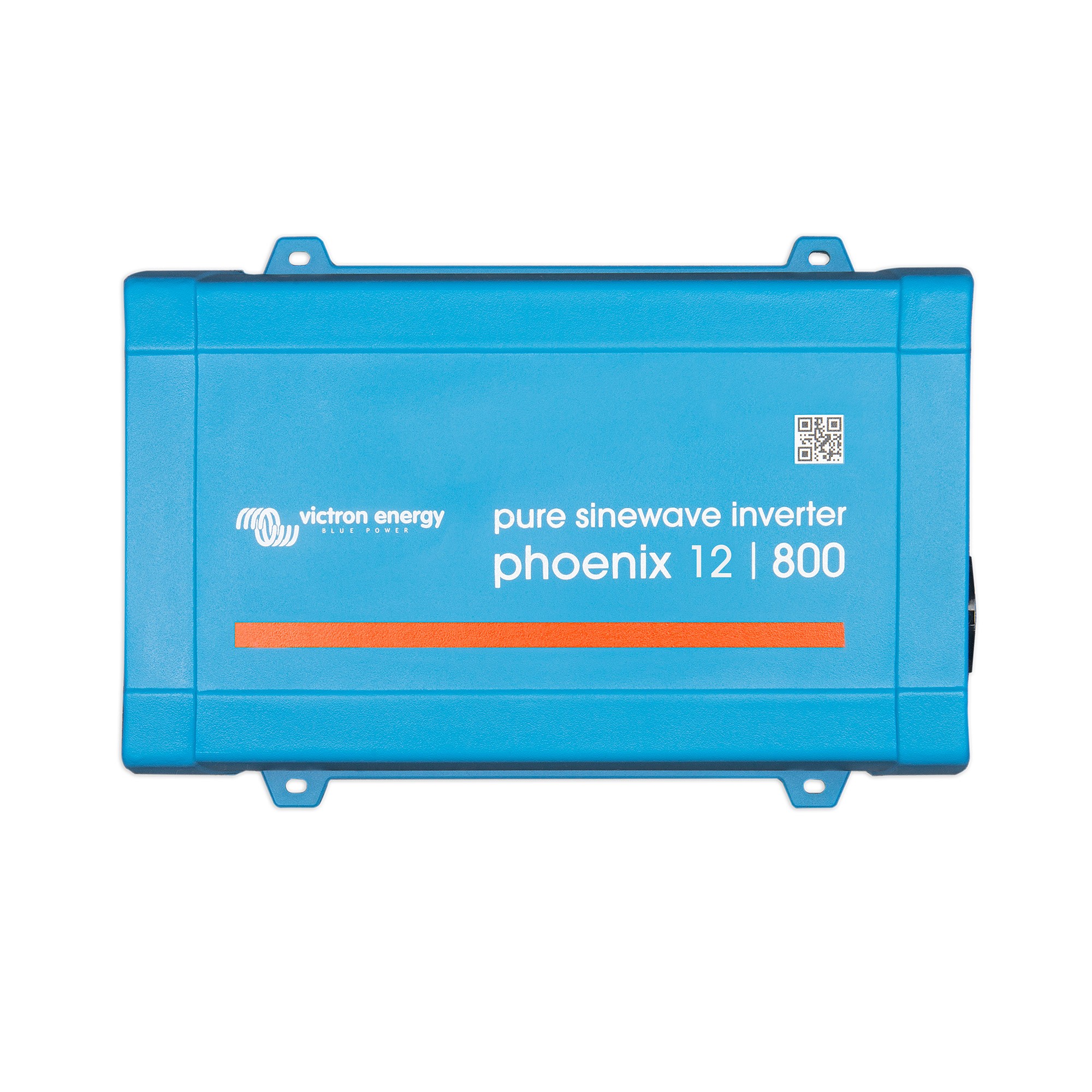

The Phoenix Inverter is a pure sine wave converter with a high efficiency. It is developed for professional duty and suitable for the wide range of applications.
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
| Dimensions WxHxD [mm]: | 305 x 216 x 105 |
|---|---|
| Max. efficiency [%]: | 90 |

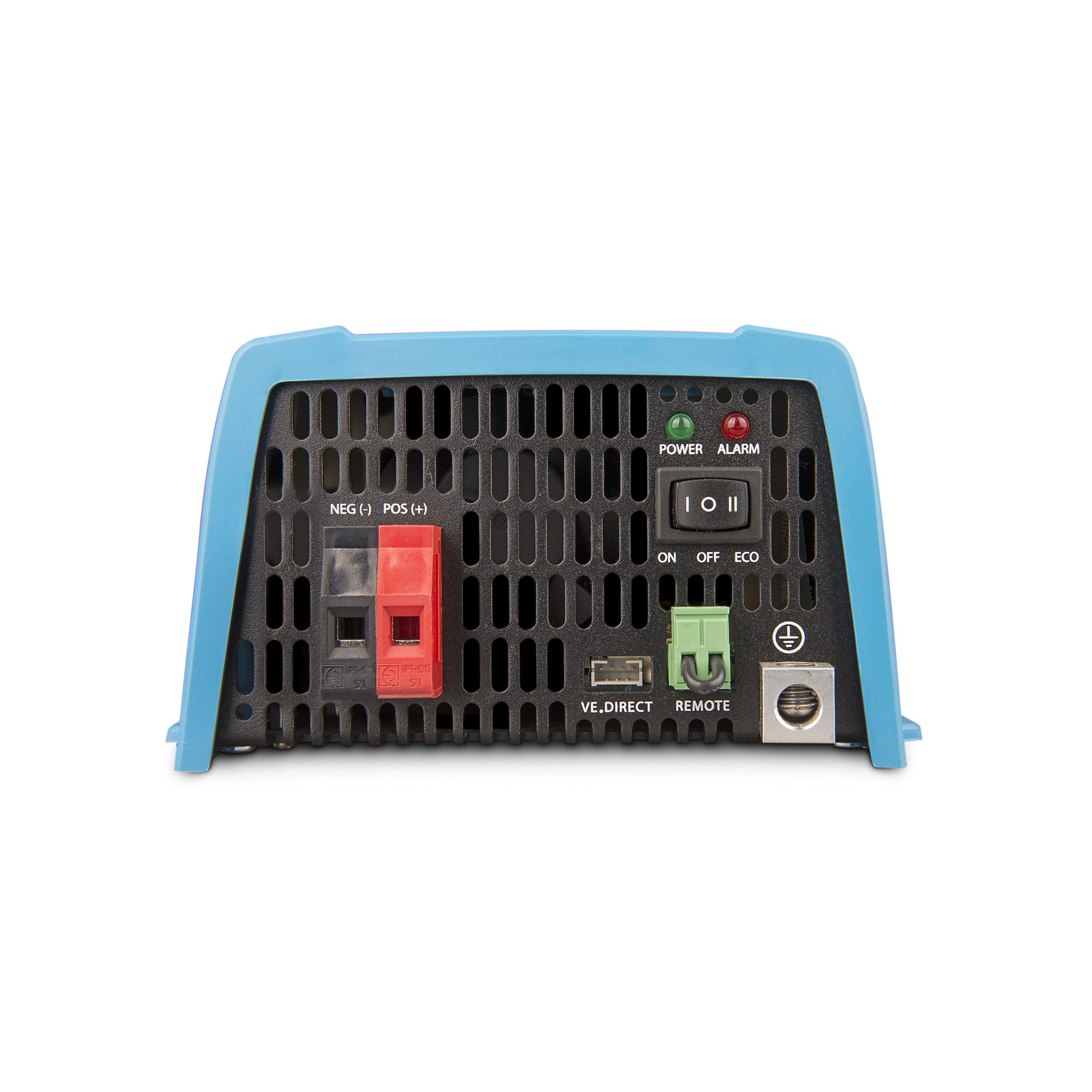

| Communication type: | VE.Direct |
| Weight [kg]: | 6 |
| Dimensions [mm]: | 305.0 x 216.0 x 105.0 |
| Input voltage DC [V] : | 12 |
|---|---|
| Input voltage range DC [V]: | 9.2 - 17 |
| Low voltage load disconnect [V]: | 9.3 |
| Low voltage load reconnect [V]: | 10.9 |
| Peak power [W]: | 1500 |
| Power [W]: | 650 |
| Feed-in phases: | 1 |
