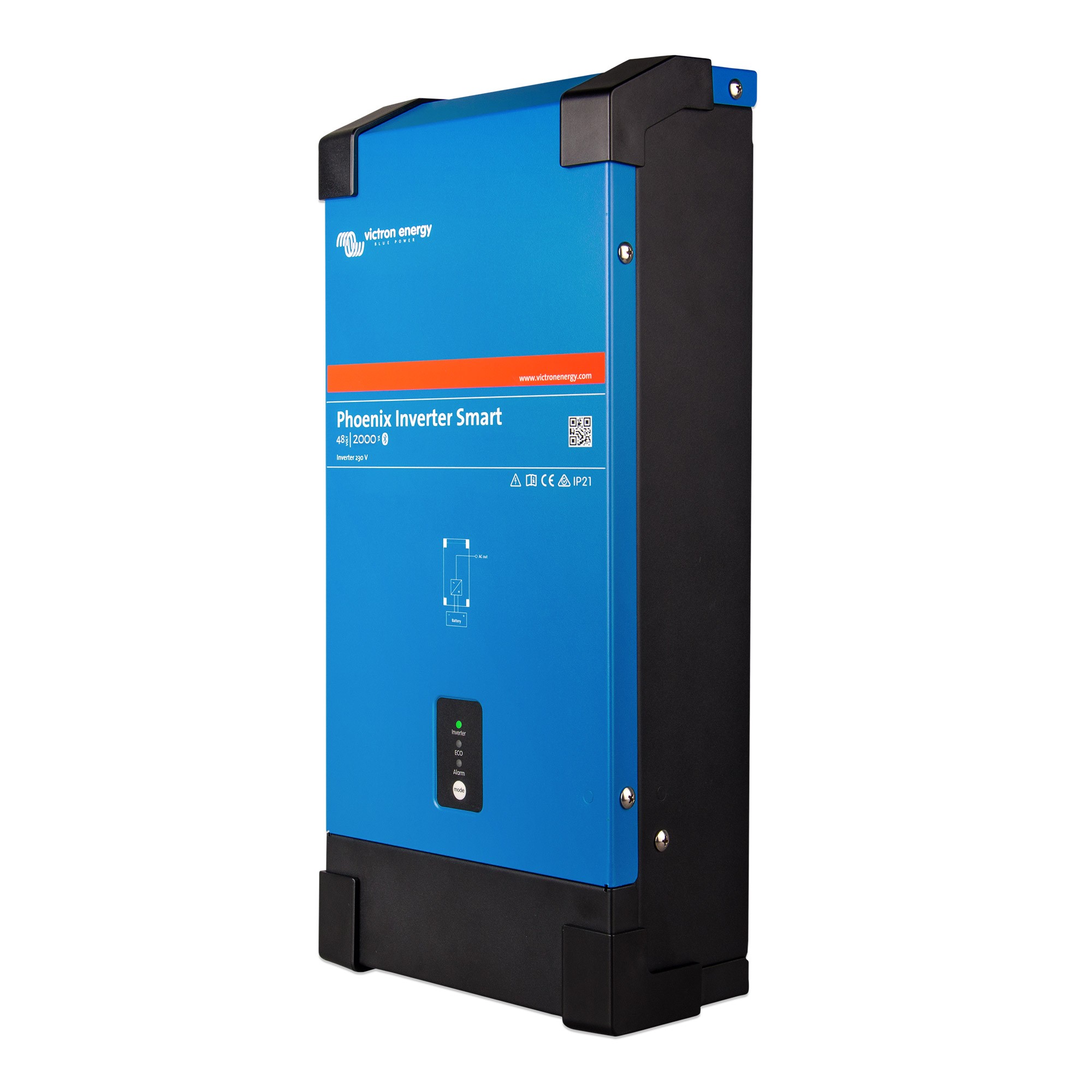

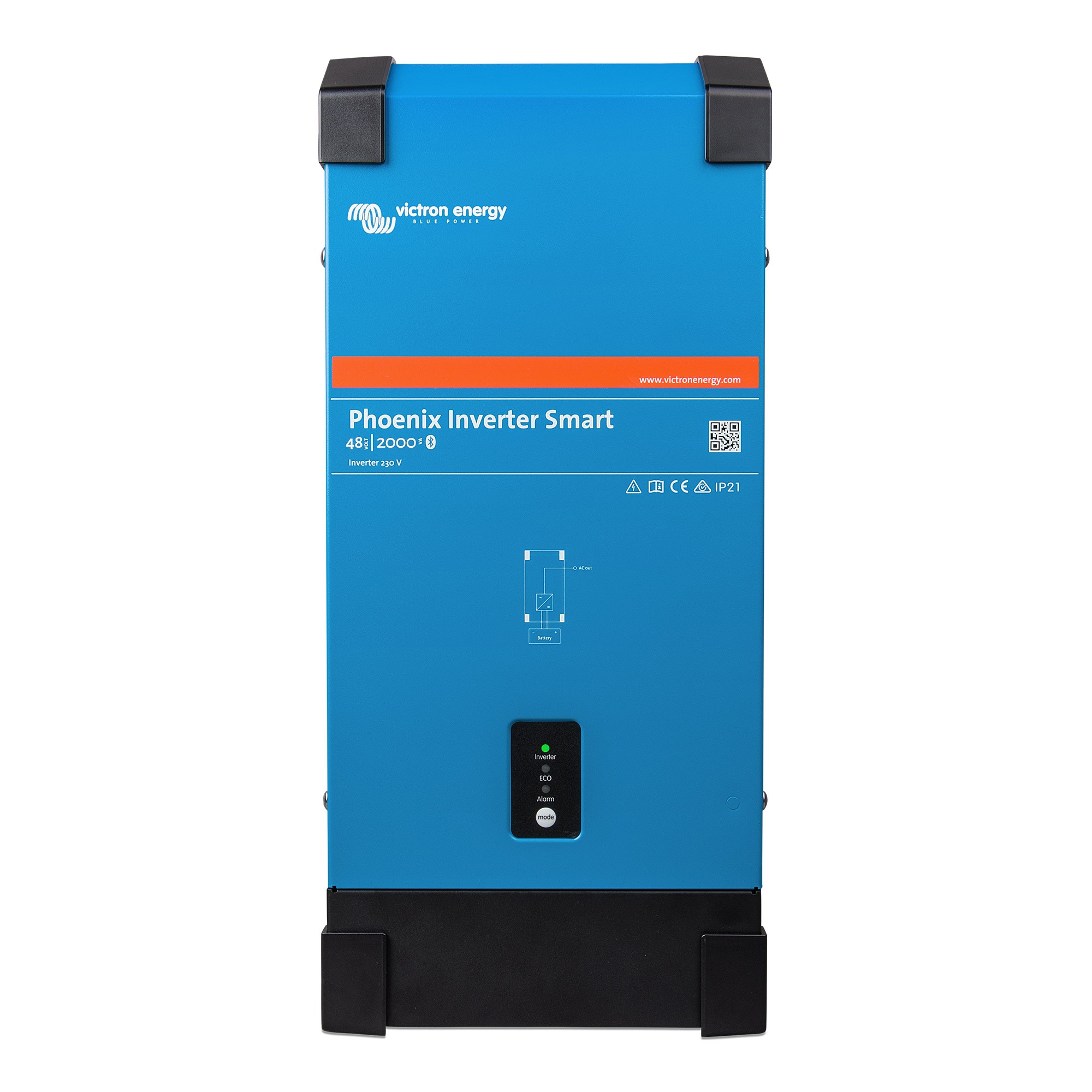

Phoenix Smart 48/2000 230 V Victron Energy inverter
Manufacturer: VICTRON ENERGY
INDEX: PIN482201000
The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600 VA, 2000 VA and 3000 VA for 12, 24 or 48 V systems.
It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.

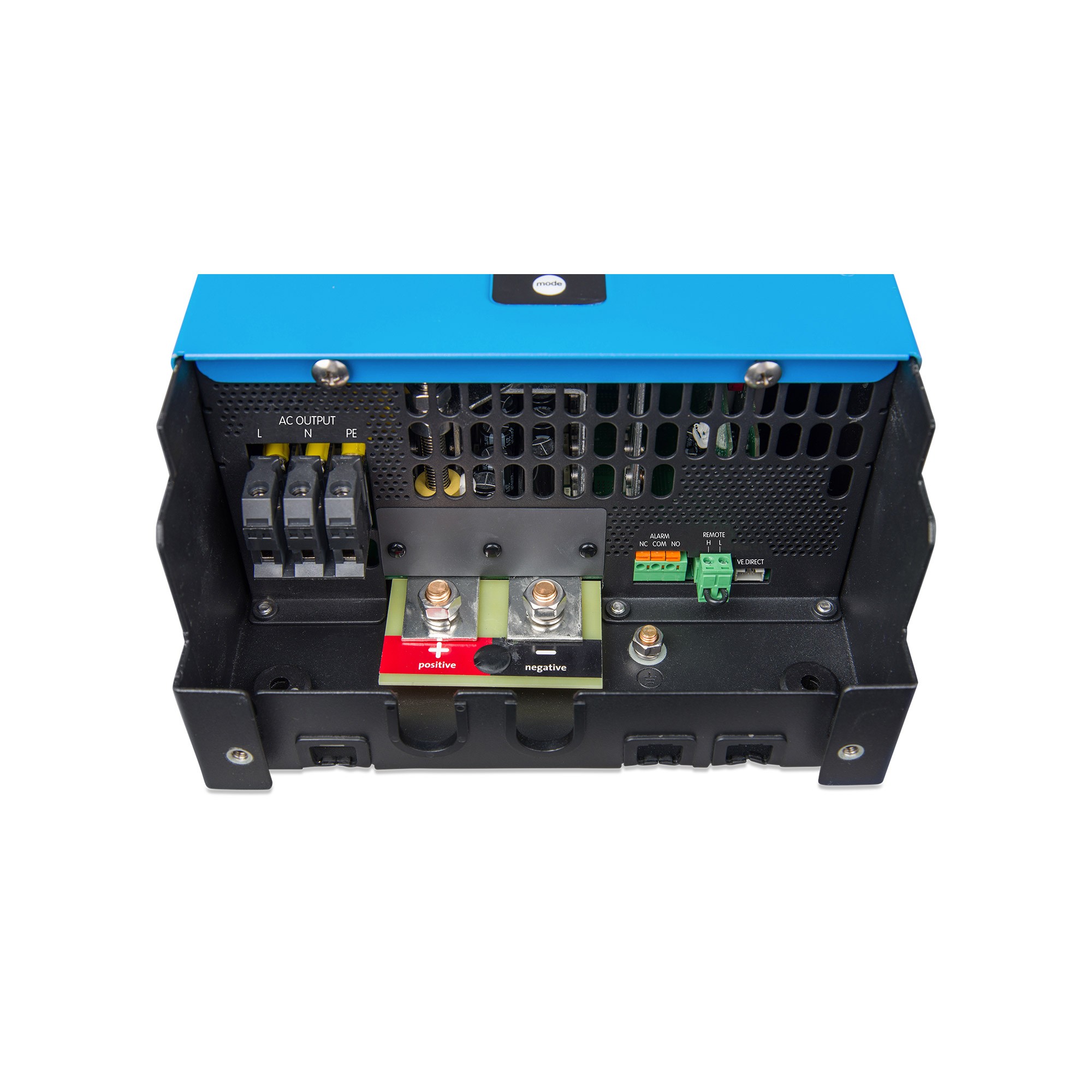

Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish. Bluetooth is built-in, and makes setting up your high power inverter easier than ever before. Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.
Models: 12 / 24 / 48 Volt
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
| Dimensions WxHxD [mm]: | 219 x 485 x 125 |
|---|---|
| Max. efficiency [%]: | 94 |
| Communication type: | VE.Direct, Bluetooth |
| Weight [kg]: | 13.2 |
| Dimensions [mm]: | 485.0 x 219.0 x 125.0 |
| Input voltage DC [V] : | 48 |
|---|---|
| Input voltage range DC [V]: | 37.2 - 68 |
| Peak power [W]: | 4000 |
| Power [W]: | 1600 |
| Feed-in phases: | 1 |
