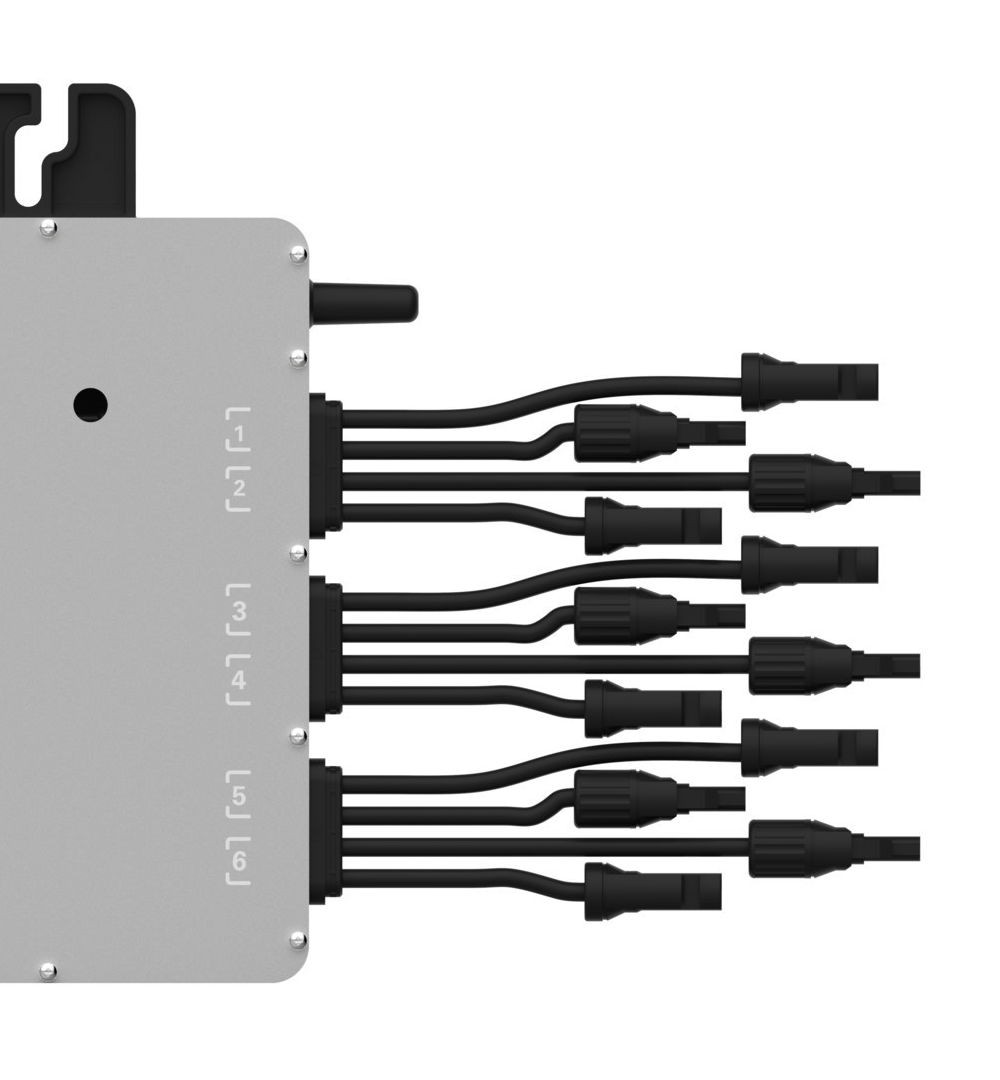

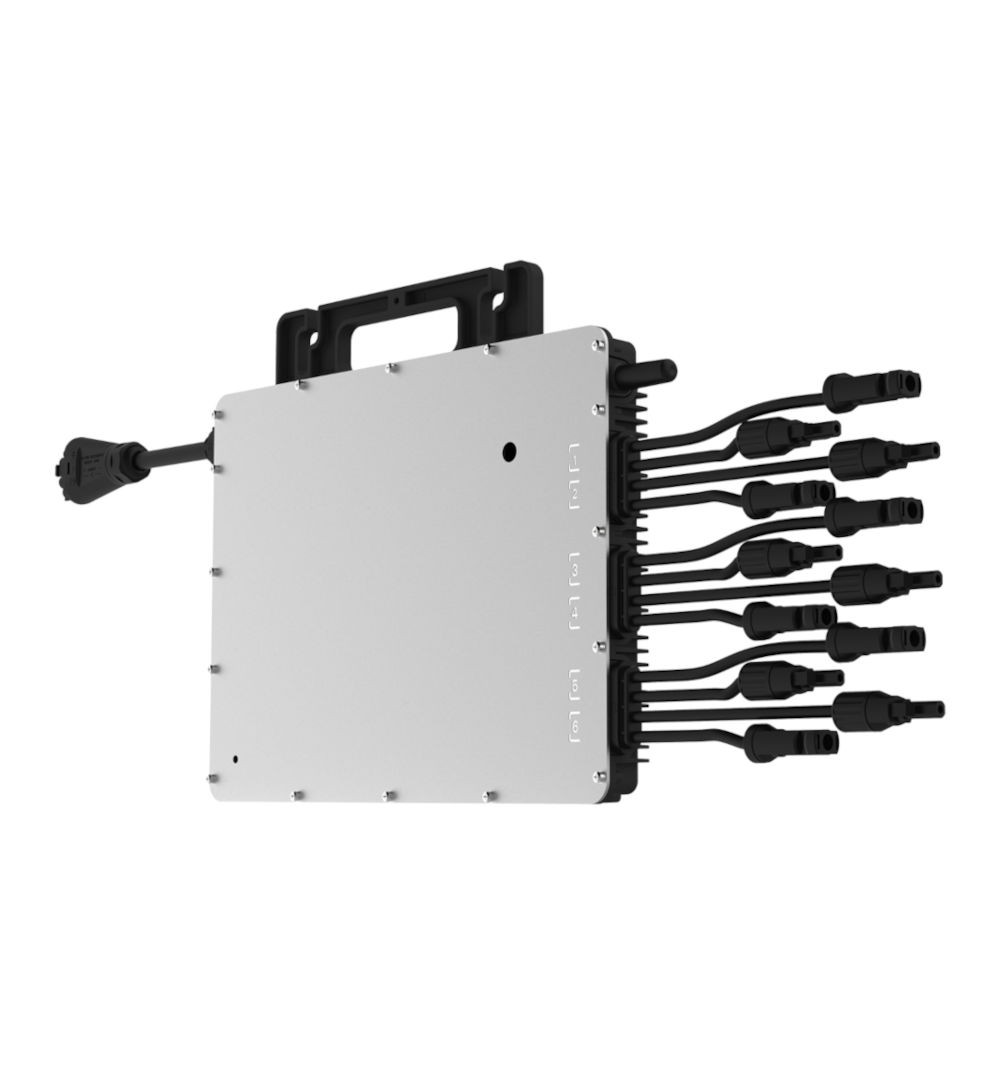

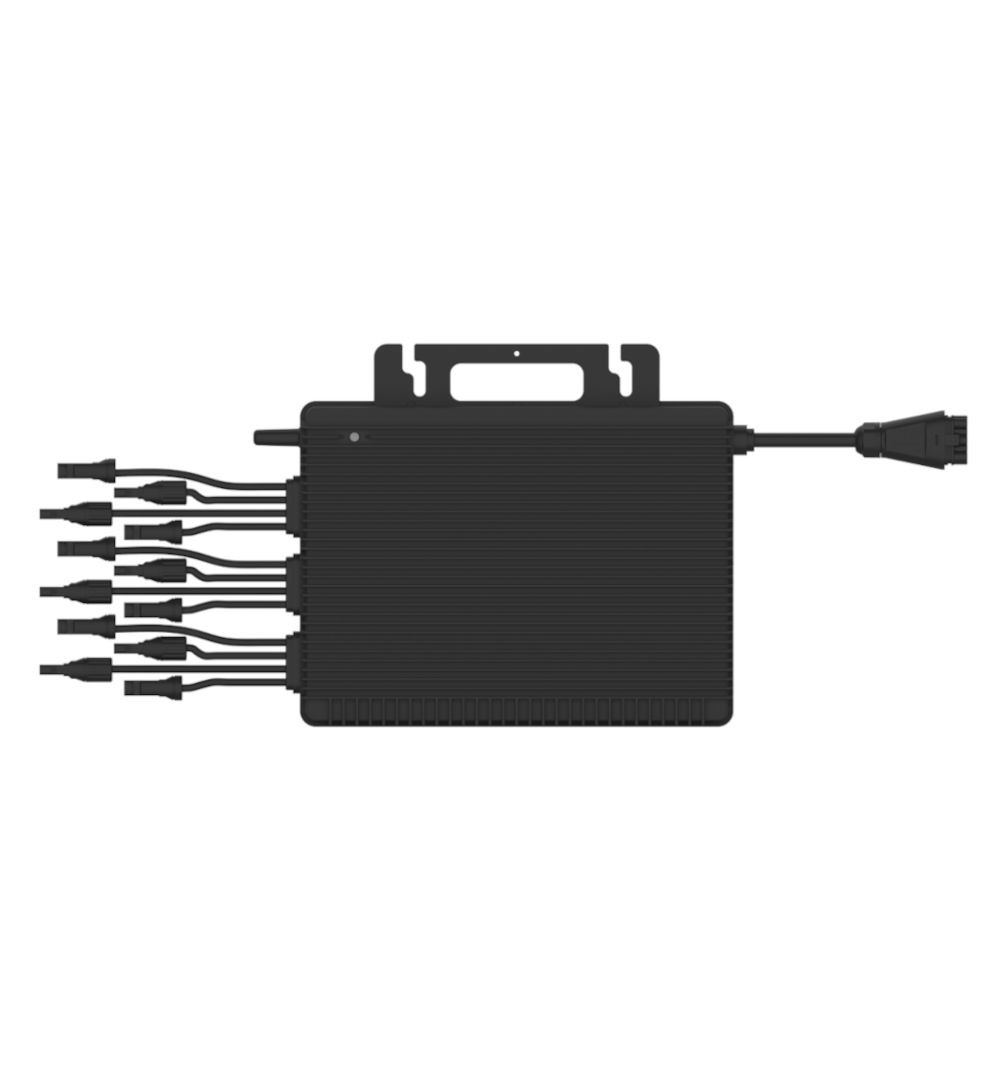

Photovoltaic microinverter HMT-2250-6T Hoymiles
Manufacturer: Hoymiles
INDEX: HOY HMT-2250-6T
The world’s first three-phase microinverter with Reactive Power Control, can be widely used in the general 230V/400V three-phase electric power distribution. Each microinverter, with up to 6 PV modules connected, simplifies the installation process and ranks among the most cost effective solutions for commercial and industrial installations.
Features that distinguish the product:
- Three-phase output, more suitable for commercial and industrial applications
- Each microinverter supports up to 6 modules, faster installation and lower cost
- Up to 2250VA output, adapted to mainstream high-powered PV modules
- With Reactive Power Control, meets the requirements of EN50549-1:2019, VDE-AR-N 4105:2018, TOR Erzeuger : 2019-12, etc.
- The Sub-1G wireless solution enables the stable communication when installed for commercial and industrial stations
| Dimensions WxHxD [mm]: | 330 x 250 x 37 |
|---|---|
| Type: | Microinwerter |
| Weight [kg]: | 6 |
| Dimensions [mm]: | 250.0 x 330.0 x 35.0 |
| Maximum short-circuit current per MPPT [A]: | 15 |
|---|---|
| Maximum PV power [W]: | 470 |
| Max. voltage [V]: | 60 |
| Min. MPPT voltage [V]: | 16 |
| Max. MPPT voltage [V]: | 60 |
| Initial feed-in voltage [V]: | 22 |
| Number of MPPT inputs: | 3 |
| Maximum current per one MPPT [A]: | 45423 |
| Supported number of PV modules: | 6 |
| Power [W]: | 2250 |
|---|---|
| Feed-in phases: | 3 |
| Max. output current [A]: | 3.26 |
| Max. efficiency [%]: | 96.5 |
|---|
