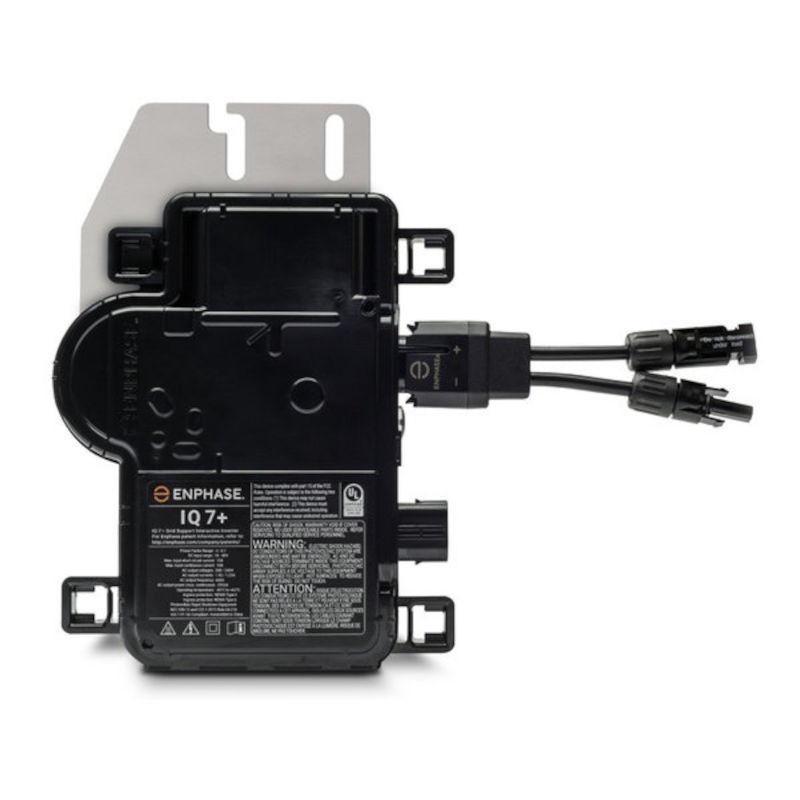

Photovoltaic microinverter IQ 7+ Enphase
Manufacturer: Enphase Energy
INDEX: IQ7PLUS-72-2-INT
The high-powered smart grid-ready Enphase IQ 7 Series Microinverters™ with Enphase EN4 bulkhead dramatically simplify the installation process while achieving the highest system efficiency.
Part of the Enphase IQ System, the IQ 7, IQ 7+, and IQ 7X Microinverters integrate with the Enphase IQ Envoy™, Enphase IQ Battery™, and the Enphase Enlighten™ monitoring and analysis software.
IQ Series Microinverters extend the reliability standards set forth by previous generations and undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading warranty of up to 25 years.
Features that distinguish the product:
- Easy to Install
- Lightweight and simple
- Faster installation with improved, lighter two-wire cabling
- Built-in rapid shutdown compliant (NEC 2014, 2017, & 2020)
- Integrated Enphase EN4 bulkhead allows for direct connection to PV modules with TE PV4S SOLARLOK connectors or other intermatable connectors¹
- Optimized for high-powered 60-cell, 72-cell², and 96-cell³ modules
- More than a million hours of testing
- Class II double-insulated enclosure
- UL listed
- Complies with advanced grid support, voltage and frequency ride-through requirements
- Remotely updates to respond to changing grid requirements
- Configurable for varying grid profiles
- Meets CA Rule 21 (UL 1741-SA)
| Type: | Microinwerter |
|---|---|
| Weight [kg]: | 1.08 |
| Dimensions [mm]: | 175 x 212 x 32 |
| Maximum short-circuit current per MPPT [A]: | 15 |
|---|---|
| Maximum PV power [W]: | 440 |
| Max. voltage [V]: | 60 |
| Min. MPPT voltage [V]: | 22 |
| Max. MPPT voltage [V]: | 60 |
| Initial feed-in voltage [V]: | 16 |
| Max. current [A]: | 15 |
| Number of MPPT inputs: | 1 |
| Supported number of PV modules: | 1 |
| Power [W]: | 290 |
|---|---|
| Feed-in phases: | 1 |
| Max. efficiency [%]: | 96.5 |
|---|
