Solar PV modules max 200 W
Photovoltaic module 40 W Silver Frame Celline
Manufacturer: Celline
INDEX: CL040-12P

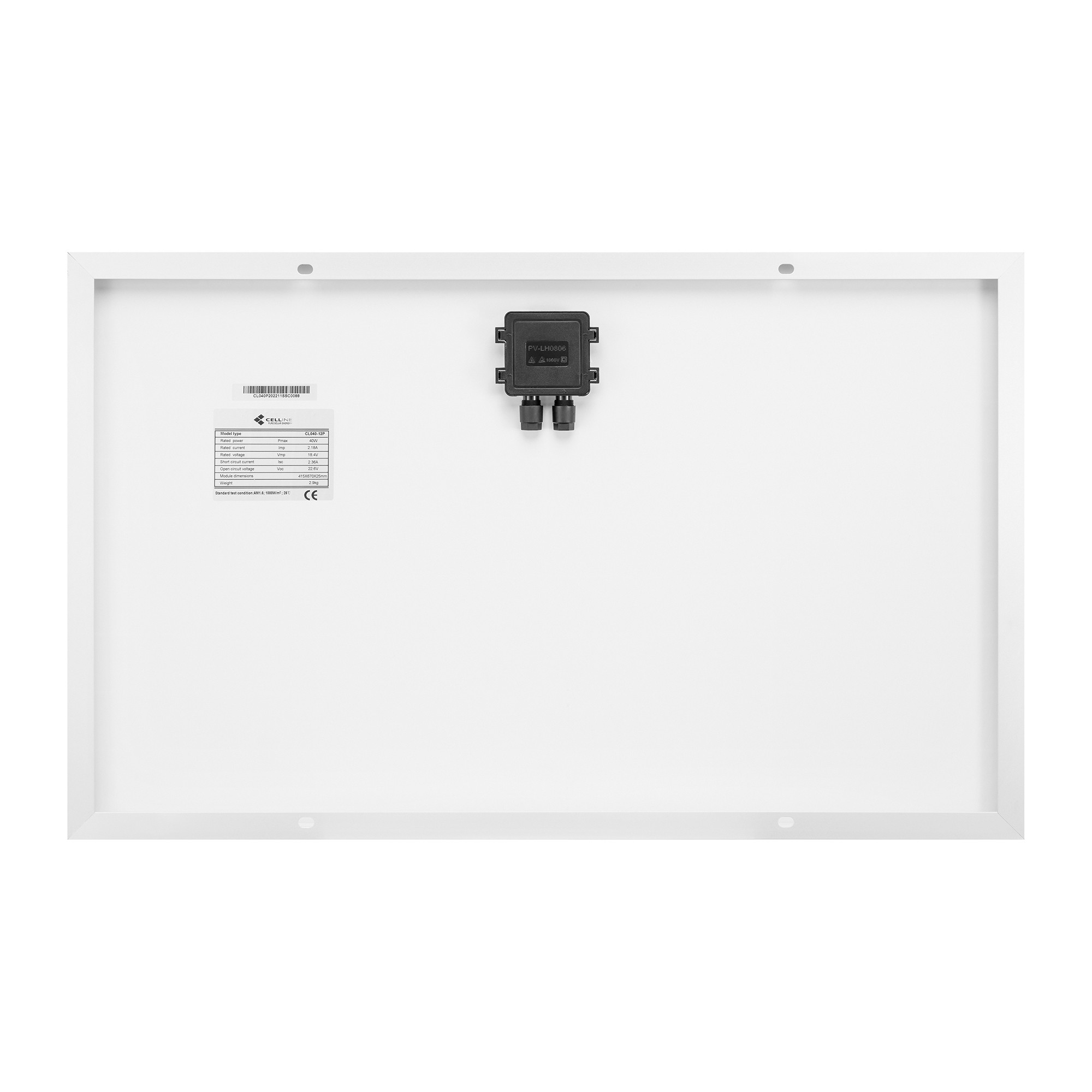

The presented module is made up of thirty six polycrystalline photovoltaic cells placed on a rigid and light composite substrate protected against damage by hard anti-reflective glass. The ultra-transparent layer is not a barrier to the sun’s radiation. The contacts are led out in the form of a waterproof junction box.
Solar batteries convert solar energy into electricity. They are used to charge batteries or to directly power electrical equipment. A solar panel is one of the basic elements of a photovoltaic system. We can easily put together devices that will allow us to take advantage of free renewable energy.
The most common photovoltaic systems include:
- solar battery (photovoltaic module)
- charge controller
- battery
- inverter (if we want to produce 230 V AC)
Use of photovoltaic cells:
- charging small batteries up to 14 Ah
- charging small electronic devices
- power supply for LED lighting points
Warranty:
- 3 years
Service life:
- 90% power after 10 years
- 80% power after 25 years
| Dimensions WxHxD [mm]: | 670 x 415 x 25 |
|---|---|
| PV type: | Polycrystalline |
| Colors: | Silver Frame |
| Weight [kg]: | 2.9 |
| Dimensions [mm]: | 415.0 x 670.0 x 25.0 |
| Power [W]: | 40 |
|---|---|
| Max. voltage [V]: | 1000 |
| Rated Voltage Vmpp [V]: | 18.4 |
| Open circuit voltage Uoc (V): | 22.6 |
| Short-circuit current [A]: | 2.36 |
| Rated current [A]: | 2.18 |
| Voltage temperature coefficient [%/°C]: | -0.32 |
