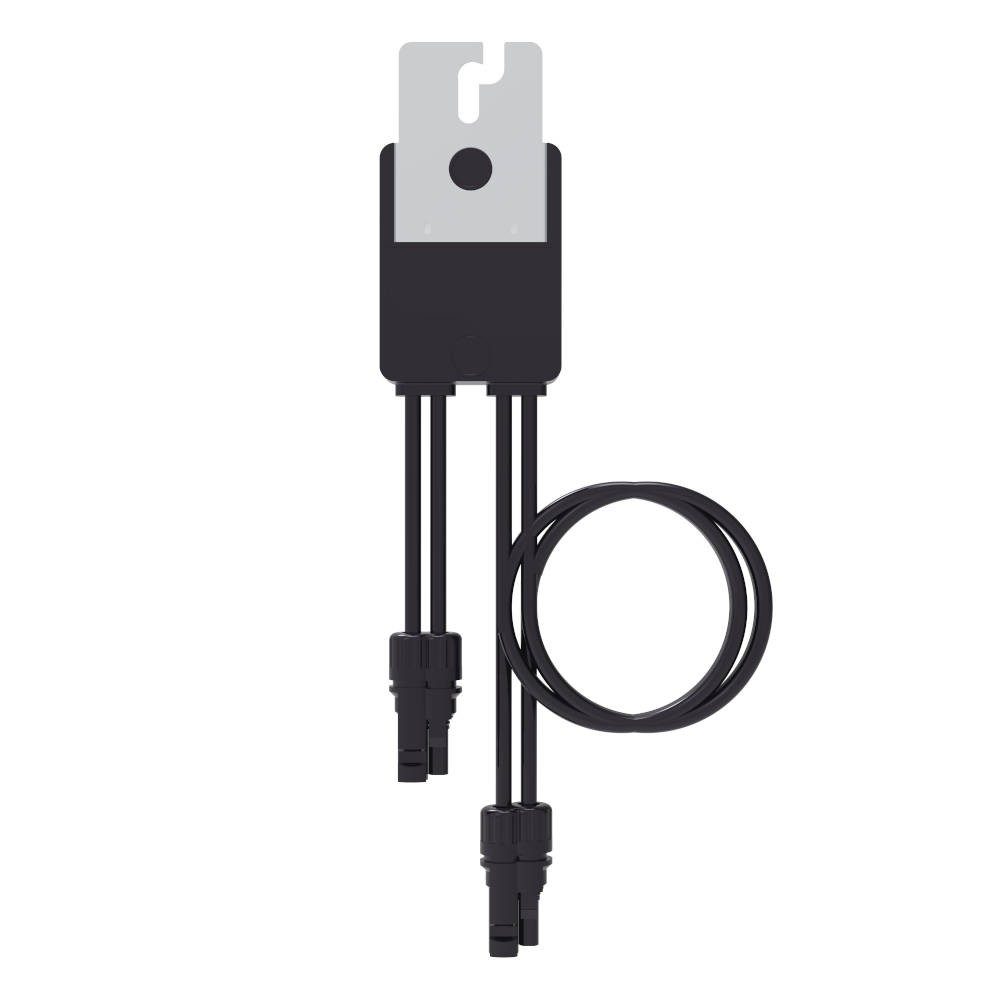

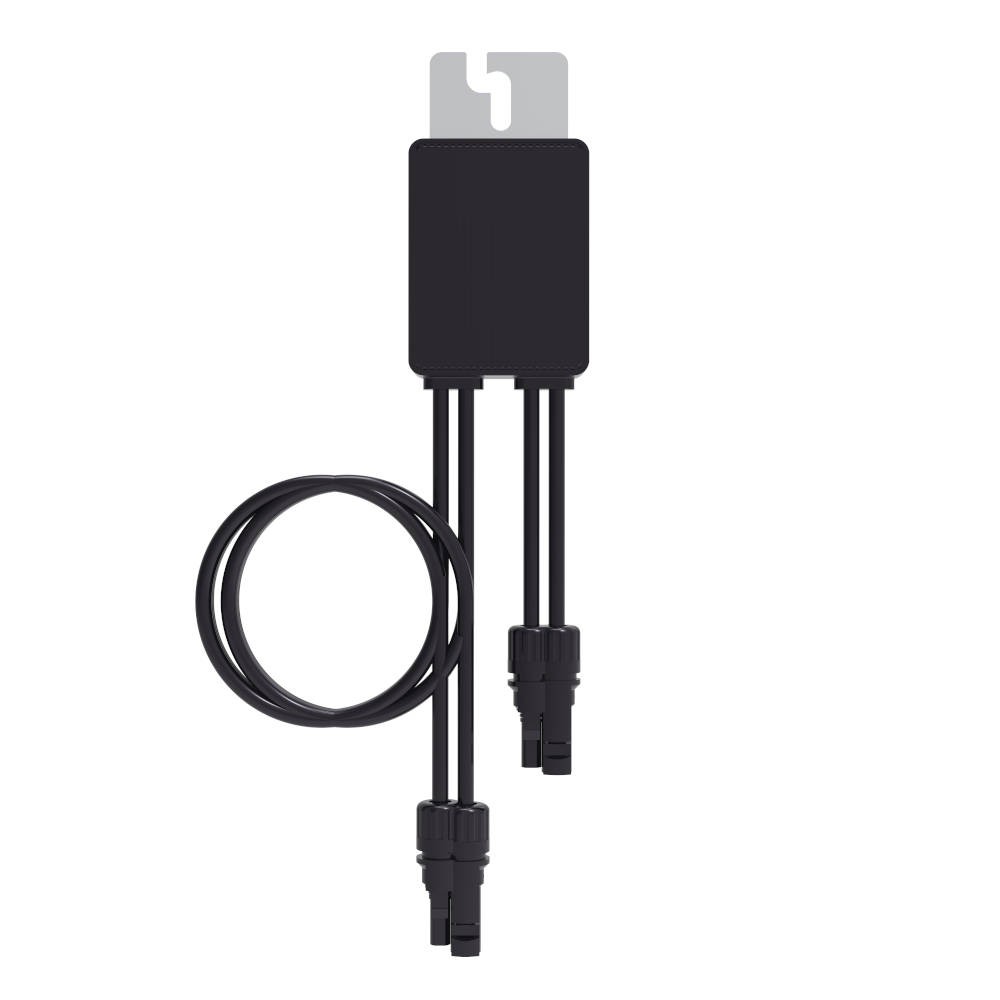

Power optimiser Sun-2000-600W-P Huawei
Manufacturer: Huawei
INDEX: SUN2000-600W-P
Your photovoltaic installation is not fully sunlit, or one of the panels is partially obscured? The solution will be to use the Huawei Sun2000-600W-P optimizer.
The product is distinguished by its versatility, which significantly facilitates the selection of installation elements. Optimizer quickly pairs with the inverter (less than 1.5 min.) and automatically maps the modules, so that you know the operating parameters of each of the modules that are equipped with the optimizer. Using an optimizer allows for quick diagnostics and trouble-free and safe installation service.
The installation of the optimizer will provide greater efficiency, active protection and higher comfort of PV installation operation.
Using full optimization:
- Optimizers reduce the impact of mismatches and bypass the module in the event of a failure
- You have access to module-level installation monitoring
- You can design longer PV chains
- If the inverter fails or is switched off, the voltage on the optimizers will drop to 0 V
The Huawei Sun2000-600W-P optimizer is compatible with the Sun2000 inverters of the L1, M1, M2 and M3 series.
| Dimensions WxHxD [mm]: | 75 x 140 x 28 |
|---|---|
| Weight [kg]: | 0.6 |
| Dimensions [mm]: | 75.0 x 140.0 x 28.0 |
| Number of optimisers per chain: | 4 - 35 |
|---|---|
| Power [W]: | 600 |
| Max. voltage [V]: | 80 |
| Min. MPPT voltage [V]: | 10 |
| Max. MPPT voltage [V]: | 80 |
| Max. output current [A]: | 15 |
| Euro efficiency [%]: | 99 |
|---|---|
| Max. efficiency [%]: | 99.5 |
| Chain length - HD-WAVE and single phase inverter / number of optimisers and PV modules: | - |
|---|---|
| Chain length - three-phase inverter / number of optimisers and PV modules: | - |
| Chain length - three-phase inverter for 277/480 V grid / number of optimisers and PV modules: | - |
| Chain length - three-phase inverter from 15 kW / number of PV modules: | - |
| Chain length - three-phase inverter from 15 kW / number of optimisers: | - |
| Chain length of PV modules - three-phase inverter from 16 kW [pcs].: | - |
| Chain length of PV modules - three-phase inverter from 25 kW [pcs].: | - |
| Chain length of power optimisers - three-phase inverter from 16 kW and above [pcs].: | - |
| Chain length of power optimisers - three-phase inverter from 25 kW [pcs.]: | - |
