SOL-100 T2 1/1 prefabricated DC Consumer Units
Manufacturer: iONTEC
INDEX: SOL-100

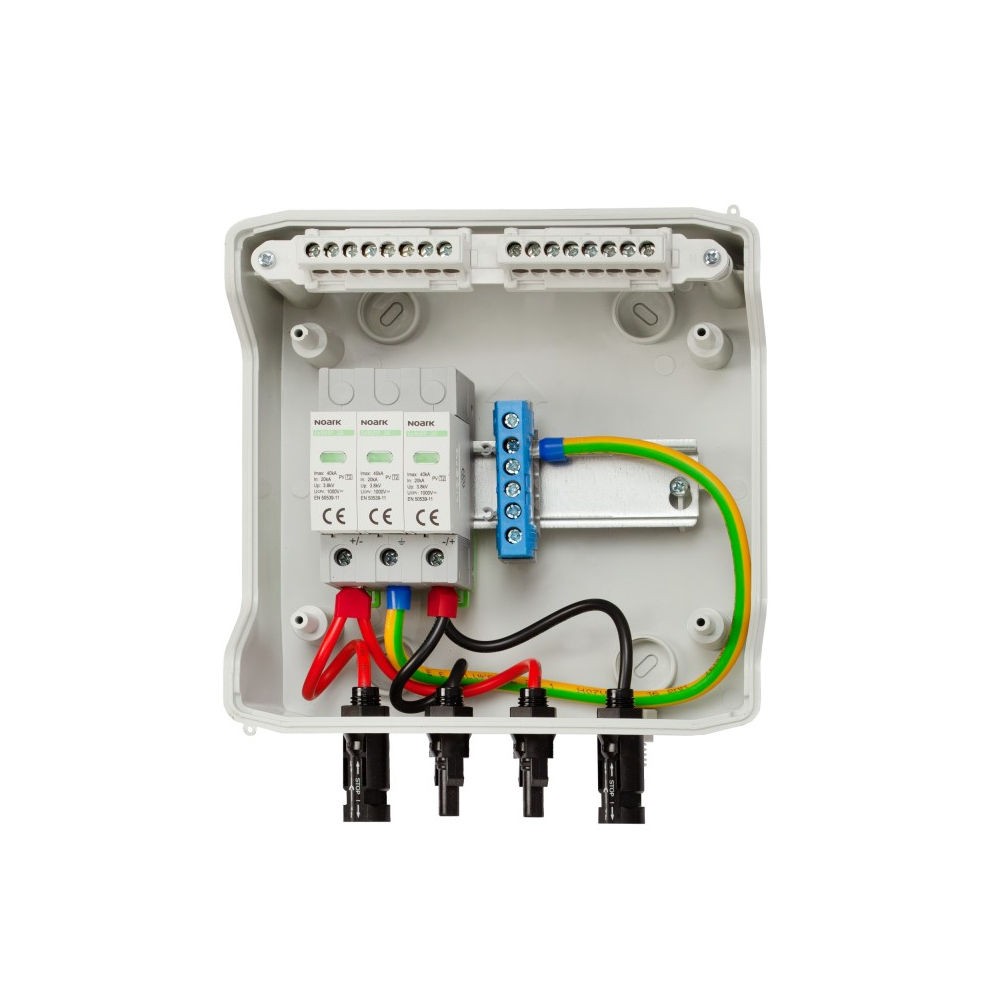

The T2 DC electrical switchgear provides full protection of DC circuits of a photovoltaic installation from the effects of surges. Its design is suitable for surface mounting.
The product consists of a housing, transparent door, TH-35 mm rails, N+PE terminals, front cover with cut-outs for apparatus, chokes, caps, and mounting parts.
Electrical and mechanical parameters of the enclosure:
- Designed for surface mounting
- Manufactured in accordance with EN 60670, EN 62208
- Rated current In 63 A
- IP65 rating
- Protection class II
- Rated insulation voltage Ui: 690 V AC, 1000 V DC
- Glow wire test: 650°C
- Impact resistance: IK08
- Operating temperature: -25°C to +60°C
- Halogen-free recyclable plastic
NOARK Ex9UEP 20 3P 1000 V DC surge protector:
- PV T2 (Class II, Type 2, C)
- Designed in compliance with 50539-11
- Rated discharge current In: 20 kA (8/20 μs)
- Maximum discharge current Imax: 40 kA (8/20 μs)
- Size: 3 modules
- Rated switching voltage Un: 1000 V
- Thermal protection function
- Optional auxiliary contact to indicate insert status
| Dimensions WxHxD [mm]: | 201 x 202 x 120 |
|---|---|
| Number of strings: | 1 |
| Switchboards: | 8 polowa |
| Weight [kg]: | 1.16 |
| Dimensions [mm]: | 202.0 x 235.0 x 137.0 |
| Type of protection: | DC |
|---|---|
| Type of surge arrester DC: | T2 |
| Switchgear type: | Prefabricated |
| Max. voltage [V]: | 1000 |
| Number of MPPT inputs: | 1 |
