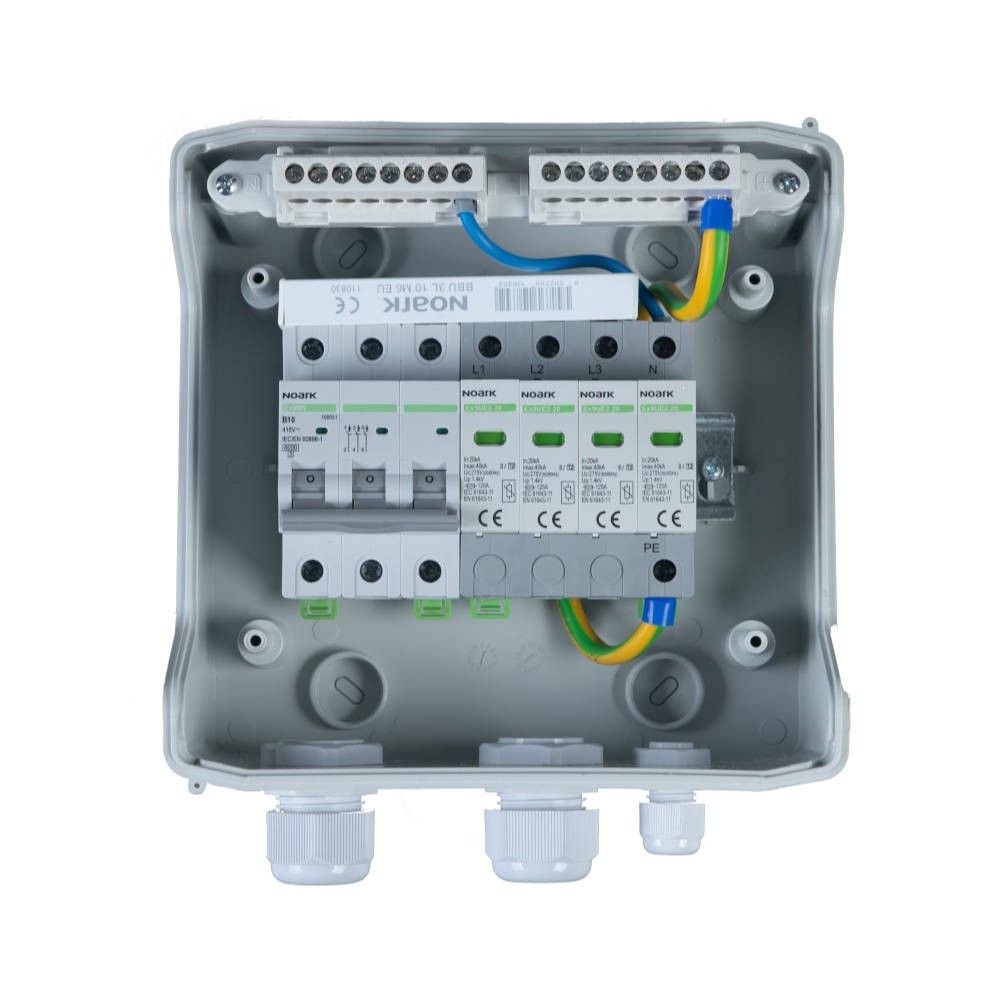

SOL-204 T2 16 A prefabricated AC 3F Switchboard
Manufacturer: iONTEC
INDEX: SOL-204
The T2 AC electrical switchgear provides full protection of DC circuits of a photovoltaic installation from the effects of surges. Its design is suitable for surface mounting.
The product consists of a housing, transparent door, TH-35 mm rails, N+PE terminals, front cover with cut-outs for apparatus, chokes, caps, and mounting parts.
Electrical and mechanical parameters of the enclosure:
- Designed for surface mounting
- Manufactured in accordance with EN 60670, EN 62208
- Rated current In 63 A
- IP65 rating
- Protection class II
- Rated insulation voltage Ui: 690 V AC, 1000 V DC
- Glow wire test: 650°C
- Impact resistance: IK08
- Operating temperature: -25°C to +60°C
- Halogen-free recyclable plastic
Overcurrent circuit breaker NOARK Ex9BN 3P:
- B curve
- Manufactured in accordance with IEC/EN 60898-1
- Rated short-circuit breaking capacity ICN: 6 kA
- Rated switching voltage 230/400 V AC
AC surge arrester NOARK Ex9UE2 20 4P 275:
- Rated discharge current In (8/20 us) per phase: 20 kA
- Continuous operating voltage Uc: 275 V per phase
- T2 (Class II, Type 2, C)
- Size: 4 modules
| Dimensions WxHxD [mm]: | 202 x 201 x 120 |
|---|---|
| Switchboards: | 8 polowa |
| Weight [kg]: | 1.57 |
| Dimensions [mm]: | 202.0 x 230.0 x 137.0 |
| Type of protection: | AC |
|---|---|
| Type of surge arrester AC: | T2 |
| Switchgear type: | Prefabricated |
| Max. current [A]: | 16 |
| Feed-in phases: | 3 |
