SOL-407 T1+T2 2/1 R prefabricated DC Switchboard
Manufacturer: iONTEC
INDEX: SOL-407

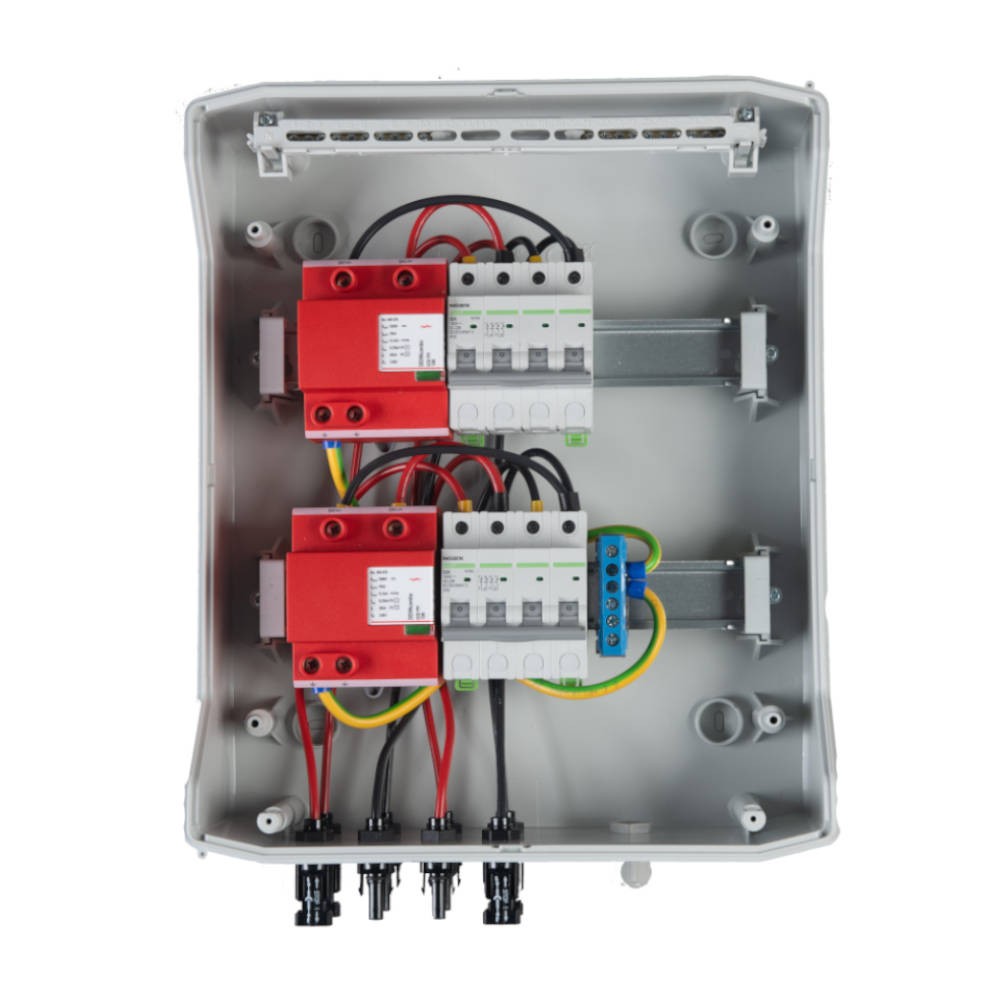

The T1+T2 DC electrical switchgear provides full protection of DC circuits of a photovoltaic installation from the effects of surges. Its design is suitable for surface mounting.
The product consists of a housing, transparent door, TH-35 mm rails, N+PE terminals, front cover with cut-outs for apparatus, chokes, caps, and mounting parts.
Electrical and mechanical parameters of the enclosure:
- Designed for surface mounting
- Manufactured in accordance with EN 60670, EN 62208
- Rated current In 63 A
- IP65 rating
- Protection class II
- Rated insulation voltage Ui: 690 V AC, 1000 V DC
- Glow wire test: 650°C
- Impact resistance: IK08
- Operating temperature: -25°C to +60°C
- Halogen-free recyclable plastic
Isolating switch disconnector DC Noark Ex9IP 1000 V 32 A:
- Manufactured in accordance with IEC/EN 60947-3
- Rated voltage: 1000 V
- Rated current: 32 A
- Size: 4 modules
- Possibility to connect a surge or undervoltage tripping device
DC DEHN Combo 1200V typ 1+2 surge protector:
- PV T1+T2 (Class I+II, Type 1+2, B+C)
- To be used in accordance with the standard: PN-HD 60364-7-712
- Rated discharge current In: 20 kA (8/20 μs)
- Voltage protection level: 3.8 kV
- Size: 4 modules
- Maximum PV voltage Ucpv: 1200 V
- Tripping time tA 25 ns
- Optional auxiliary contact to indicate insert status
| Dimensions WxHxD [mm]: | 319 x 384 x 144 |
|---|---|
| Number of strings: | 2 |
| Switchboards: | 12 polowa |
| Weight [kg]: | 4.24 |
| Dimensions [mm]: | 415.0 x 320.0 x 160.0 |
| Type of protection: | DC |
|---|---|
| Type of surge arrester DC: | T1+2 |
| Switchgear type: | Prefabricated |
| Max. voltage [V]: | 1000 |
| Number of MPPT inputs: | 2 |
