HPT inverters are a feature-rich series of 3-phase inverters designed for small and medium-sized photovoltaic installations. The HPT series are models from 3 kW to 11 kW with up to 50% DC overload capability. HPT inverters have been designed using the latest electronic components of renowned manufacturers, e.g., Fujitsu and Texas Instruments, which enabled not only the simplification of the construction and reduction of the device weight, but primarily resulted in low failure frequency.

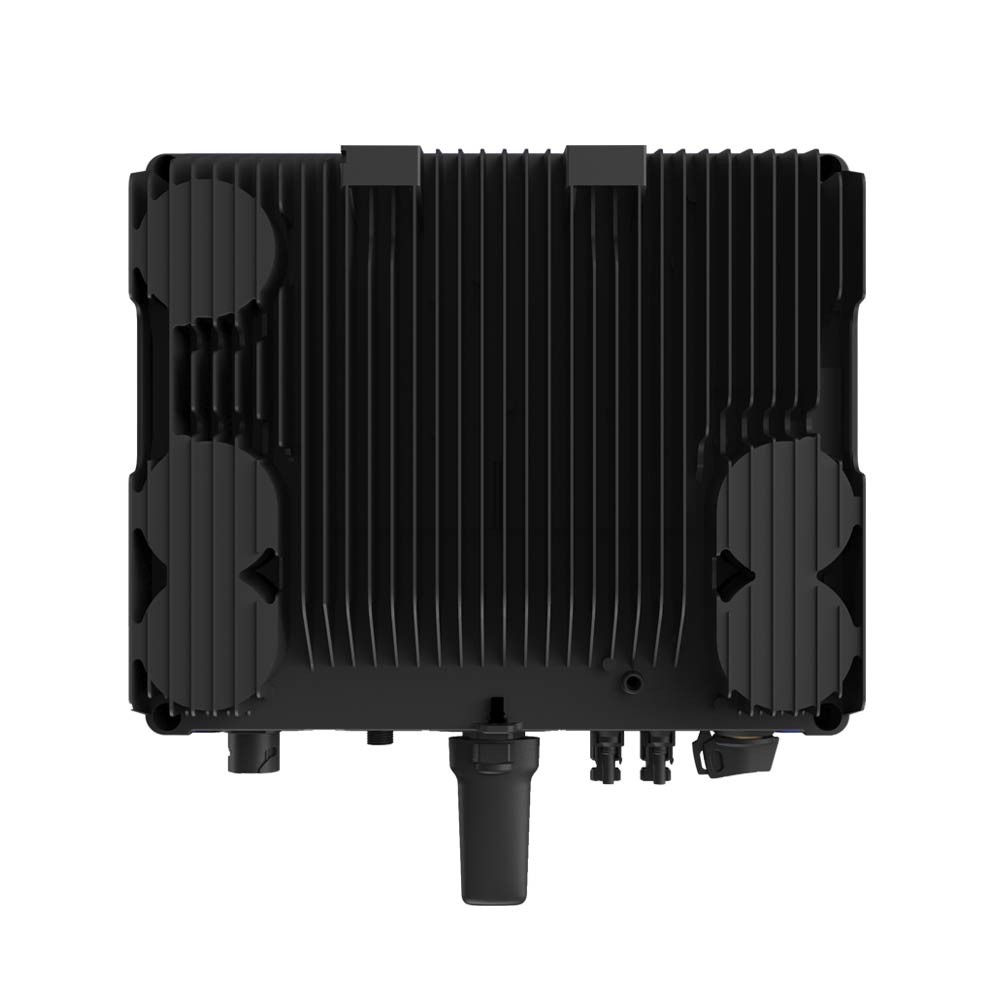

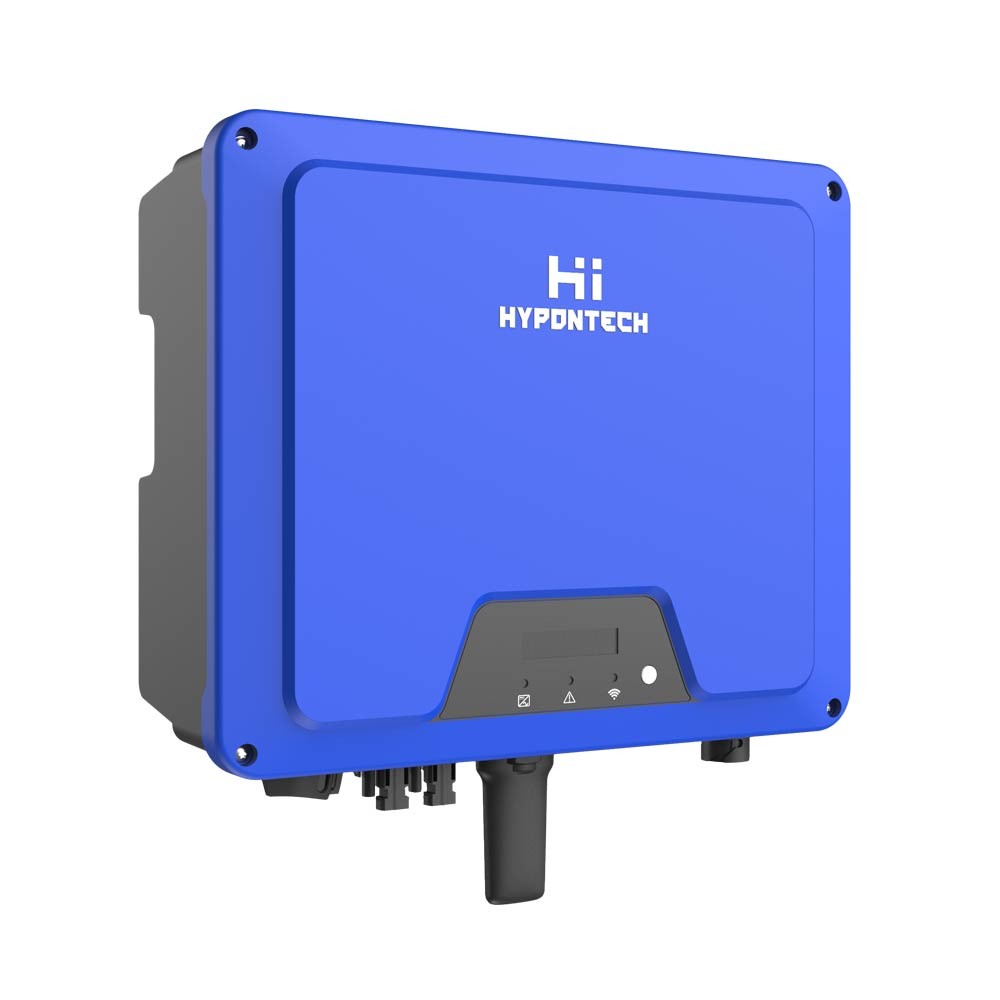

Hypontech HPT-3000 inverter is a modern and reliable device that quickly responds to changing conditions on both the DC and mains sides. The HPT-3000 is great for solar rooftop installations and small ground-mounted installations. The IP65 rating allows operation outdoors and in adverse weather conditions.

Product’s distinguishing characteristics:

• Maximum efficiency: 98%
• A wide range of supply voltages on the DC side
• Two independent MPPT inputs
• Short-term overloading of up to 50% on the DC side
• Ambient temperature range: -25 + 60 degrees C
• Low weight of the device
• Very quiet operation: passive cooling
• Optional anti-theft device protection
• Anti-islanding protection and reverse polarity protection

Operation and installation:

• Easy to install and remove with the dedicated bracket
• Built-in DC load switch

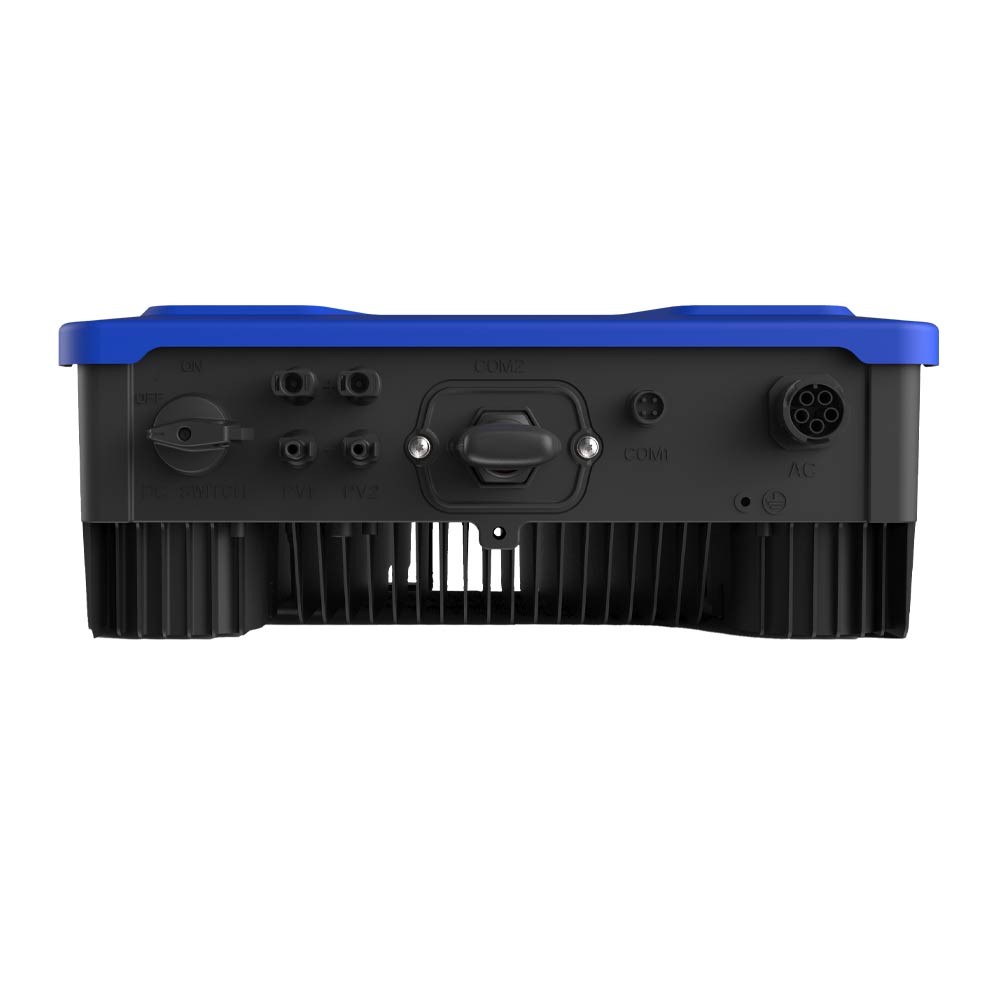

• Connections accessible without opening the housing
• RS485 communication, WiFi. GPRS optional
• Protection level: IP65
• Stainless, aluminium, lightweight housing
• Dimensions: 425 x 351 x 160 mm
• Weight: 13.7 kg
• English-language technical support

Operation:

• Intuitive and functional application for iOS and Android in Polish
• Clear data presentation on an LCD display
• Possibility of remote configuration of inverter operation
• Data reading on the Polish-language portal Hiportal
• Remote fault reporting, remote maintenance
• Noise level: 20 db
• 12-year warranty
