Grid inverters

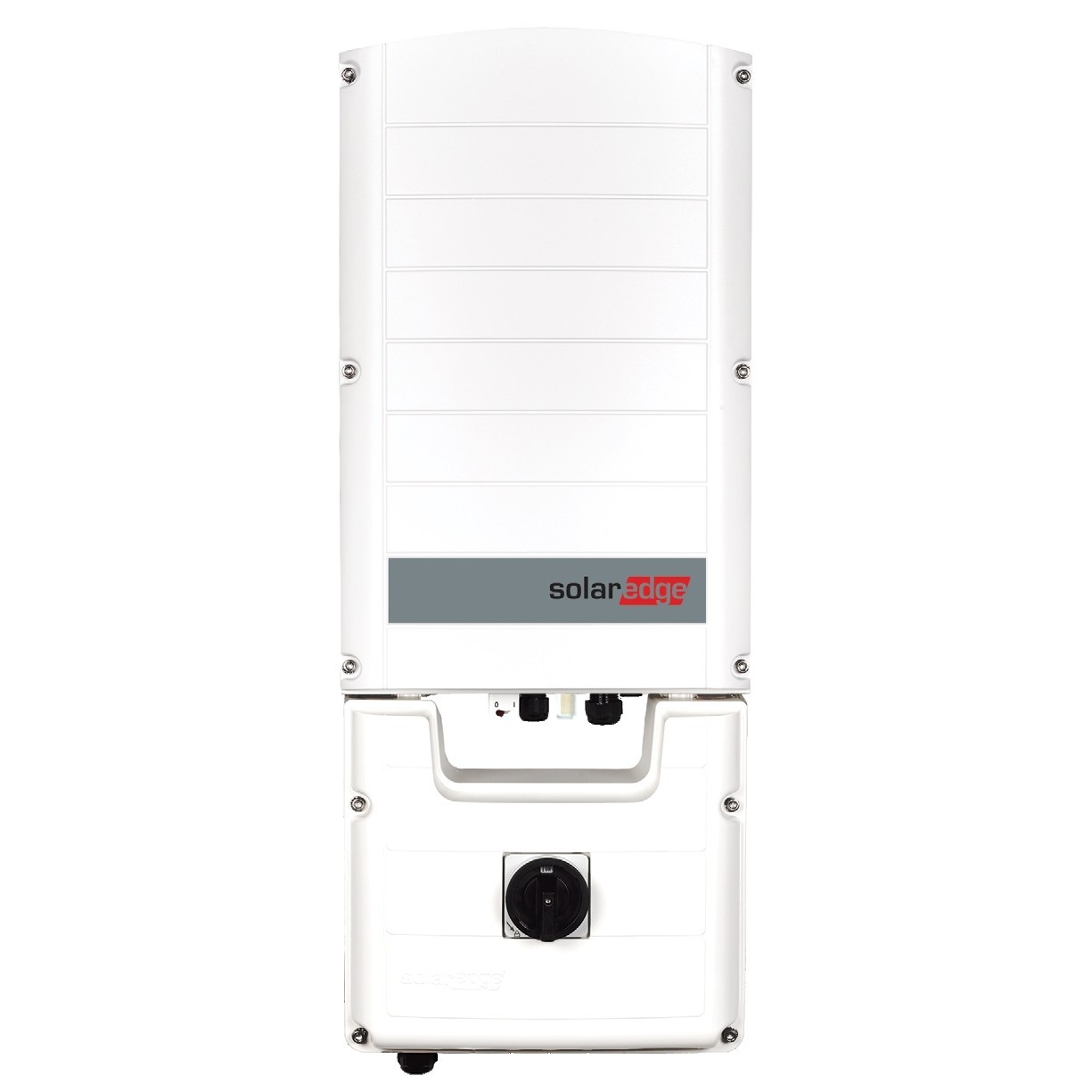

Solar inverter SE33.3K-RW00IBNM4 33,3 kW SolarEdge

Manufacturer: SolarEdge

INDEX: SE33.3K-RW00IBNM4

Product number: SE33.3K-RW00IBNM4
Product information "Solar inverter SE33.3K-RW00IBNM4 33,3 kW SolarEdge"

SolarEdge inverters are aimed at a wide range of energy market segments thanks to their diverse range, which makes them an attractive choice for every customer. Products of this brand are characterized by high efficiency, easy installation, and up to 12-year standard warranty with the possibility of extending it to 20 or 25 years.

The SolarEdge SE33.3K three-phase inverter combines advanced digital control technology with efficient power conversion technology to achieve the highest level of solar power generation and best-in-class reliability. The technology used in this product ensures that the inverter always operates at the optimal input voltage, regardless of the number of modules in the string or environmental conditions.

The SolarEdge SE33.3K is a three-phase inverter that is ideal for roof installations and small to medium-sized photovoltaic power plants. It can be also installed outside the building.

Distinguishing features of the product:

  • Maximum efficiency: 98,3%
  • Specially designed to work with power optimizers
  • Constant voltage inverter for longer strings
  • Control by means of a smart energy management system
  • Ambient temperature range: from -40°C to +60°C

Operation and installation:

  • Small, lightest in its class, simple to install
  • Integrated monitoring at module level
  • Communication 2 x RS485, Ethernet, Wi-Fi (requires an antenna), GPRS optional
  • Protection rating: IP65
  • Compatibility with PVSol
  • Polish-language technical support
  • Dimensions: 317 x 550 x 273 mm

Use:

  • Quick and easy startup of the inverter directly from your smartphone using SolarEdge SetApp
  • Advanced safety features, including integrated protection against arc short circuits
  • LED signaling
  • No external fan - noise level (62 dB) adapted to work at home
  • Weight: 32 kg
  • 12-year warranty
General features:
Communication type: Ethernet, RS485, GSM 2G, WiFi
Weight [kg]: 36.5
Dimensions [mm]: 0.0 x 0.0 x 0.0
DC parameters:
Max. voltage [V]: 1000
Max. current [A]: 48.25
AC parameters:
Power [W]: 33300
Feed-in phases: 3
Max. output current [A]: 48.25
Efficeincy:
Euro efficiency [%]: 98
Max. efficiency [%]: 98.3
Solaredge:
GroupOfInverters SEForPowerOptimizers: B
