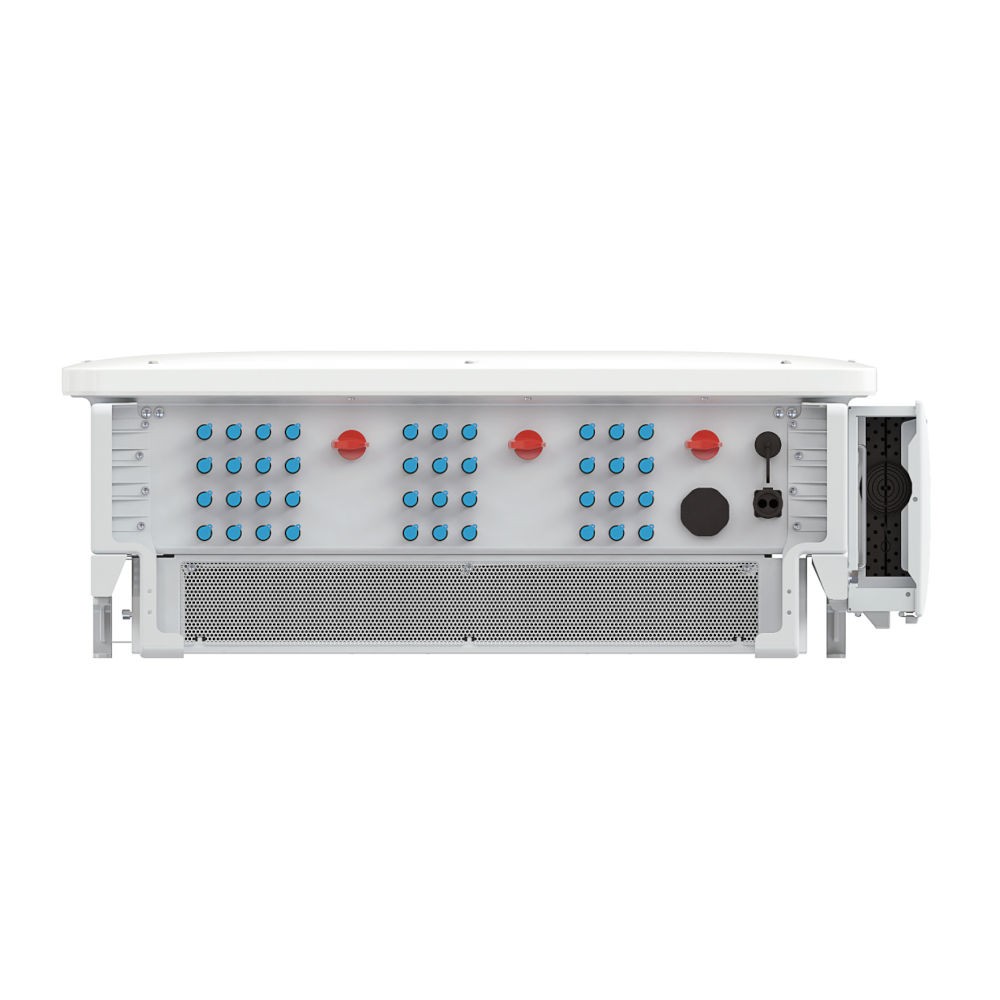

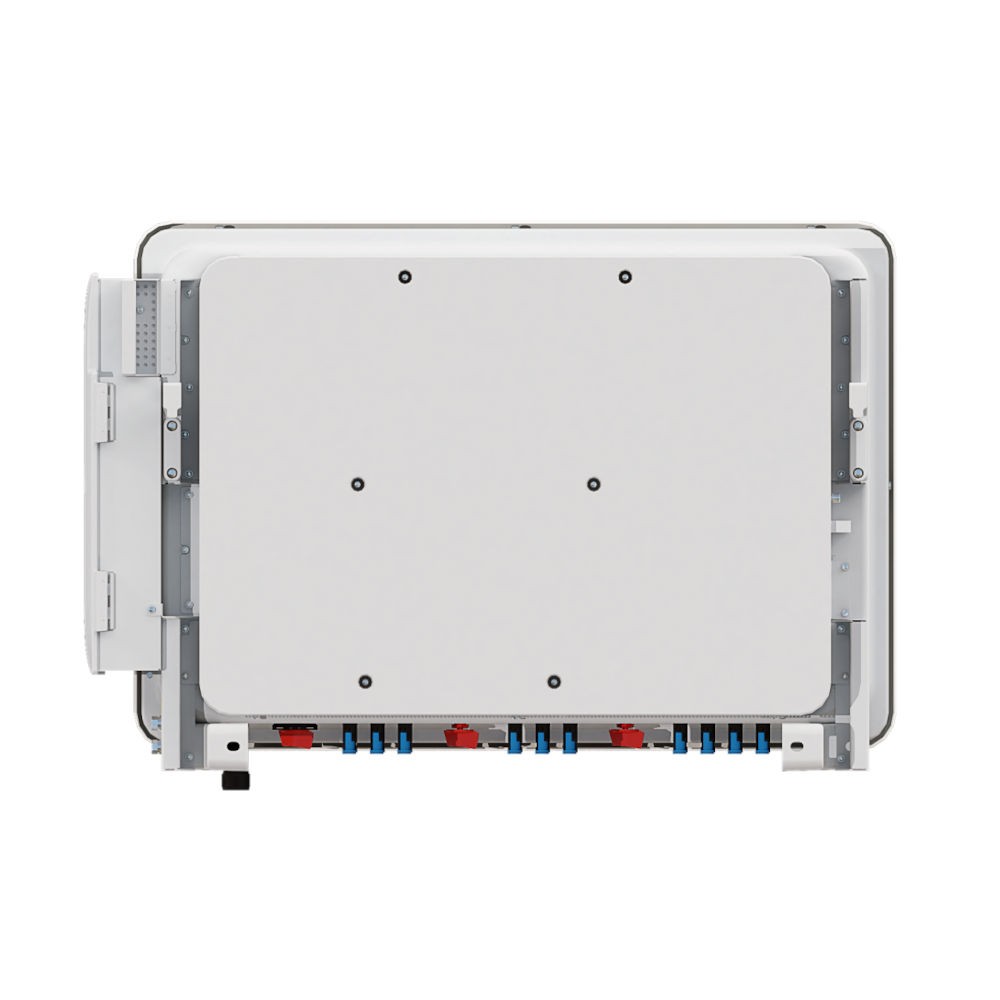

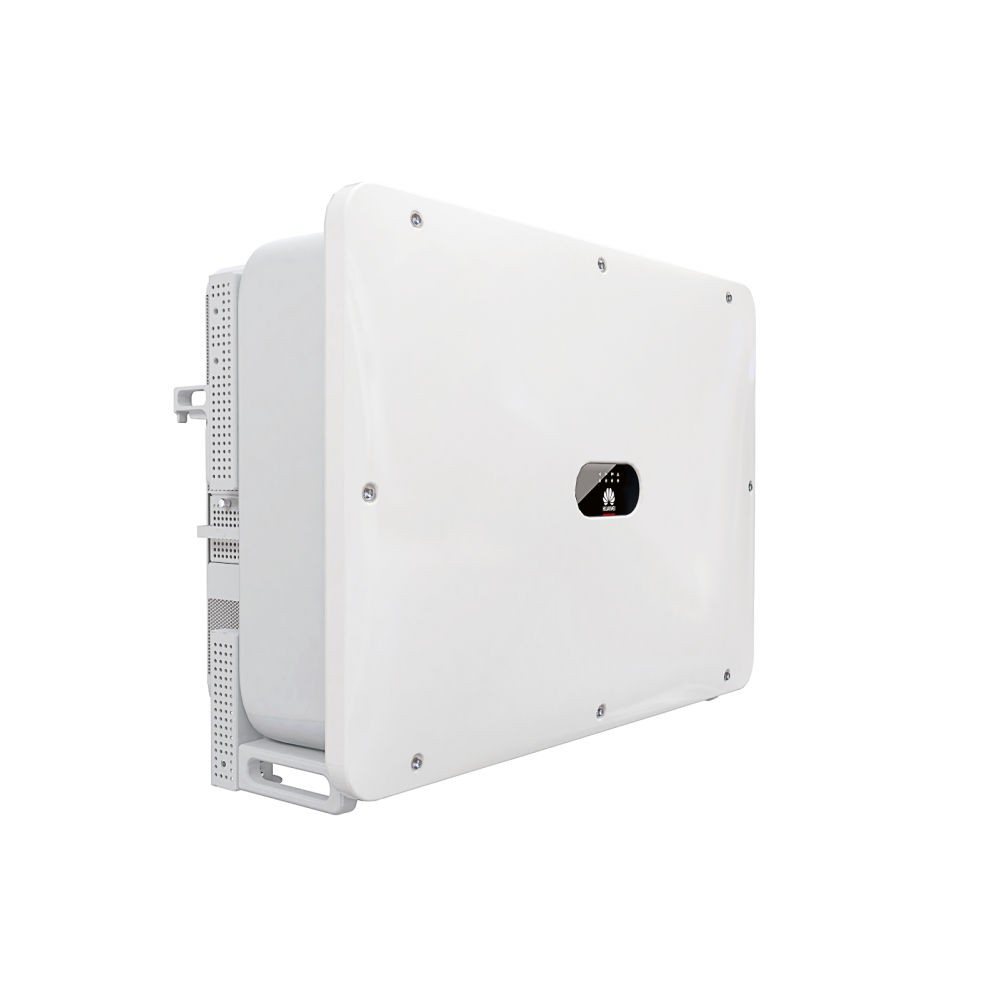

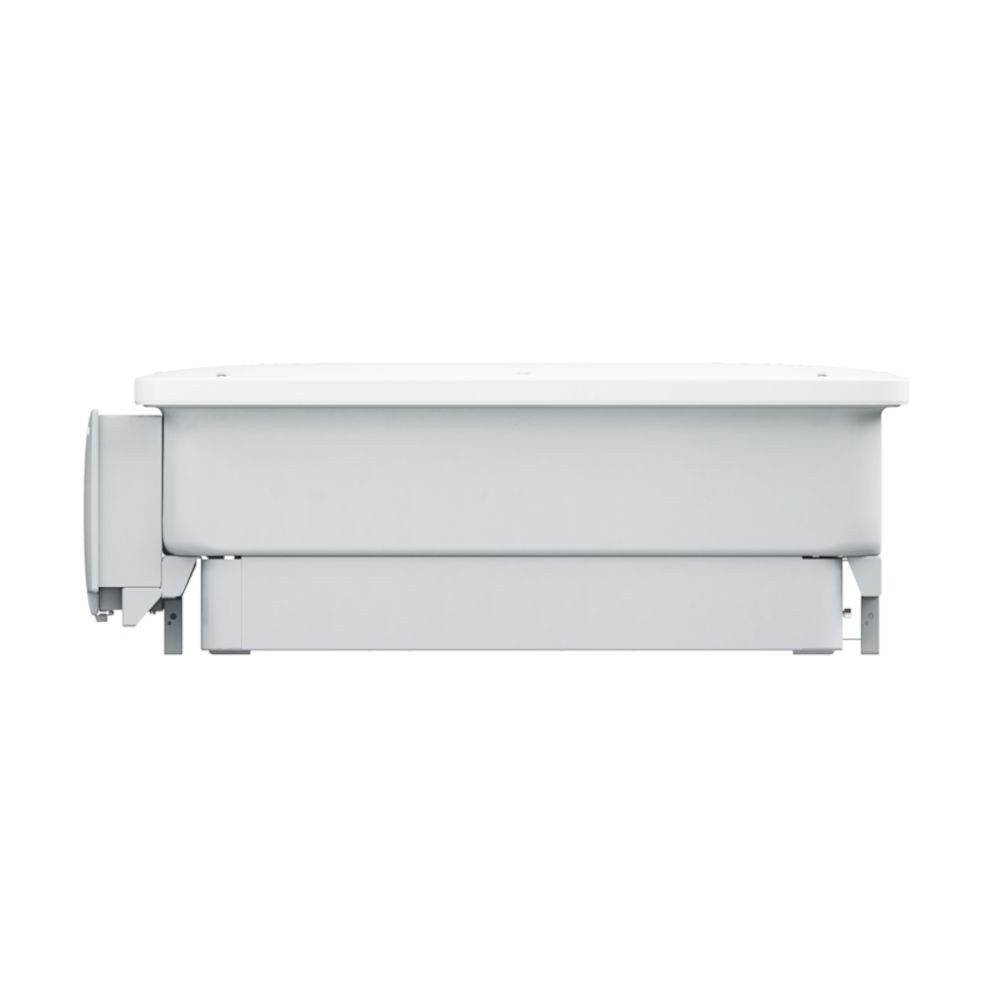

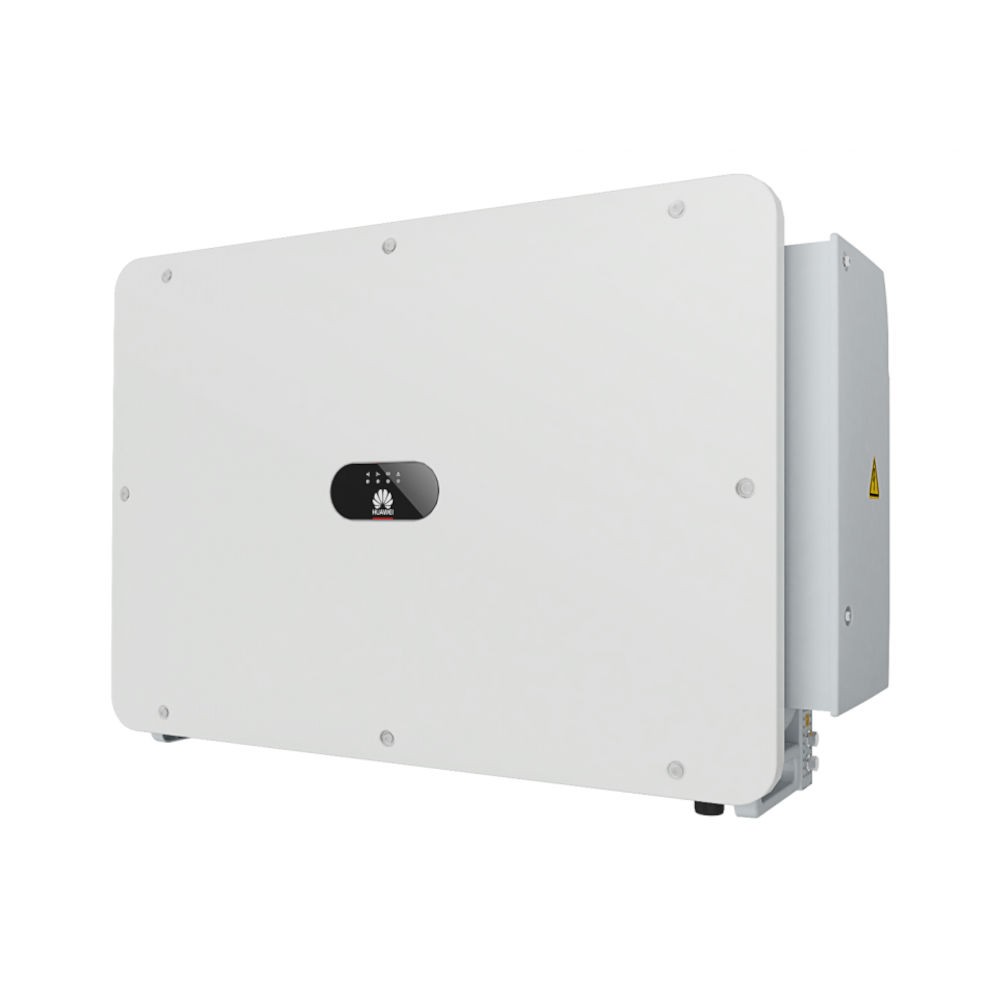

Solar inverter Sun2000-115KTL-M2 3F Huawei
Manufacturer: Huawei
INDEX: SUN2000-115KTL-M2
Huawei SUN2000-115KTL-M2 series inverters are solar inverters designed to maximize the energy efficiency of PV systems installed on both roofs and on the ground. Also for industrial applications.
Technically, the inverters work with a three-phase grid, which is an optimal solution for both the power grid and for direct consumers of electricity in households. AI-based technology, smart monitoring, it quickly detects errors and reduces the time needed to locate and repair faults. The inverter provides maximum efficiency of up to 98.8% and is equipped with advanced ten MPPT systems with the possibility of connecting 20 PV strings, which optimizes the amount of electricity generated.
Distinguishing features:
- Maximum efficiency 98.8%
- Input voltage range 200 to 1000 V
- 10 MPPTs, 20 PV strings
- Grounding failure protection
- AFCI
- Built-in leakage current monitoring system
- Smart PV string monitoring, fast fault detection
- String-level management and optimization
- Remote diagnostics of I-V curve of all strings
- Ambient temperature range: -25°C to +60°C
- LED status indication
- Passive cooling
Operation and installation:
- Easy assembly and disassembly with mounting brackets
- Two DC disconnectors, 6 strings each
- DC polarity reversal protection
- Built-in AC and DC-side surge protection type II
- Communication via RS 485 and optional 4G
- IP66 rating
- Dimensions 1035 x 700 x 365 mm
Use:
- Touch-free inverter operation
- Application for configuration and monitoring
- LED indicator on the housing
- Quiet operation
- Remote technical support
- 5-year warranty
| Dimensions WxHxD [mm]: | 1035 x 700 x 365 |
|---|---|
| Communication type: | RS485, USB, LTE 4G i starsze - opcjonalnie |
| Weight [kg]: | 90 |
| Dimensions [mm]: | 700.0 x 1035.0 x 365.0 |
| Maximum short-circuit current per MPPT [A]: | 40 |
|---|---|
| Max. voltage [V]: | 1100 |
| Min. MPPT voltage [V]: | 200 |
| Max. MPPT voltage [V]: | 1000 |
| Initial feed-in voltage [V]: | 200 |
| Max. current [A]: | 30 |
| Number of MPPT inputs: | 10 |
| Power [W]: | 115000 |
|---|---|
| Feed-in phases: | 3 |
| Euro efficiency [%]: | 98.6 |
|---|---|
| Max. efficiency [%]: | 98.8 |
