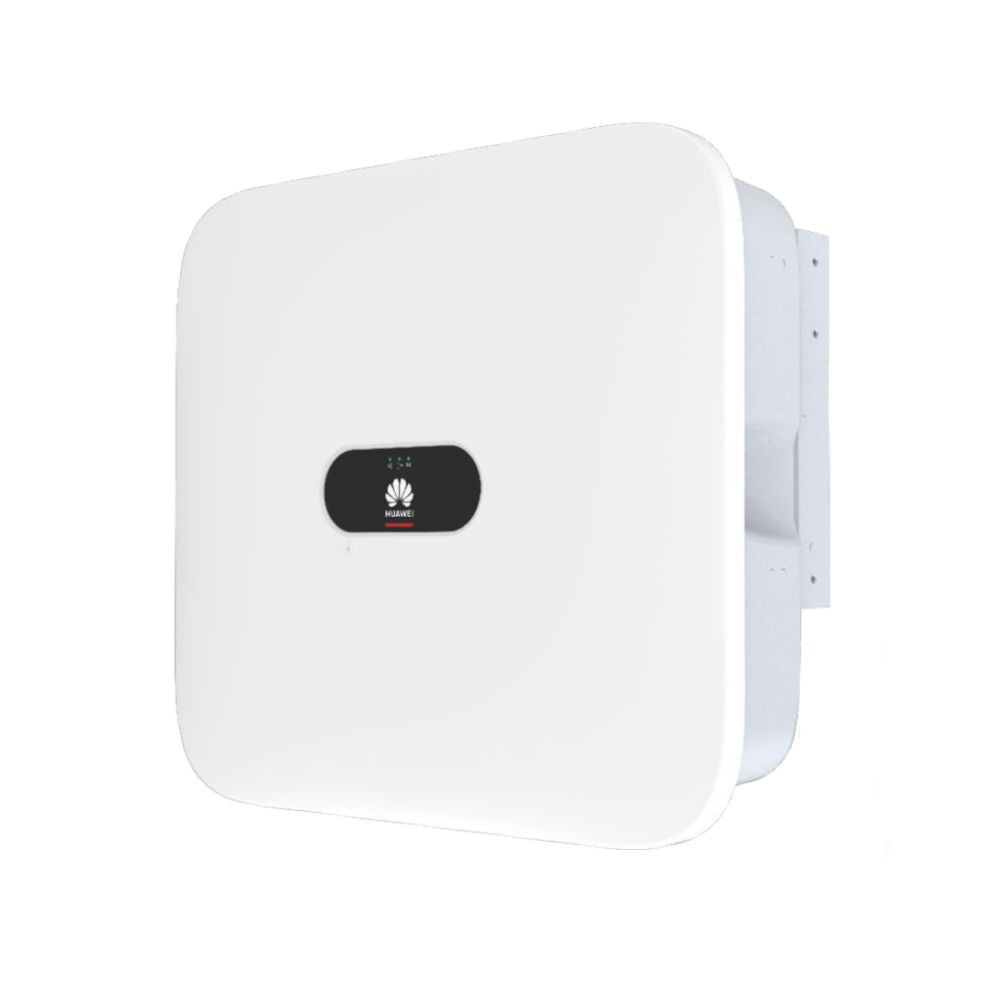

Solar inverter SUN2000-15KTL-M5 3F Huawei
Manufacturer: Huawei
INDEX: SUN2000-15KTL-M5
Huawei SUN2000 M5 series inverters are solar inverters designed to maximize the energy efficiency of PV systems installed on both roofs and on the ground. The M5 model has a protection rating increased to IP66.
Technically, the inverters work with a three-phase grid, which is an optimal solution for both the power grid and for direct consumers of electricity in households. The AI-based technology actively protects against electric arc (AFCI) and precisely indicates where it occurs. The inverter provides a maximum efficiency of up to 98.4%.
Distinguishing features:
- Maximum efficiency 98.4%
- Input voltage range 200 to 1000 V
- Built-in leakage current monitoring system
- Smart detection of electric arcs reduces the risk of fire (AFCI)
- Counteracting PID
- Ambient temperature range: -25°C to +60°C
- LED status indication
- Passive cooling
Operation and installation:
- Easy assembly and disassembly with mounting brackets
- DC reverse polarity protection
- Built-in AC and DC-side surge protection type II
- Built-in overcurrent and short-circuit protection on AC side
- Batteries can be connected directly
- Communication via RS 485. LAN/WLAN and GSM 4G via Smart Dongle-4G - optional
- IP66 rating
- Dimensions 546 x 460 x 228 mm
Use:
- Touch-free inverter operation
- Application for configuration and monitoring
- LED indicator on the housing
- Quiet operation
- Remote technical support
- 10-year warranty
| Dimensions WxHxD [mm]: | 546 x 460 x 228 |
|---|---|
| Communication type: | RS485, WiFi, LTE 4G i starsze - opcjonalnie, Ethernet optional |
| Weight [kg]: | 21 |
| Dimensions [mm]: | 546.0 x 460.0 x 228.0 |
| Maximum short-circuit current per MPPT [A]: | 40 |
|---|---|
| Max. voltage [V]: | 1100 |
| Min. MPPT voltage [V]: | 410 |
| Max. MPPT voltage [V]: | 800 |
| Initial feed-in voltage [V]: | 200 |
| Max. current [A]: | 30 |
| Number of MPPT inputs: | 2 |
| Power [W]: | 15000 |
|---|---|
| Feed-in phases: | 3 |
| Max. output current [A]: | 23.9 |
| Euro efficiency [%]: | 98 |
|---|---|
| Max. efficiency [%]: | 98.4 |
