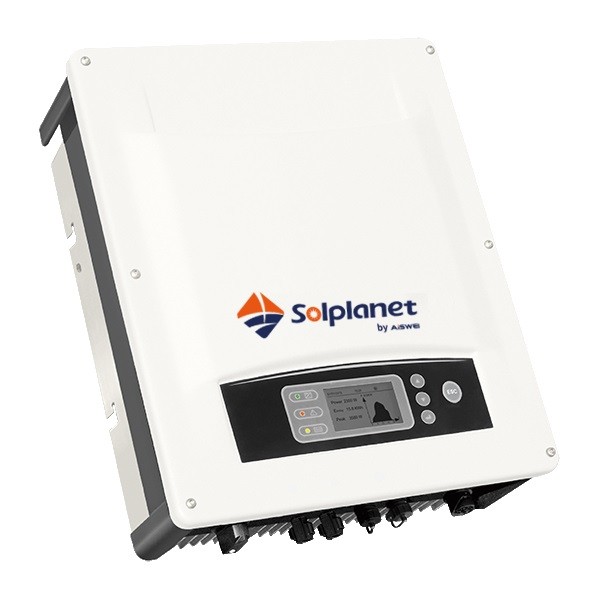

With their wide input voltage range and different power classes, the Solplanet ASW TLC series inverters are suitable for almost all types of PV generators. These devices operate in the power range of 3–10 kW, in a three-phase grid, and are equipped with two MPP Trackers.

PV installations based on AISWEI Solplanet ASW TLC inverters are easy to configure, all key parameters are shown directly on the device’s display in graphical form, and thanks to the use of two MPP Trackers, it is possible to achieve optimal efficiency of the entire system.

Distinguishing features of the product:

• Multiple tracking of maximum power point
• IP65 rating
• Easy installation and maintenance
• RS485 and Modbus RTU communication
• Optional integrated Ethernet and Wi-Fi communication
• Network management functions via integrated ComBox, AiCom, AiCom Wi-Fi, or AiManager
• Quiet operation, noise level below 40 dB

Important technical data:

• Rated power: 4 kW
• Maximum efficiency: 98%
• Phases: 3
• MPP Tracker: 2
• Permissible temperature range: -25°C ~ +60°C
• Warranty: 10 years
• Optional integrated Ethernet and Wi-Fi communication
• Maintenance service: Poland
• Polish user manual
• Dimensions: 405 x 498 x 222 mm

APPLICATION

The wide voltage and power range of the Solplanet series allows you to flexibly adapt PV generators to specific tasks. It is perfect for installations intended for home, commercial, and industrial applications.

MOUNTING

The ASW TLC is designed for convenient, safe installation and operation.

• Compact housing
• Mounting without opening the cover
• IP65 rating for outdoor installation
