Surge arrester 1000V type 1+2 Phoenix
Manufacturer: PHOENIX CONTACT
INDEX: 2801160
Product information "Surge arrester 1000V type 1+2 Phoenix"

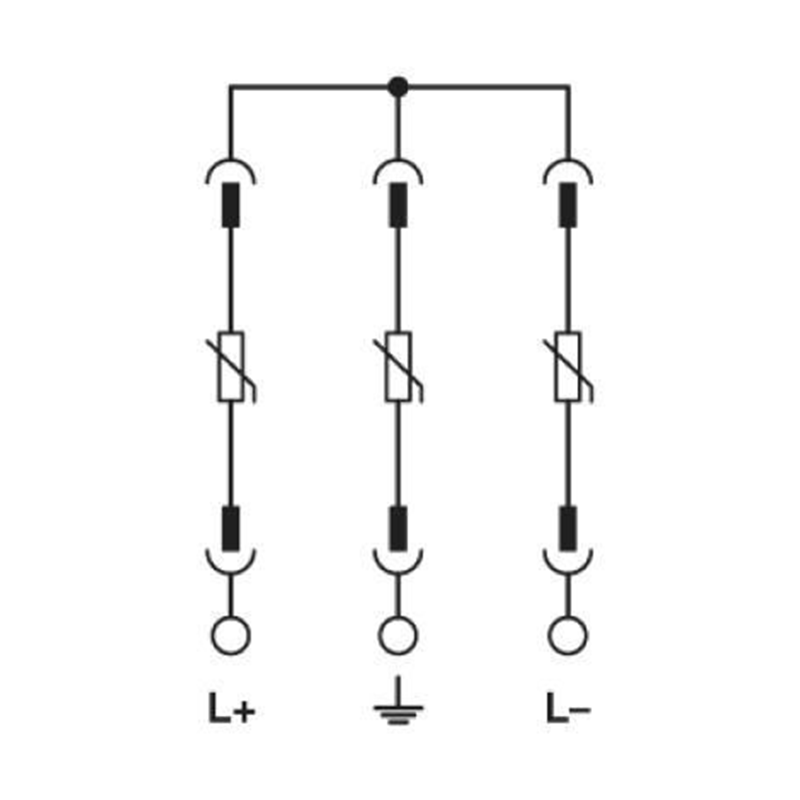

Surge arrester for 2-pole insulated and earthed systems of 1000 V DC, for mounting on a support rail, 3-pole base, three plug-in protection components with thermal control, status indicator on each plug.
Distinguishing features of the product:
- Increased safety through the use of EN 50539-11
- Safe contact thanks to integrated swivel bolt
- Easy replacement thanks to plug-in stops
- Optimal protection of the charger due to low protection level
- Intentional replacement of damaged plugs thanks to the optical status indicator
- Protection against accidental plugging in by coded plugs and bases
General features:
| Width - number of modules: | 3 |
|---|---|
| Weight [kg]: | 0.4 |
| Dimensions [mm]: | 60.0 x 107.0 x 80.0 |
Electrical characteristics:
| DC protection type: | DC Surge arrester |
|---|---|
| Max. voltage [V]: | 1000 |
