Surge arrester Combo 1200 V type 1+2 Dehn

Manufacturer: DEHN

INDEX: 900070

Product number: 900070
Product information "Surge arrester Combo 1200 V type 1+2 Dehn"

The DEHN Combo 1200 V type 1+2 (varistor) is a two-pole combined surge arrester for universal use in earthed and non-earthed photovoltaic installations up to 1200 V DC.

Distinguishing features of the product:

Type 1 + type 2 surge arrester

Connection system Y to protect the arrester

Compact 4-module wide design

Meets the requirements of PN-EN 50539-11

Compliant with PN-HD 60364-7-712

Action/damage indicator in the control window

Electrical characteristics:
DC protection type: DC Surge arrester
Max. voltage [V]: 1200
General features:

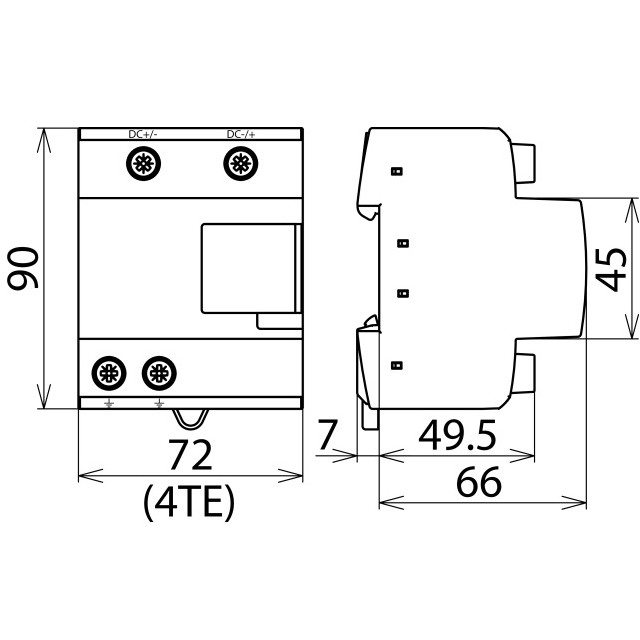

Dimensions WxHxD [mm]: 72 x 90 x 73
Width - number of modules: 4
