Surge arrester DEHNguard M YPV SCI 1000 Dehn
Sold out
Manufacturer: DEHN
INDEX: 952510
Product information "Surge arrester DEHNguard M YPV SCI 1000 Dehn"
DEHNguard M YPV SCI 1000 - Modular multipole surge arrester with three-step d.c. switching device for use in PV systems
Features that distinguish the product:
- Type 2 surge arrester
- Prewired modular complete unit for use in photovoltaic systems consisting of a base part and plug-in protection modules
- Combined disconnection and short-circuiting device with safe electrical isolation in the protection module (patented SCI principle)

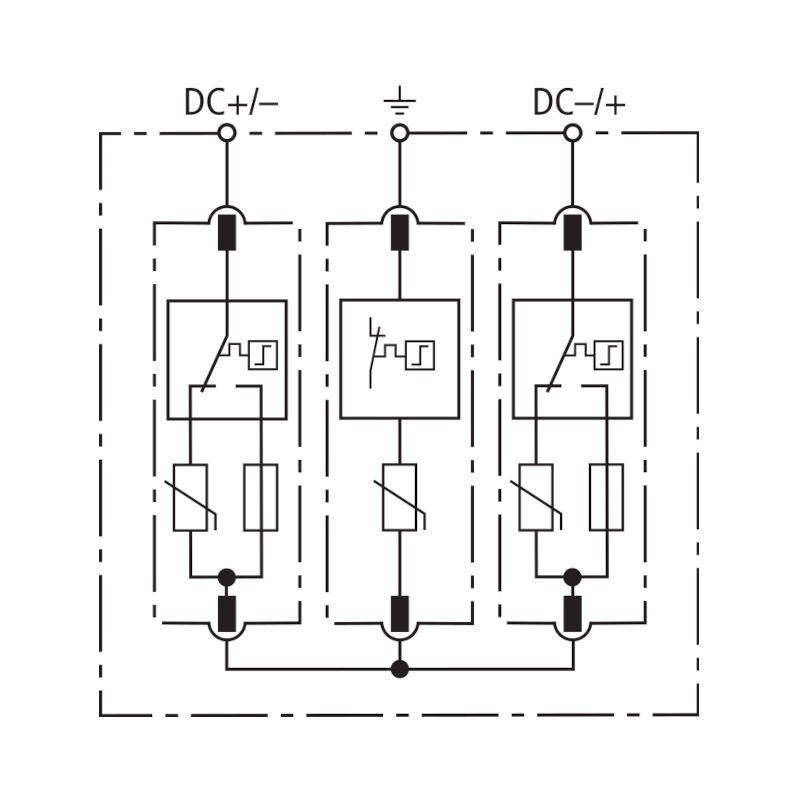

- Tried and tested fault-resistant Y circuit
- Suitable for use in all PV systems according to IEC 60364-7-712
- Operating state / fault indication
- Tested to EN 50539-11
General features:
| Width - number of modules: | 3 |
|---|---|

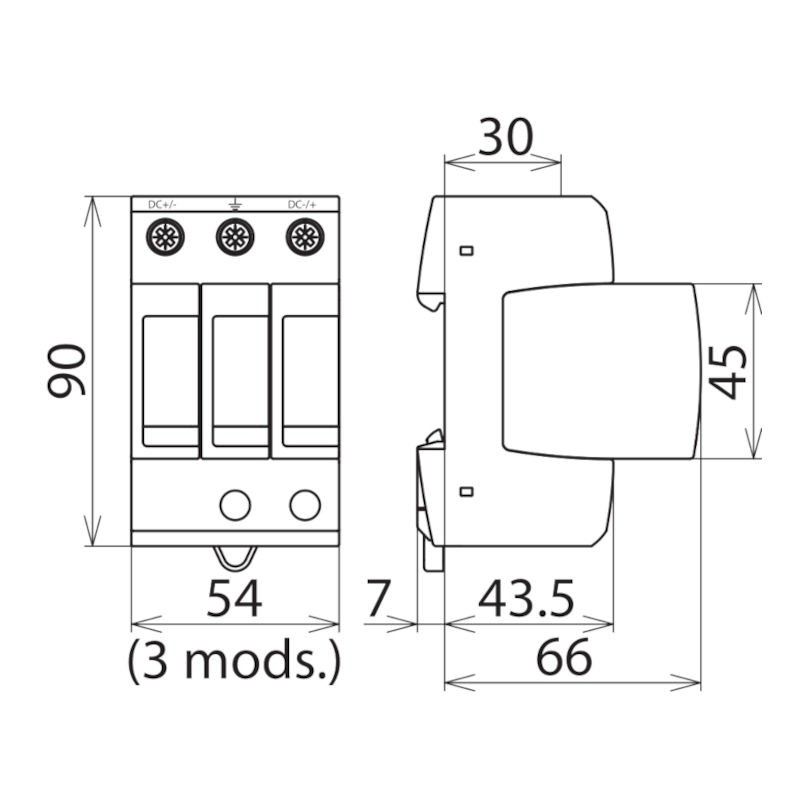

| Dimensions [mm]: | 54.0 x 90.0 x 73.0 |
Electrical characteristics:
| DC protection type: | DC Surge arrester |
|---|---|
| Max. voltage [V]: | 1000 |
