AC Circuit protectors
Surge arrester VAL-MS 230/3+1 type 2 Phoenix
Manufacturer: PHOENIX CONTACT
INDEX: 2838209
Product information "Surge arrester VAL-MS 230/3+1 type 2 Phoenix"

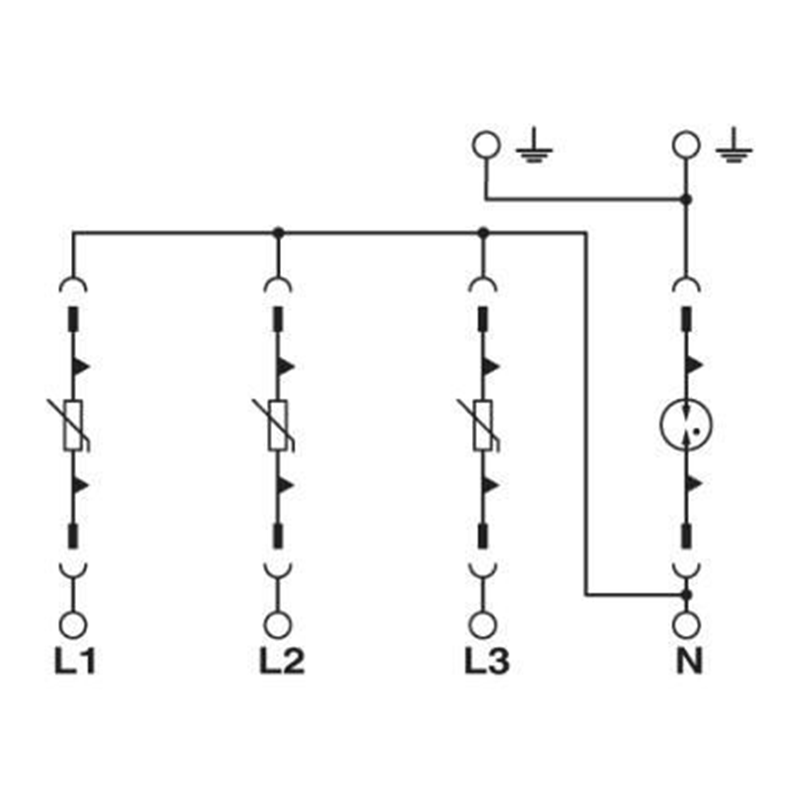

Surge arrester consisting of a base and protective plugs, to be mounted on NS 35/7.5 rail, rated voltage: 230 V AC, 3 + 1.
Distinguishing features of the product:
- Optional potential-free remote communication contact
- Type 2 multi-channel arrester
- Optical, mechanical status indicator for individual arresters
- Separation device on each single plug
- Mechanical coding of all plug-in connectors
- Fully plug-in type 2 surge arresters
Electrical characteristics:
| AC protection type: | AC surge arrester |
|---|---|
| Max. current [A]: | 20000 |
| Feed-in phases: | 3 |
General features:
| Width - number of modules: | 4 |
|---|---|

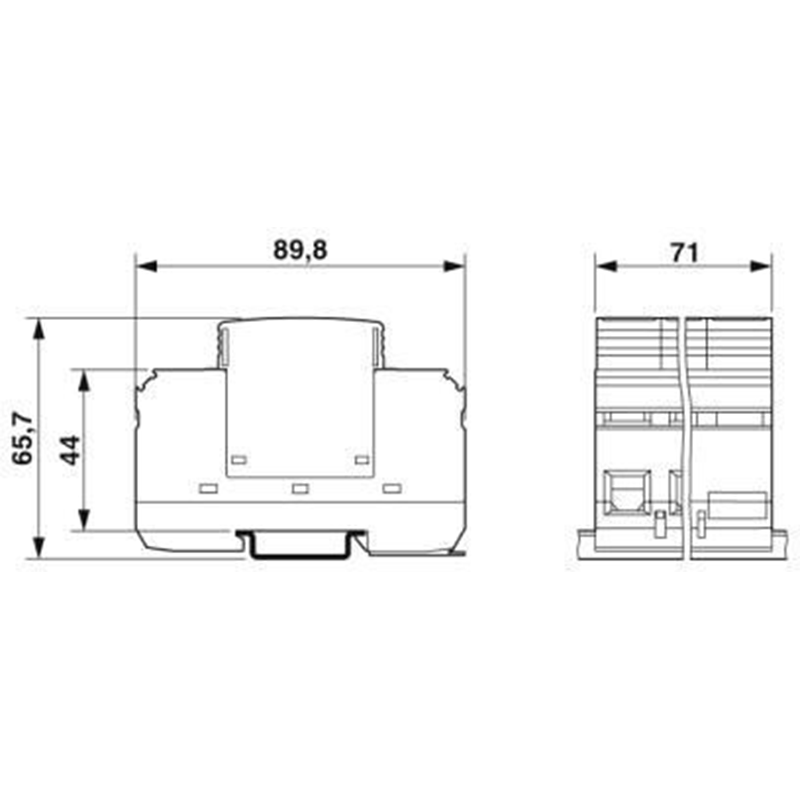

| Dimensions WxHxD [mm]: | 71 x 89.8 x 65.7 |
