Accessories for battery storage

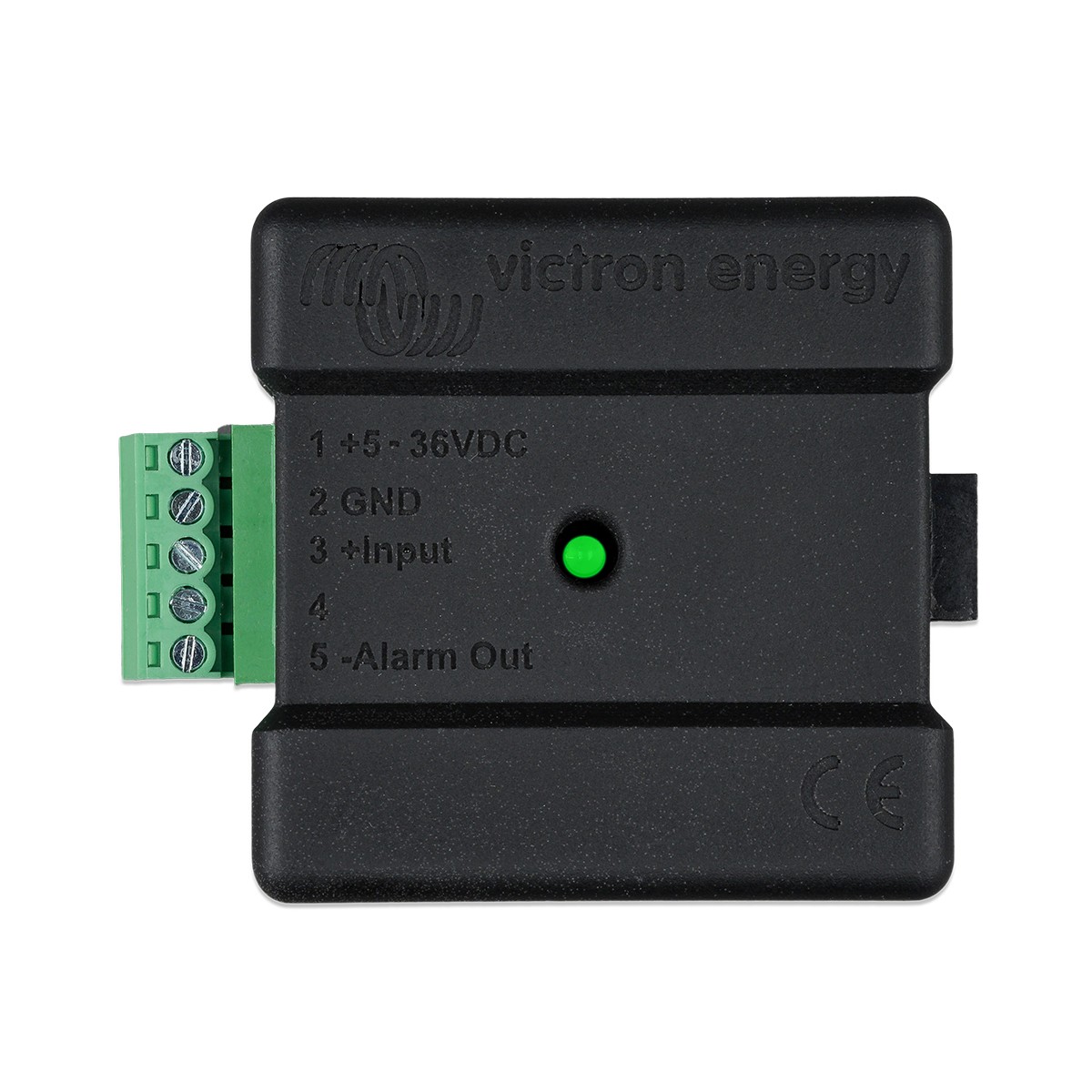

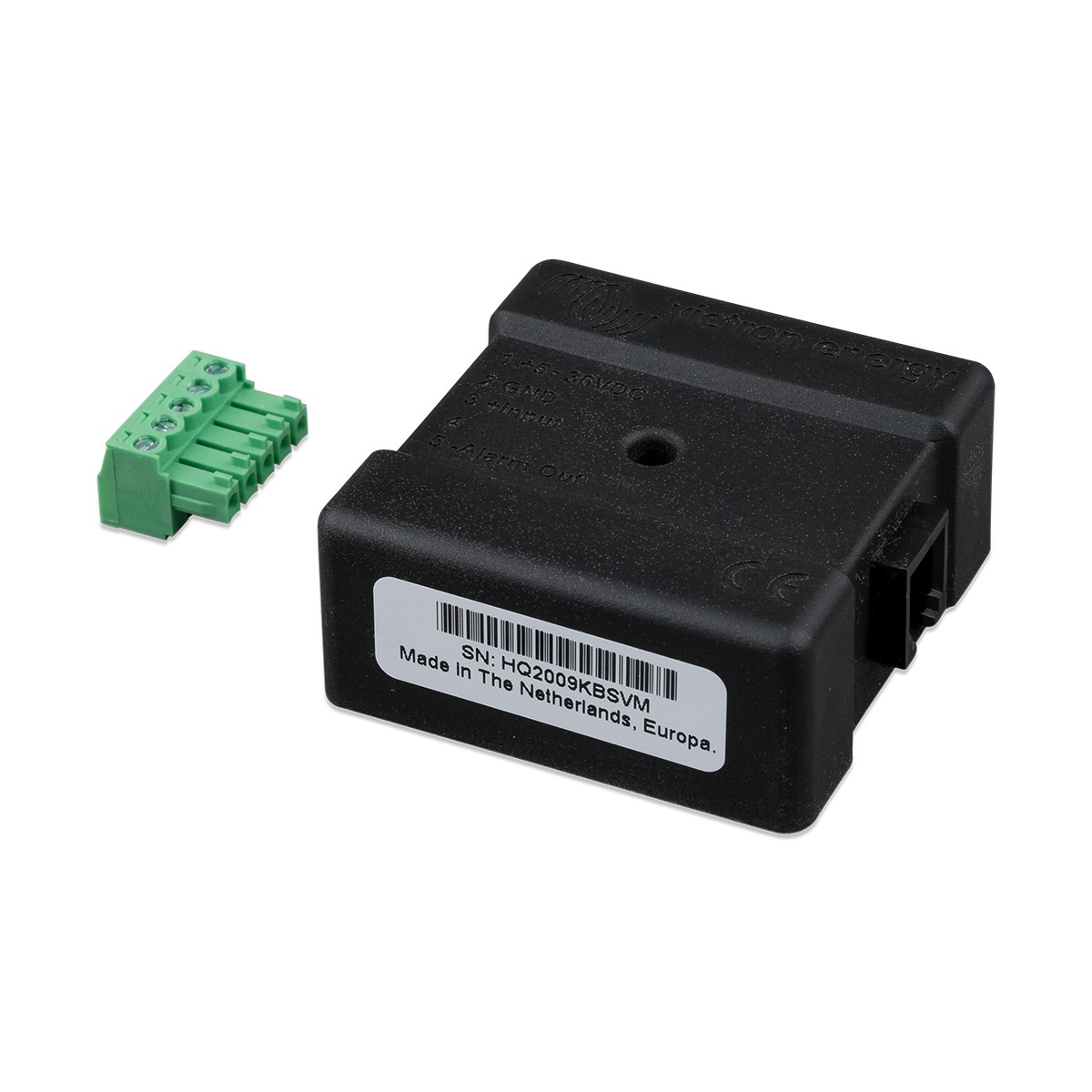

Temperature sensor CAN-bus Victron Energy
Manufacturer: Victron Energy
INDEX: ASS000200100
The CAN-bus Temp. Sensor is a battery temperature sensor for the Buck-Boost DC/DC converter range and is an essential accessory when the Buck-Boost DC/DC converter is connected to a LFP lithium battery. Temperature sensing is needed when LFP lithium batteries are charged at low temperatures. The charge current to a lithium battery has to be reduced once the battery temperature drops below 5 degrees and the charge current has to stop when the temperature drops below zero.
The CAN-bus Temp. Sensor takes care of this. It measures the lithium battery temperature and sends this to the Buck-Boost DC/DC converter. The Buck-Boost DC/DC converter will reduce or stop charge when the battery temperature drops too low.
In addition to this, the CAN-bus Temp. Sensor can also be connected to the temperature sensor terminal in a MultiPlus or Quattro, so the Multi or Quattro can reduce or stop charging when the battery temperature drops too low.
Distinguishing features of the product:
- Battery temperature monitoring
- Supply voltage 4 - 36 V DC
- Electricity consumption 60 mA (@13.6 V)
- Output to switch off heavy user
- LED status indicators
- CAN.bus for control purposes and Buck-boost converter and/or Quattro, MultiPlus and Venus GX
- Alarm output
| Type: | Sensors |
|---|---|
| Dimensions [mm]: | 0.0 x 0.0 x 0.0 |
